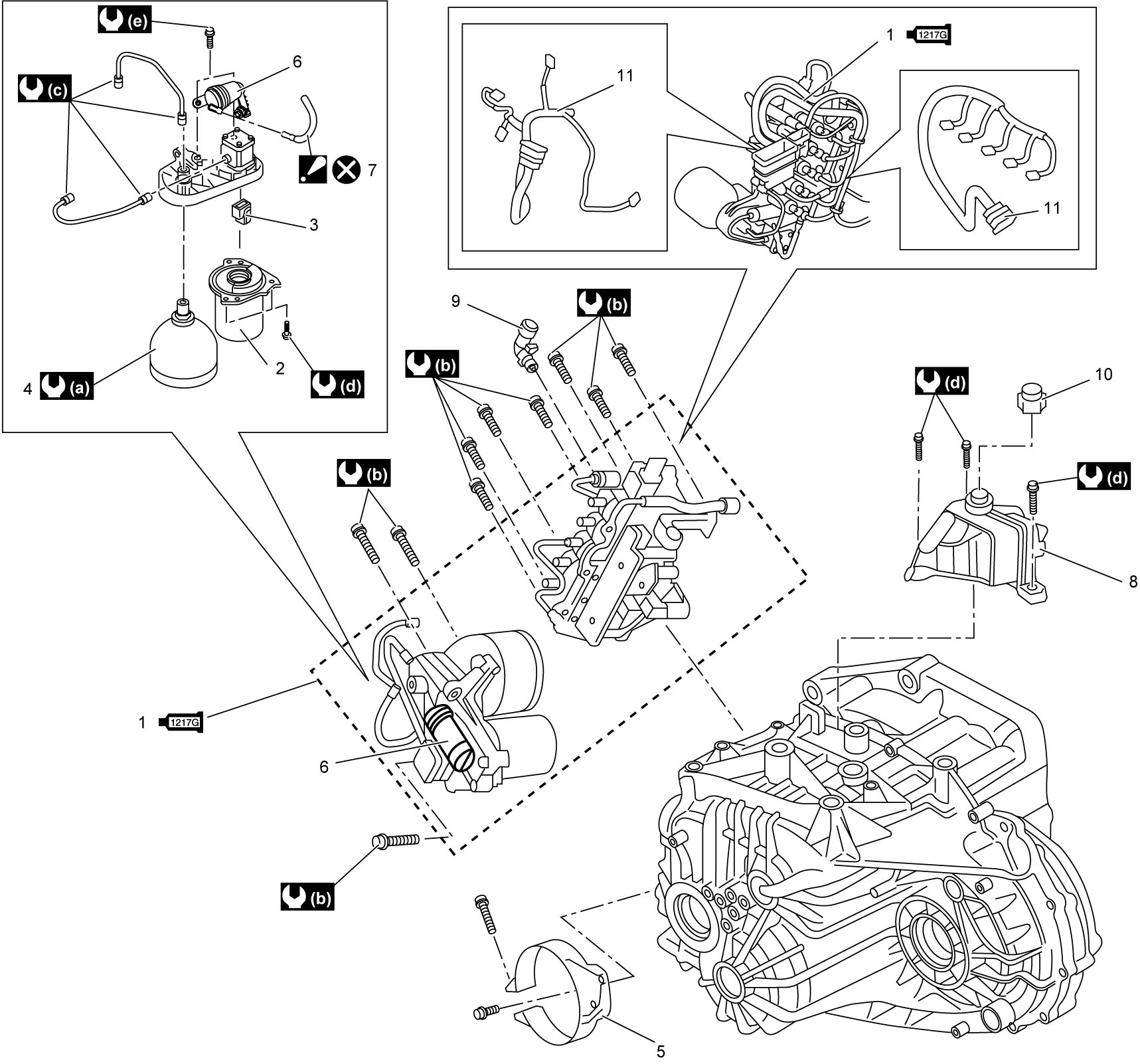

Solenoid Valve Unit Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
 1. |
Solenoid valve unit : Apply sealant 99000-31260 to mating surface of solenoid valve unit and left case. |
 7. |
Hydraulic system filter oil pipe After replacing, perform TCM and Clutch Initialization. |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
| 2. | Electric motor | 8. | Hydraulic actuator fluid reservoir |
 : |
18 N·m (1.8 kgf-m, 13.5 lbf-ft) |
| 3. | Electric motor joint | 9. | Breather plug |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 4. | Accumulator | 10. | Twin clutch system actuation fluid reservoir cap |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 5. | Accumulator band | 11. | Twin clutch system unit wire |
 : |
Do not reuse. |
| 6. | Hydraulic system filter |
 : |
110 N·m (11.2 kgf-m, 81.5 lbf-ft) |
