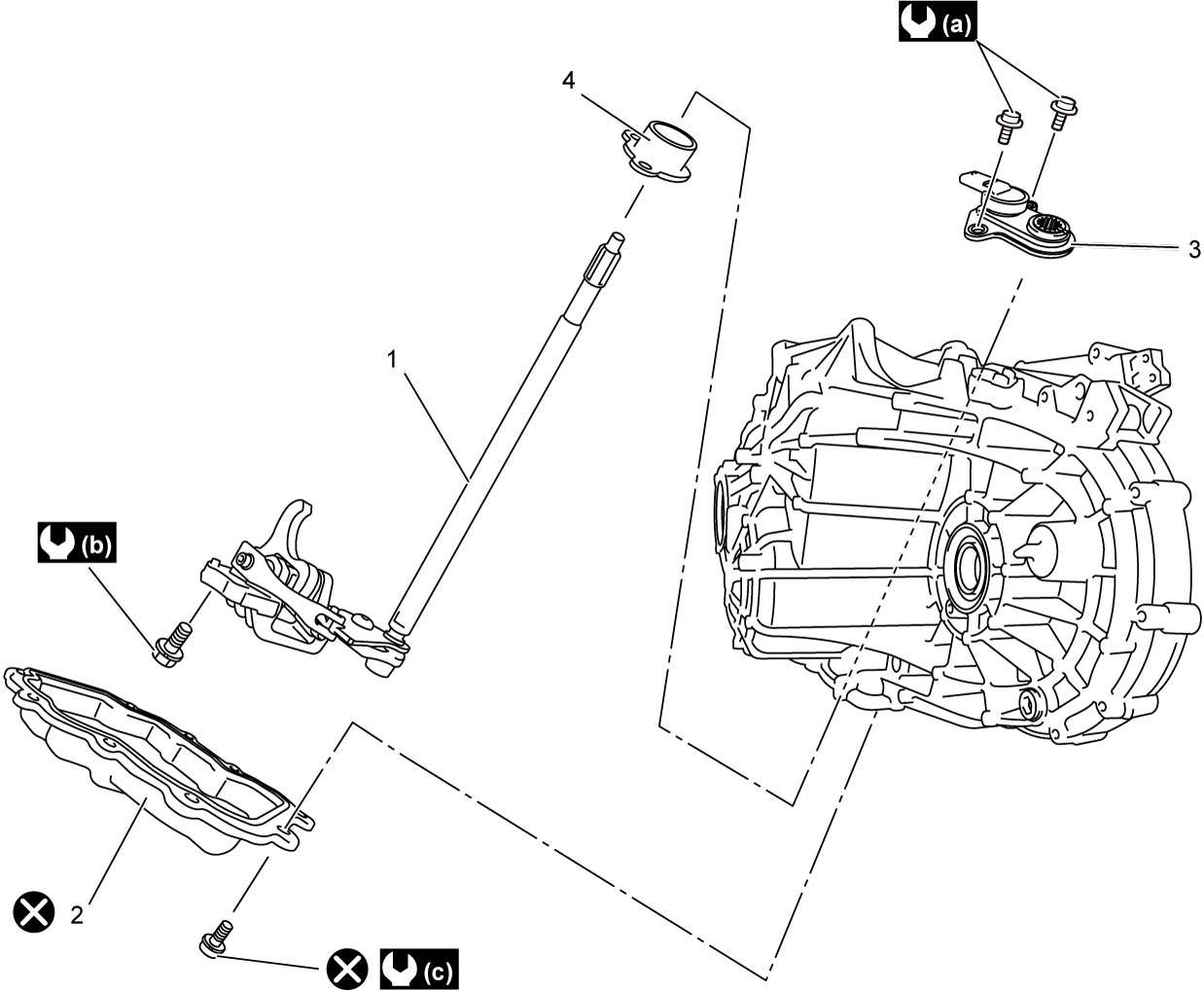

Parking Unit Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Parking unit | 4. | Parking unit bushing |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 2. | Oil pan |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
 : |
Do not reuse. |
| 3. | Parking position sensor |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
