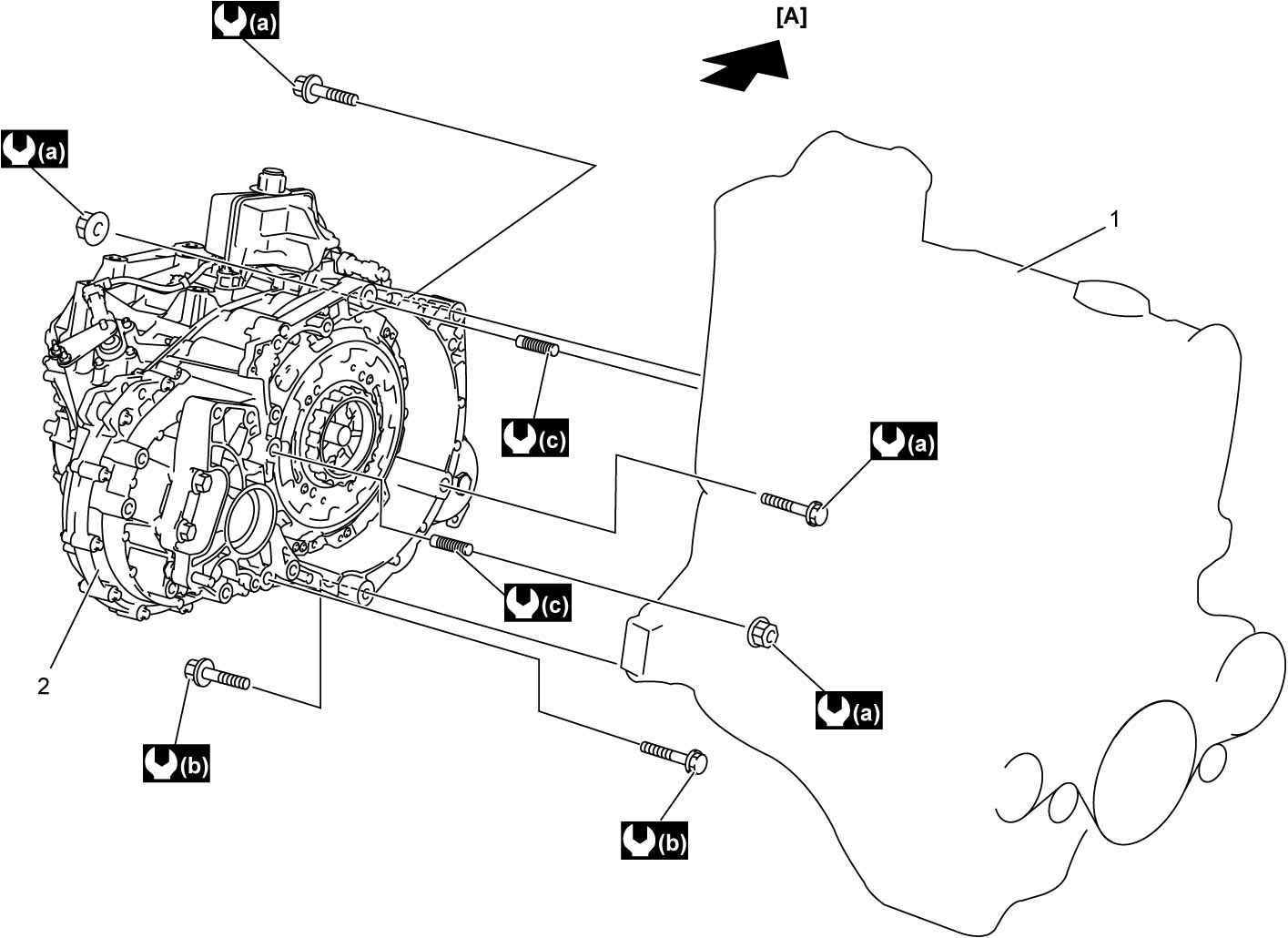

Twin Clutch System Unit Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| [A]: | Forward | 2. | Twin clutch system unit |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 1. | Engine |
 : |
85 N·m (8.7 kgf-m, 63.0 lbf-ft) |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
