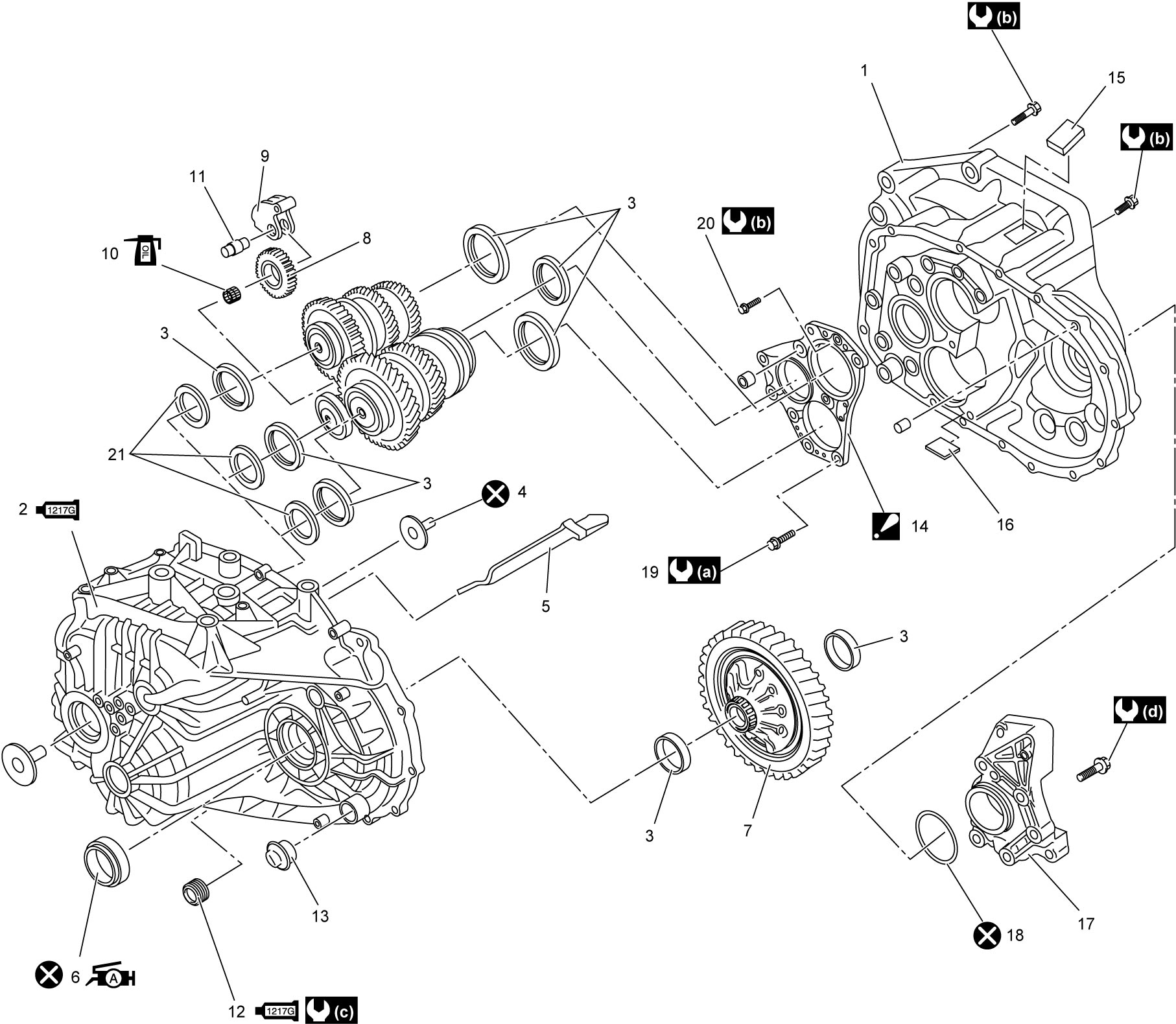

Twin Clutch System Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Right case | 11. | Reverse shaft | 21. | Shim |
 2. |
Left case : Apply sealant 99000-31260 to mating surface of right case and left case. |
12. |
Oil drain plug : Apply sealant 99000-31260 to around thread part of plug. |
22. | Gear mounting retaining bolt |
| 3. | Outer race | 13. | Oil level/filler plug |
 : |
80 N·m (8.2 kgf-m, 59.0 lbf-ft) |
| 4. | Oil channel |
 14. |
Right bearing outer race plate : For tightening order, refer to Transaxle Right Case Disassembly and Reassembly. |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
| 5. | Oil gutter | 15. | Cap |
 : |
21 N·m (2.1 kgf-m, 15.5 lbf-ft) |
 6. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
16. | Magnet |
 : |
85 N·m (8.7 kgf-m, 63.0 lbf-ft) |
| 7. | Differential assembly | 17. | Transfer adaptor |
 : |
100 N·m (10.2 kgf-m, 74.0 lbf-ft) |
| 8. | Reverse idler gear | 18. | O-ring |
 : |
Apply transaxle oil. |
| 9. | Reverse idler gear mounting | 19. | Right bearing outer race plate bolt No.1 |
 : |
Do not reuse. |
| 10. | Reverse idler gear needle bearing | 20. | Right bearing outer race plate bolt No.2 |
