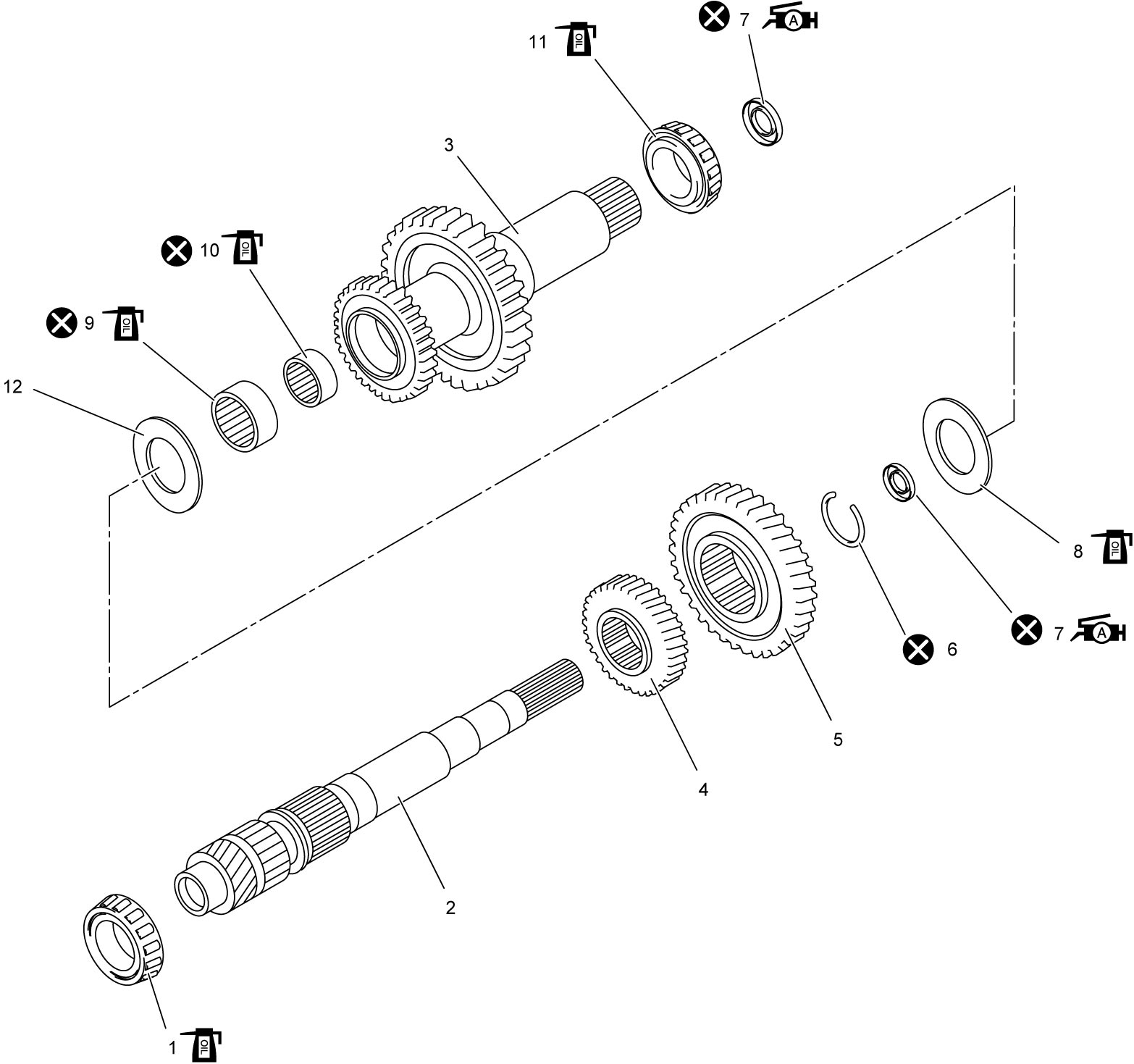

Input Shaft Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Input shaft left bearing | 6. | Circlip | 11. | Input shaft right bearing |
| 2. | Inner input shaft |
 7. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
12. | Washer |
| 3. | Outer input shaft | 8. | Thrust bearing |
 : |
Apply transaxle oil. |
| 4. | 3rd gear | 9. | Left needle bearing |
 : |
Do not reuse. |
| 5. | 5th gear | 10. | Right needle bearing |
