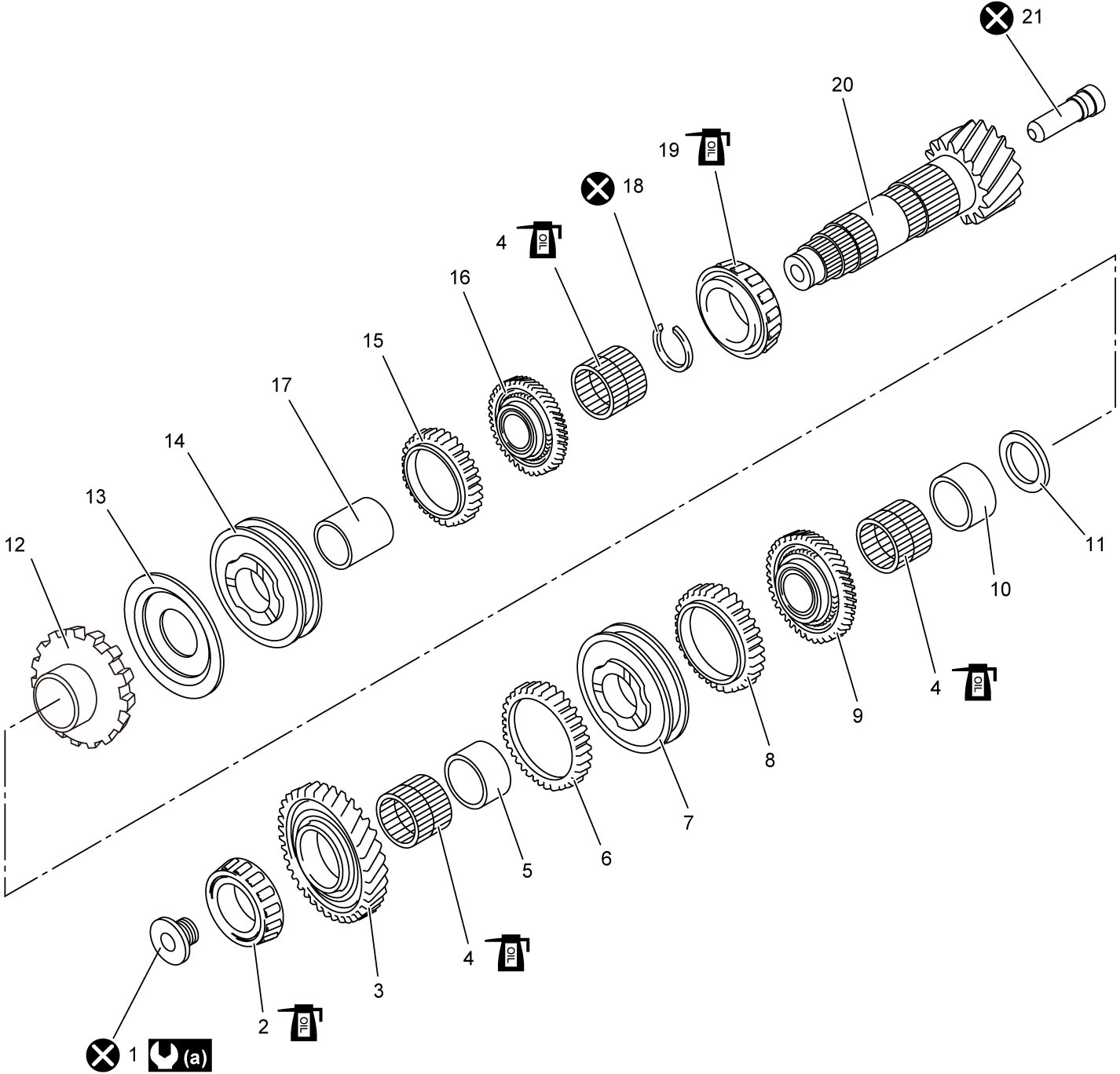

Lower Countershaft Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Lower countershaft bolt | 9. | 3rd gear | 17. | 6th gear spacer |
| 2. | Lower countershaft left bearing | 10. | 3rd gear spacer | 18. | Circlip |
| 3. | 1st gear | 11. | Washer | 19. | Lower countershaft right bearing |
| 4. | Needle bearing | 12. | Parking lock wheel | 20. | Lower countershaft |
| 5. | 1st gear spacer | 13. | Parking lock wheel spacer | 21. | Lower countershaft plug |
| 6. | 1st gear synchronizer ring | 14. | 6th gear synchronizer sleeve & hub |
 : |
110 N·m (11.2 kgf-m, 81.5 lbf-ft) |
| 7. | 1st & 3nd gear synchronizer sleeve & hub | 15. | 6th gear synchronizer ring |
 : |
Apply transaxle oil. |
| 8. | 3rd gear synchronizer ring | 16. | 6th gear |
 : |
Do not reuse. |
