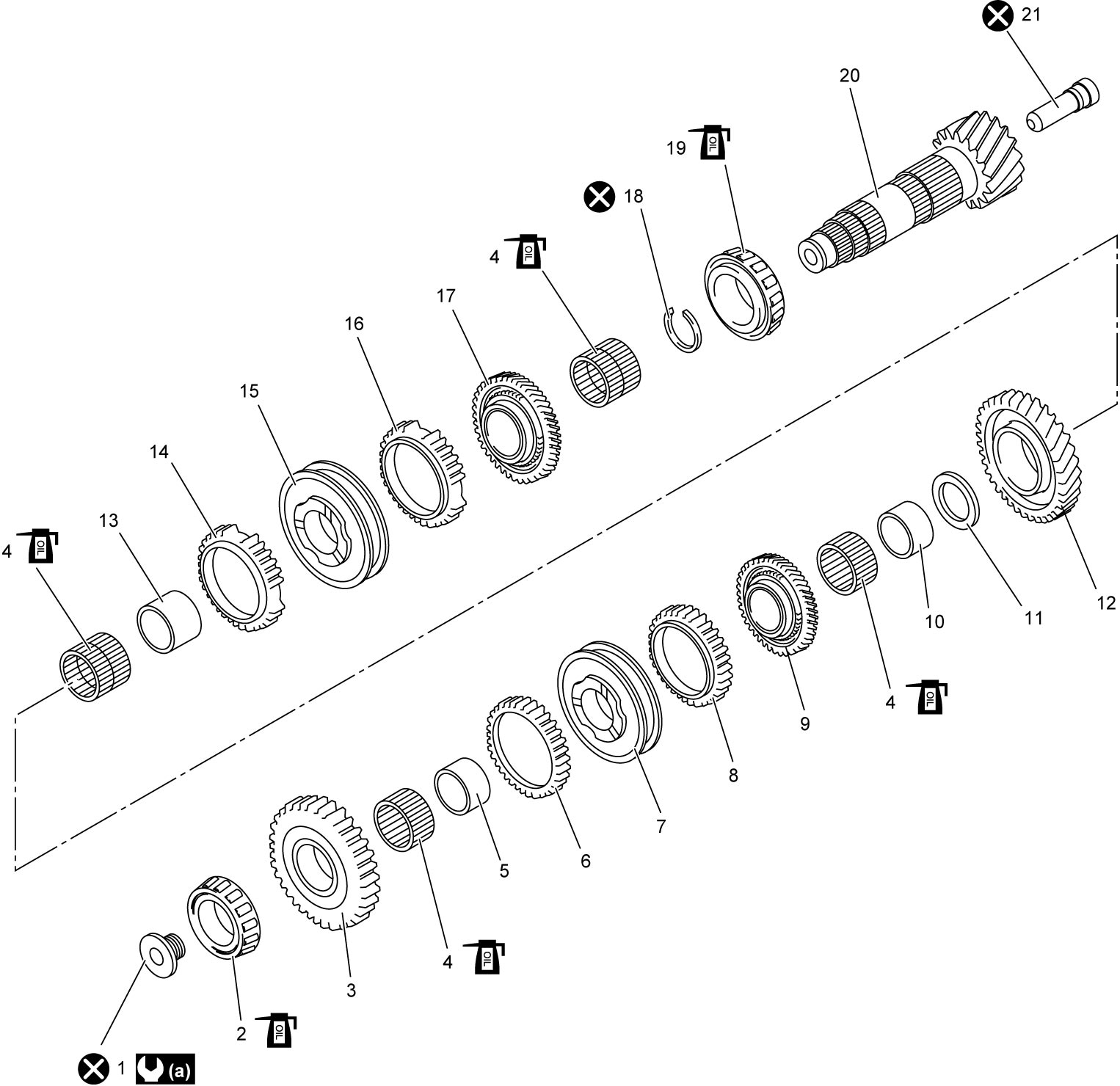

Upper Countershaft Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Upper countershaft bolt | 9. | 5th gear | 17. | 4th gear |
| 2. | Upper countershaft left bearing | 10. | 2nd gear spacer | 18. | Circlip |
| 3. | Reverse gear | 11. | Washer | 19. | Upper countershaft right bearing |
| 4. | Needle bearing | 12. | 2nd gear | 20. | Upper countershaft |
| 5. | 5th gear spacer | 13. | 4th gear spacer | 21. | Upper countershaft plug |
| 6. | Reverse gear synchronizer ring | 14. | 2nd gear synchronizer ring |
 : |
110 N·m (11.2 kgf-m, 81.5 lbf-ft) |
| 7. | 5th & reverse gear synchronizer sleeve and hub | 15. | 2nd & 4th gear synchronizer sleeve & hub |
 : |
Apply transaxle oil. |
| 8. | 5th gear synchronizer ring | 16. | 4th gear synchronizer ring |
 : |
Do not reuse. |
