Differential Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

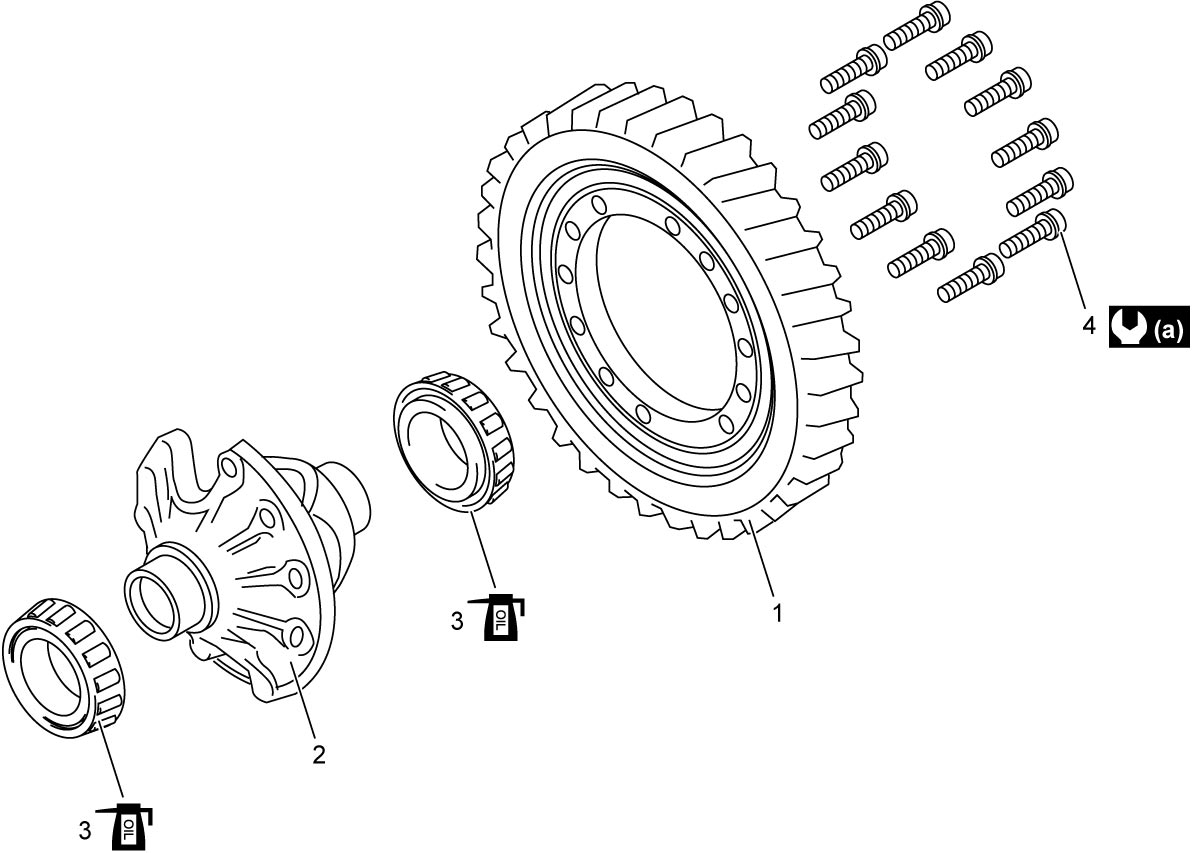

| 1. | Final gear |
 4. |
Final gear bolt : For tightening order, refer to Differential Disassembly and Reassembly. |
 : |
Do not reuse. |
| 2. | Differential case |
 : |
35 N·m → +50° (3.6 kgf-m → +50°, 26.0 lbf-ft → +50°) | ||
| 3. | Differential side bearing |
 : |
Apply transaxle oil. |
