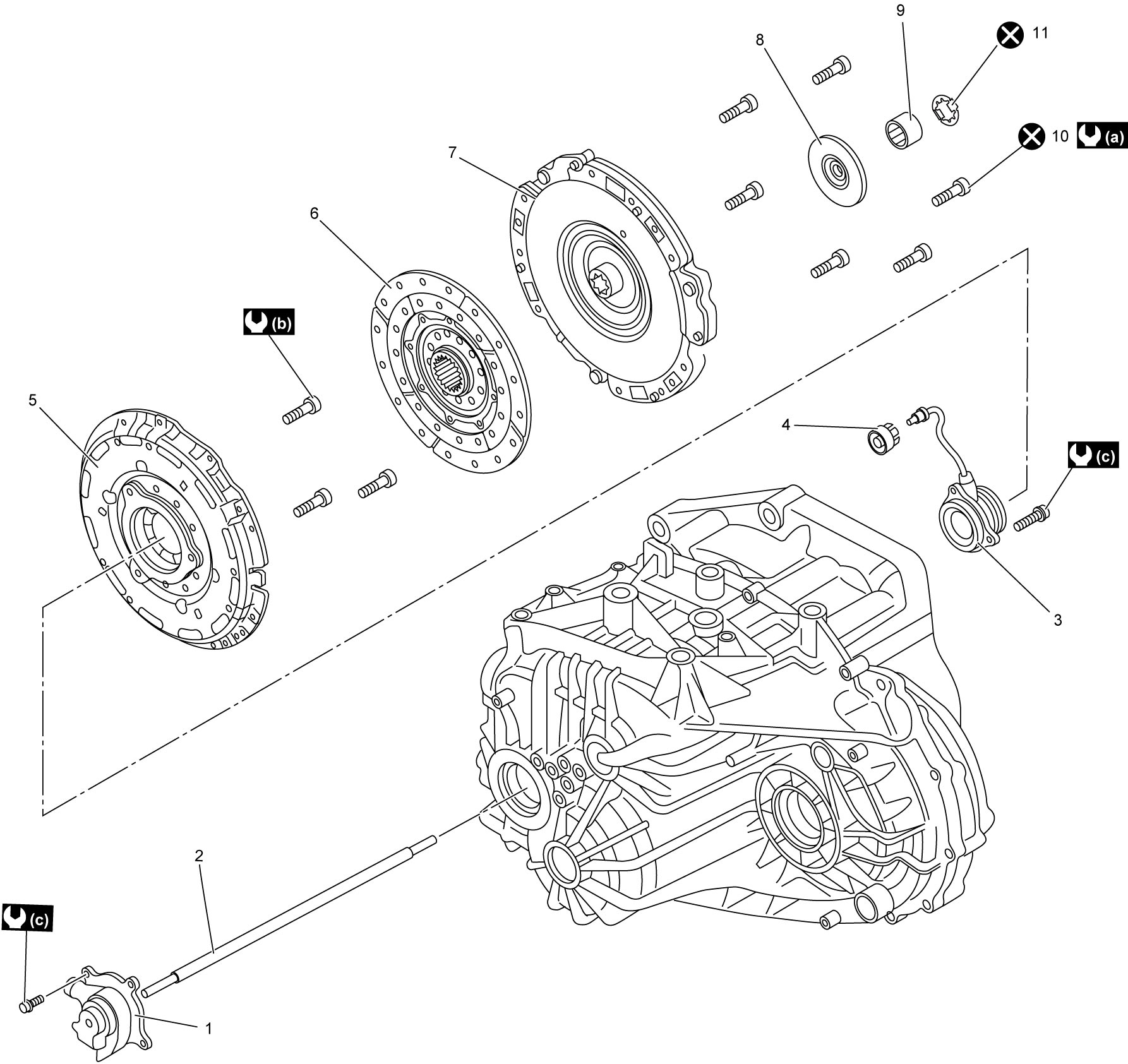

Odd Gear Clutch and Even Gear Clutch Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Odd gear clutch control actuator | 6. | Even gear clutch disc | 11. | Safety washer |
| 2. | Odd gear clutch control actuator rod | 7. | Odd gear clutch assembly |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 3. | Even gear clutch control actuator | 8. | Odd gear clutch control actuator thrust bearing |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
| 4. | Clutch pipe joint sleeve | 9. | Thrust bearing cap |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 5. | Even gear clutch assembly | 10. | Odd gear clutch assembly bolt |
 : |
Do not reuse. |
