Pinion Shaft Rotation Torque Inspection
Precautions: Precautions for Steering Wheel and Column · Precautions for Steering · General safety (00)
1)Remove steering gear case assembly.
2)Remove rack boots.

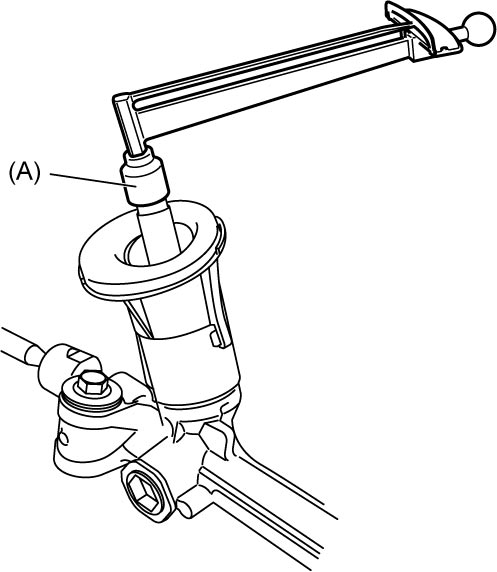

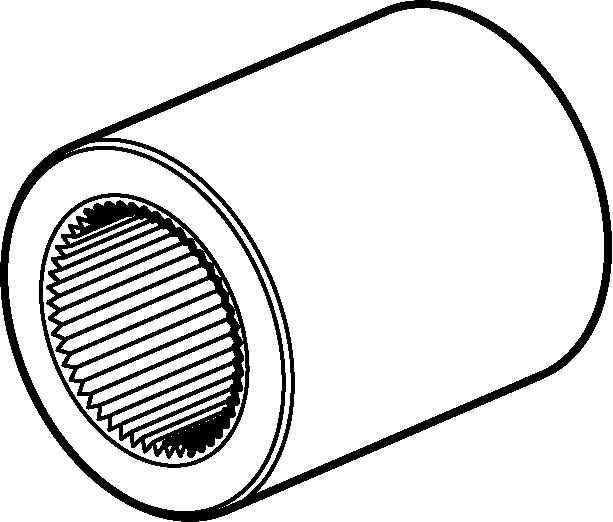

3)Check pinion shaft rotation torque with rack position centered using special tool.
Also check that rack as a whole moves smoothly.
If check result is not as specified, adjust pinion shaft rotation torque.
Also check that rack as a whole moves smoothly.
If check result is not as specified, adjust pinion shaft rotation torque.
Rotation torque specification
| Rotation angle | Rotation torque |
|---|---|
| 0° – 45° | 0.8 – 2.0 N·m (0.08 – 0.20 kgf-m, 1.0 – 1.5 lbf-ft) |
| 45° – end | 3.0 N·m (0.31 kgf-m, 2.0 lbf-ft) max |
