Power Steering Control System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Steering · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.

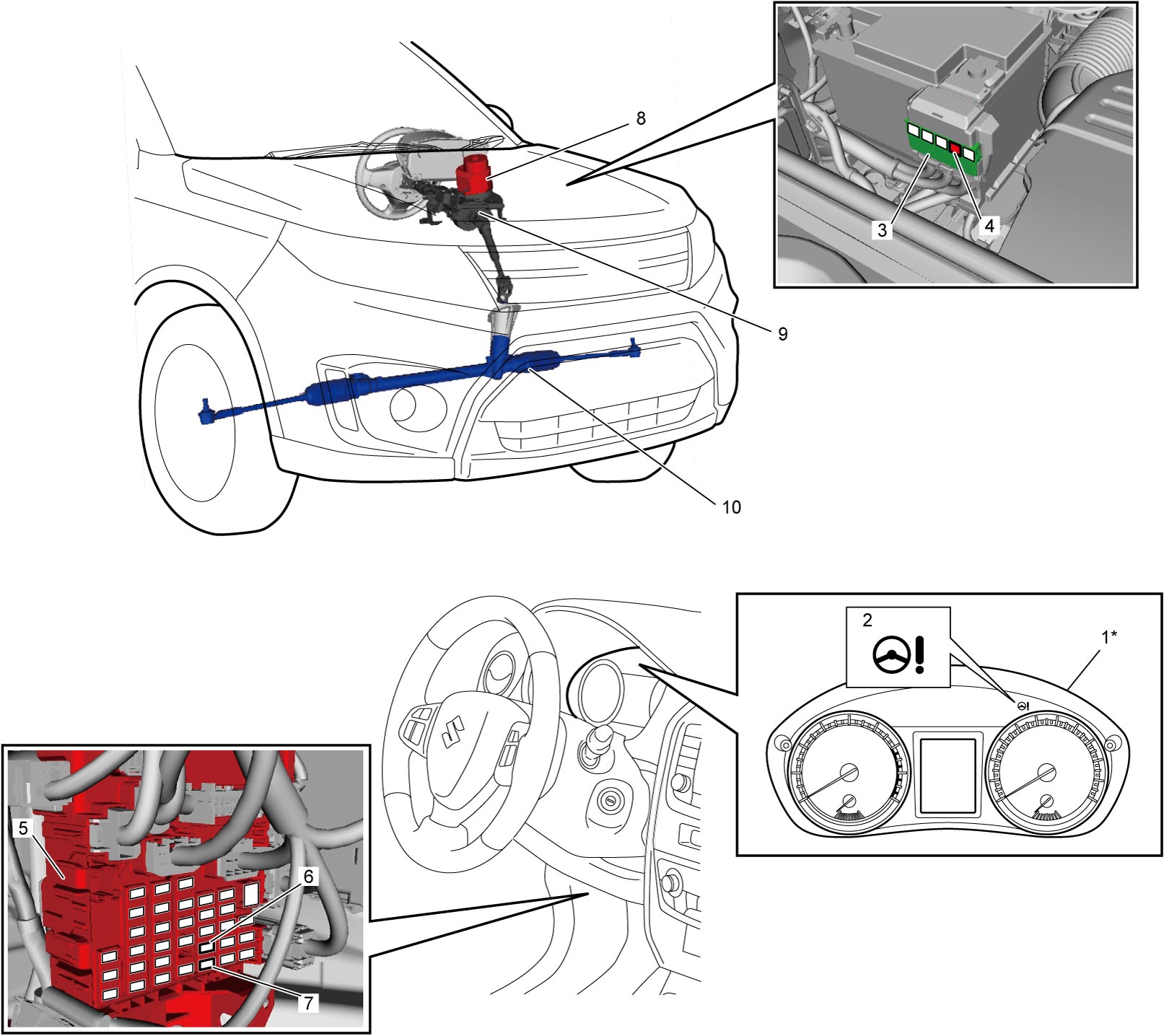

| 1. | Combination meter | 5. | J/B | 9. | Steering column assembly (including P/S control module / motor assembly and torque sensor) |
| 2. | P/S warning light | 6. | “IG1 SIG” fuse | 10. | Steering gear case assembly |
| 3. | Main fuse box | 7. | “MTR” fuse | ||
| 4. | “P/S” fuse | 8. | P/S control module / motor assembly |
