Steering Wheel Play Check
Precautions: Precautions for Diagnosing Trouble · Precautions for Steering · General safety (00)
•Check steering wheel for looseness or rattle by moving it in axial and lateral directions.
If check result is not OK, repair or replace steering wheel.
•Check steering wheel for play, holding vehicle in straight ahead position on the ground with engine stopped.
If steering wheel play is not as specified, check the following components and replace any of them if defective.
If check result is not OK, repair or replace steering wheel.
•Check steering wheel for play, holding vehicle in straight ahead position on the ground with engine stopped.
If steering wheel play is not as specified, check the following components and replace any of them if defective.
—Tie-rod end and tie-rod ball joint for wear
—Suspension arm joint for wear
—Steering shaft joint for wear
—Steering pinion or rack gear for wear or breakage
—Each part for looseness
—Suspension arm joint for wear
—Steering shaft joint for wear
—Steering pinion or rack gear for wear or breakage
—Each part for looseness

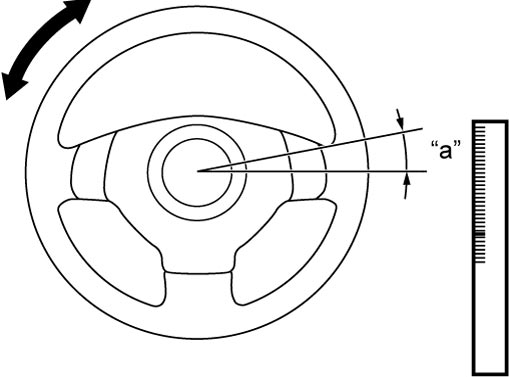

Steering wheel play
“a”
:
0 – 30 mm (0 – 1.2 in.)
