HVAC and Additional Heater (If Equipped) Control System Circuit Diagram
Precautions: General safety (00)

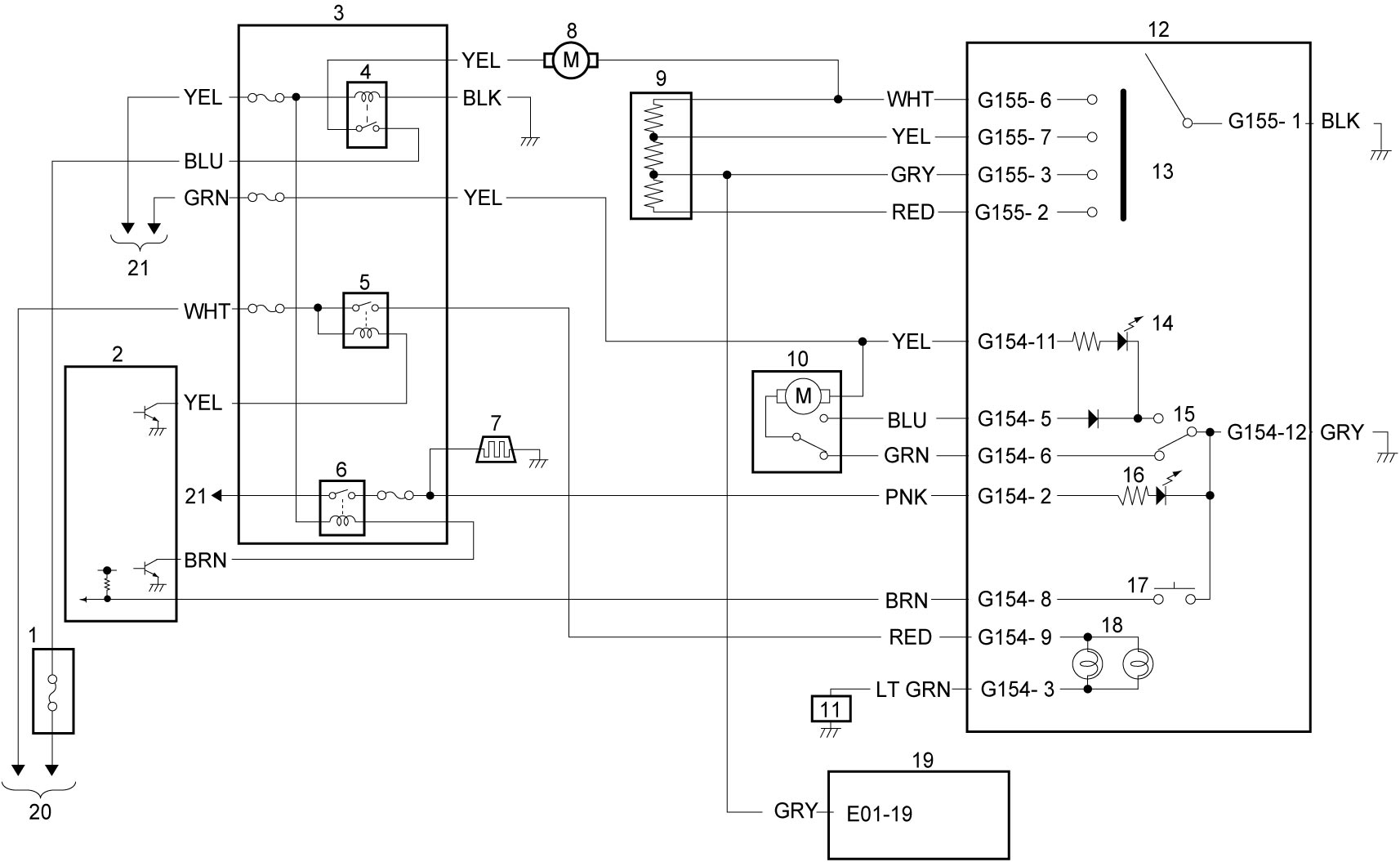

Petrol Model
| 1. | Relay box | 8. | Blower motor | 15. | Air intake switch |
| 2. | BCM | 9. | Blower motor resistor | 16. | Rear defogger indicator light |
| 3. | J/B | 10. | Air intake control actuator | 17. | Rear defogger switch |
| 4. | Blower motor relay | 11. | Combination meter | 18. | Illumination light |
| 5. | Tail light relay | 12. | HVAC control unit | 19. | ECM |
| 6. | Rear defogger and mirror heater relay | 13. | Blower speed selector | 20. | To continuous power supply |
| 7. | Rear defogger | 14. | “REC” indicator light | 21. | To ignition power supply |

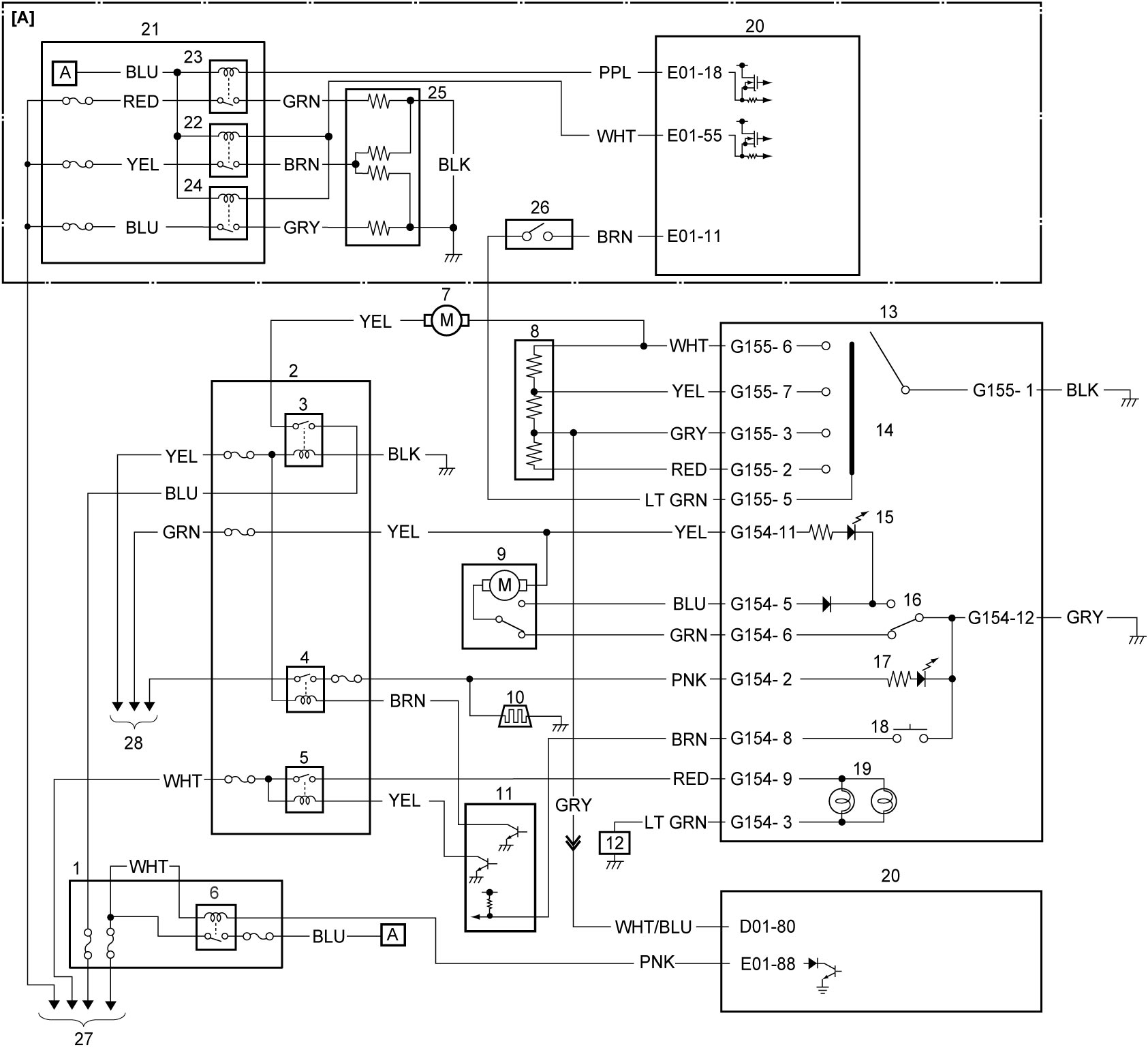

Diesel Model
| [A]: | Additional heater system circuit (if equipped) | 10. | Rear defogger | 20. | ECM |
| 1. | Relay box | 11. | BCM | 21. | Sub fuse box |
| 2. | J/B | 12. | Combination meter | 22. | Additional heater relay No.1 |
| 3. | Blower motor relay | 13. | HVAC control unit | 23. | Additional heater relay No.2 |
| 4. | Rear defogger and mirror heater relay | 14. | Blower speed selector | 24. | Additional heater relay No.3 |
| 5. | Tail light relay | 15. | “REC” indicator light | 25. | Additional heater assembly |
| 6. | Main relay | 16. | Air intake switch | 26. | Max hot switch |
| 7. | Blower motor | 17. | Rear defogger indicator light | 27. | To continuous power supply |
| 8. | Blower motor resistor | 18. | Rear defogger switch | 28. | To ignition power supply |
| 9. | Air intake control actuator | 19. | Illumination light |
