HVAC Control System Component Location
Precautions: General safety (00)
NOTE:

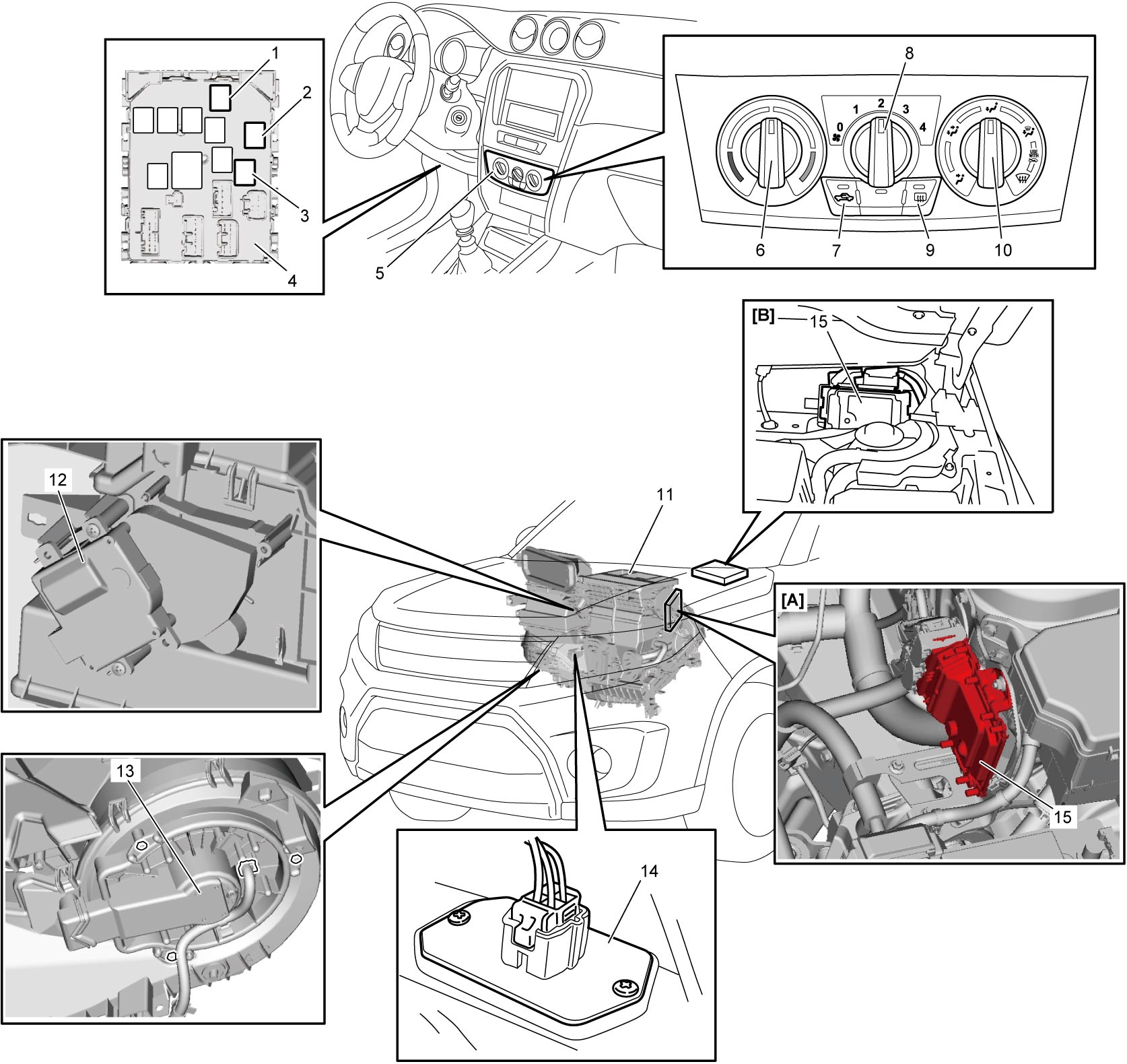

This figure shows component location on LHD as an example.
| [A]: | Petrol model | 5. | HVAC control unit | 11. | HVAC unit |
| [B]: | Diesel model | 6. | Temperature selector | 12. | Air intake control actuator |
| 1. | Tail light relay | 7. | Air intake switch | 13. | Blower motor |
| 2. | Blower motor relay | 8. | Blower speed selector | 14. | Blower motor resistor |
| 3. | Rear defogger and mirror heater relay | 9. | Rear defogger switch | 15. | ECM |
| 4. | J/B | 10. | Air flow selector |
