Max Hot Switch (If Equipped) Removal and Installation
Precautions: General safety (00)
Removal

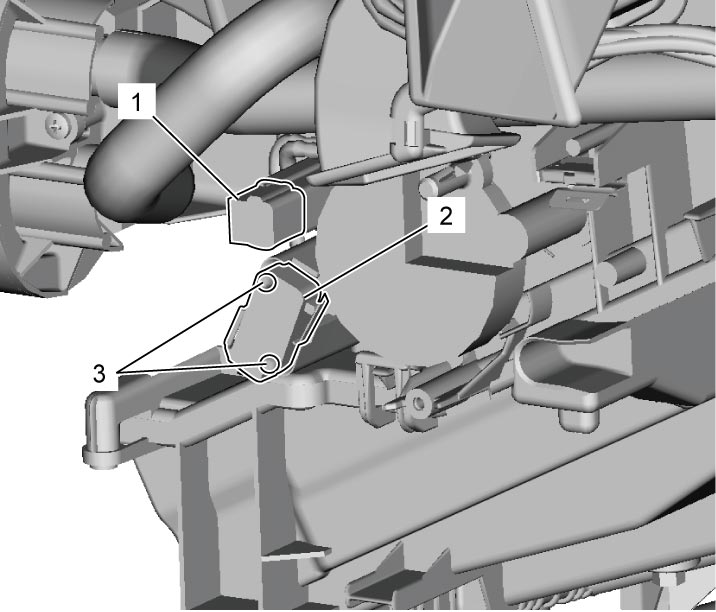

1)Disconnect max hot switch connector (1) from HVAC unit.
2)Remove max hot switch (2) from HVAC unit by removing screws (3).
Installation
Reverse removal procedure.
