Suzuki Vitara (LY) 2016-2017 · Service Manual
Non-A/C · Repair Instructions
Contents
›
7B HVAC System
› Non-A/C › Repair Instructions
Additional Heater (If Equipped) Inspection
Precautions:
General safety (00)
Reference: Additional Heater (If Equipped) Removal and Installation:Manual Type
•

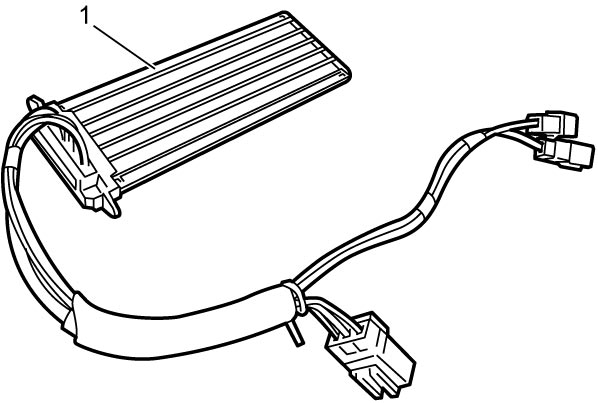

Check if there is continuity between additional heater terminals. If there is no continuity, replace additional heater (1).
•
Check additional heater for crack or any other damage. Replace additional heater if defective.
