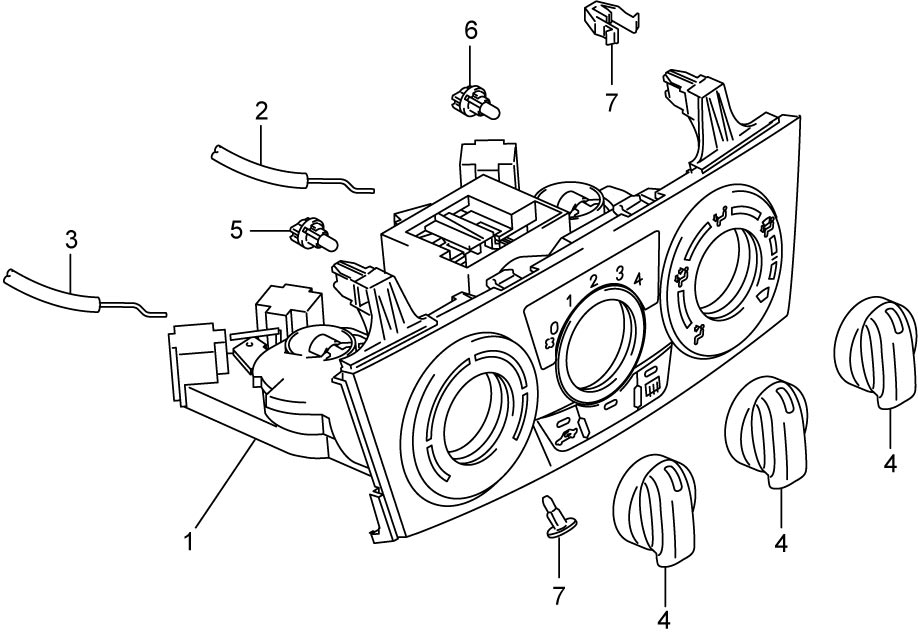

HVAC Control Unit Components
Precautions: General safety (00)
| 1. | HVAC control unit | 4. | Dial knob | 7. | Clip |
| 2. | Air flow control cable | 5. | Bulb (without red cap) | ||
| 3. | Temperature control cable | 6. | Bulb (with red cap) |
Precautions: General safety (00)
| 1. | HVAC control unit | 4. | Dial knob | 7. | Clip |
| 2. | Air flow control cable | 5. | Bulb (without red cap) | ||
| 3. | Temperature control cable | 6. | Bulb (with red cap) |
