Air Intake Control Actuator Inspection

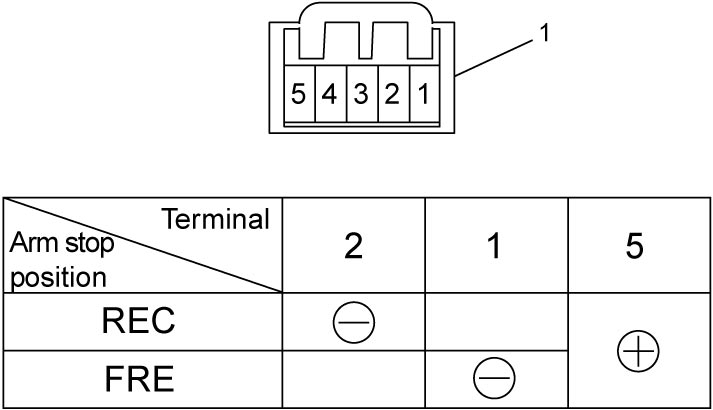

1)Connect battery positive (+) terminal to terminal “5” of air intake control actuator connector (1) and battery negative (–) terminal to terminal “1”. Next, the negative (–) terminal to terminal “2”, and check that air intake control actuator moves to respective position in the table below.

2)If check result is not OK, replace air intake control actuator.
