Air Intake Control Actuator Removal and Installation
Precautions: General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove glove box.
3)For LHD model, remove passenger side instrument panel undercover (1).
4)For LHD model, remove passenger side foot duct (1) from HVAC unit by removing screw (2).
5)Disconnect air intake control actuator connector.

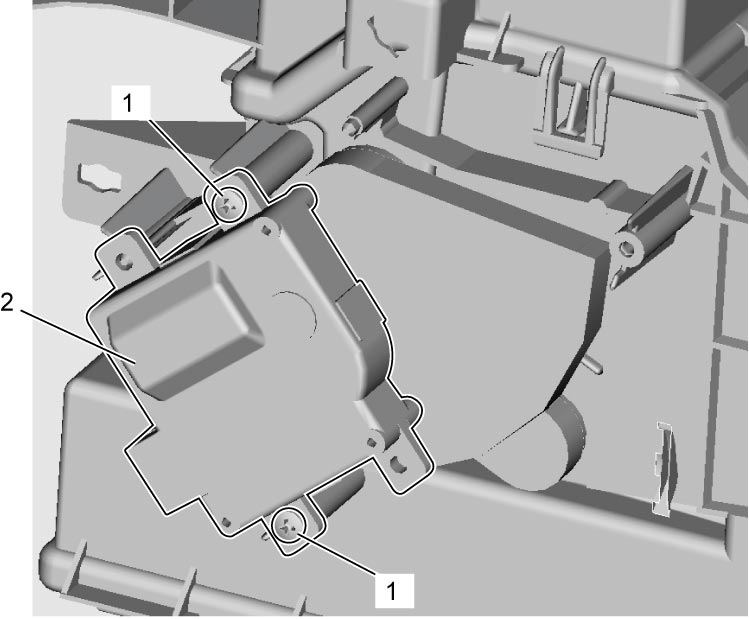

6)Remove screws (1).
7)Remove air intake control actuator (2) from HVAC unit.
