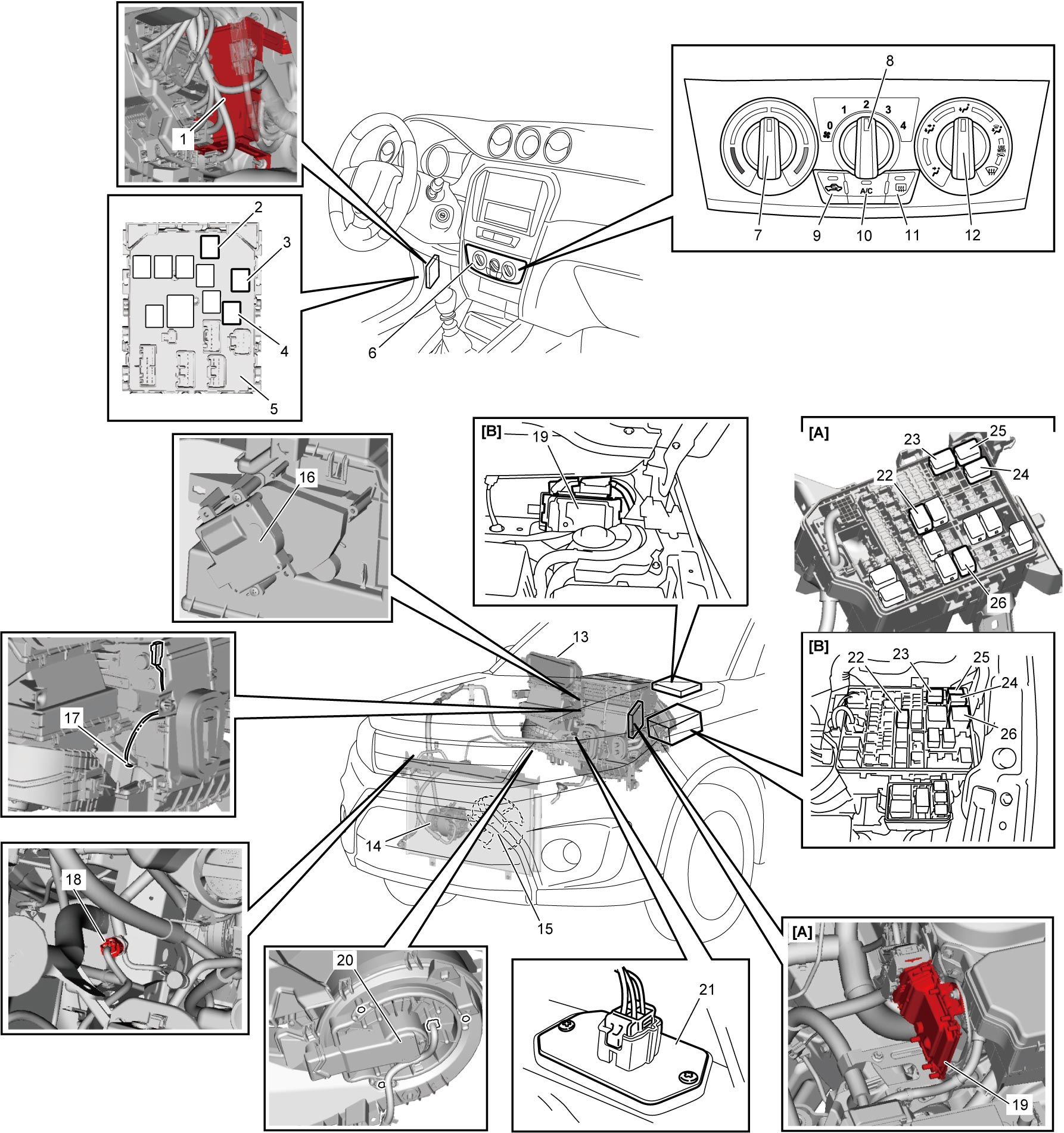

Manual A/C Control System Component Location
Precautions: General safety (00)
NOTE:
This figure shows the component locations for LHD as an example.
| [A]: | Petrol model | 9. | Air intake switch | 19. | ECM |
| [B]: | Diesel model | 10. | A/C switch | 20. | Blower motor |
| 1. | BCM | 11. | Rear defogger switch | 21. | Blower motor resistor |
| 2. | Tail light relay | 12. | Air flow selector | 22. | A/C compressor relay |
| 3. | Blower motor relay | 13. | HVAC unit | 23. | Radiator cooling fan relay No.1 |
| 4. | Rear defogger and mirror heater relay | 14. | Compressor | 24. | Radiator cooling fan relay No.2 |
| 5. | J/B | 15. | Radiator cooling fan | 25. | Radiator cooling fan relay No.3 |
| 6. | HVAC control unit | 16. | Air intake control actuator | 26. | Main relay |
| 7. | Temperature selector | 17. | Evaporator temperature sensor | ||
| 8. | Blower speed selector | 18. | A/C refrigerant pressure sensor |
