A/C System Major Components
Precautions: General safety (00)

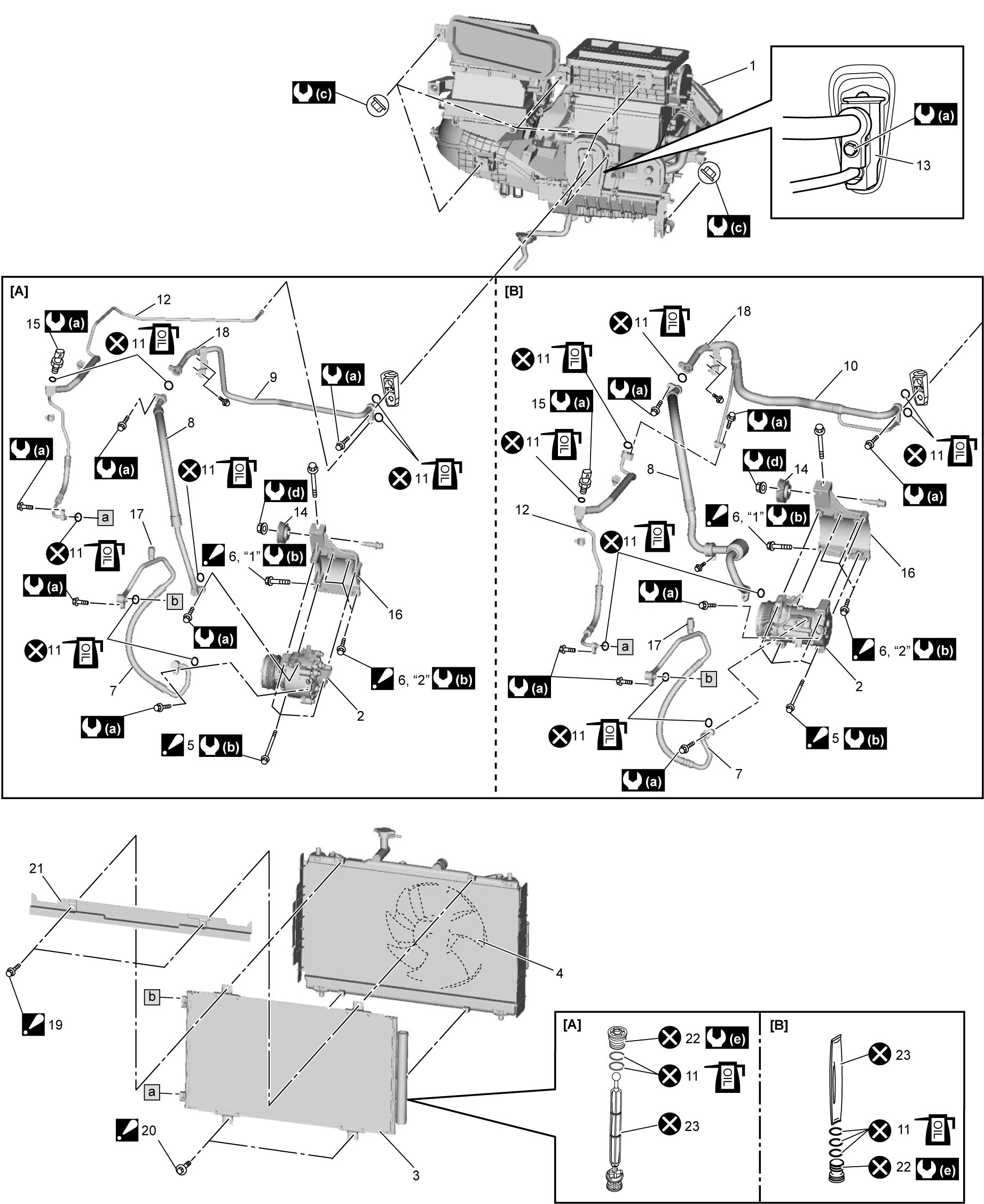

Petrol Model
| [A]: | HFC-134a | 10: | Inner heat exchanger pipe | 21. | Radiator upper shroud |
| [B]: | HFO-1234yf |
 11. |
O-ring : Apply compressor oil. |
22. | Cap |
| 1. | HVAC unit | 12. | Liquid pipe | 23. | Desiccant |
| 2. | Compressor | 13. | Expansion valve |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 3. | Condenser with receiver/dryer | 14. | Tension pulley |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 4. | Radiator cooling fan | 15. | A/C refrigerant pressure sensor |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
 5. |
Compressor mounting bolt : For tightening procedure of compressor mounting bolt, refer to Compressor Assembly Removal and Installation:Manual Type. |
16. | Compressor bracket |
 : |
60 N·m (6.1 kgf-m, 44.5 lbf-ft) |
|
6. |
Compressor bracket bolt : Tighten compressor bracket bolts in numerical order (“1” – “2”). |
17. | High pressure charging valve |
 : |
18 N·m (1.8 kgf-m, 13.5 lbf-ft) |
| 7. | Discharge hose | 18. | Low pressure charging valve |
 : |
Do not reuse. |
| 8. | Suction hose |
19. |
Condenser upper bolt : For tightening procedure of condenser upper bolt, refer to Condenser Assembly Removal and Installation:Manual Type. |
||
| 9. | Suction pipe |
20. |
Condenser lower bolt : For tightening procedure of condenser lower bolt, refer to Condenser Assembly Removal and Installation:Manual Type. |

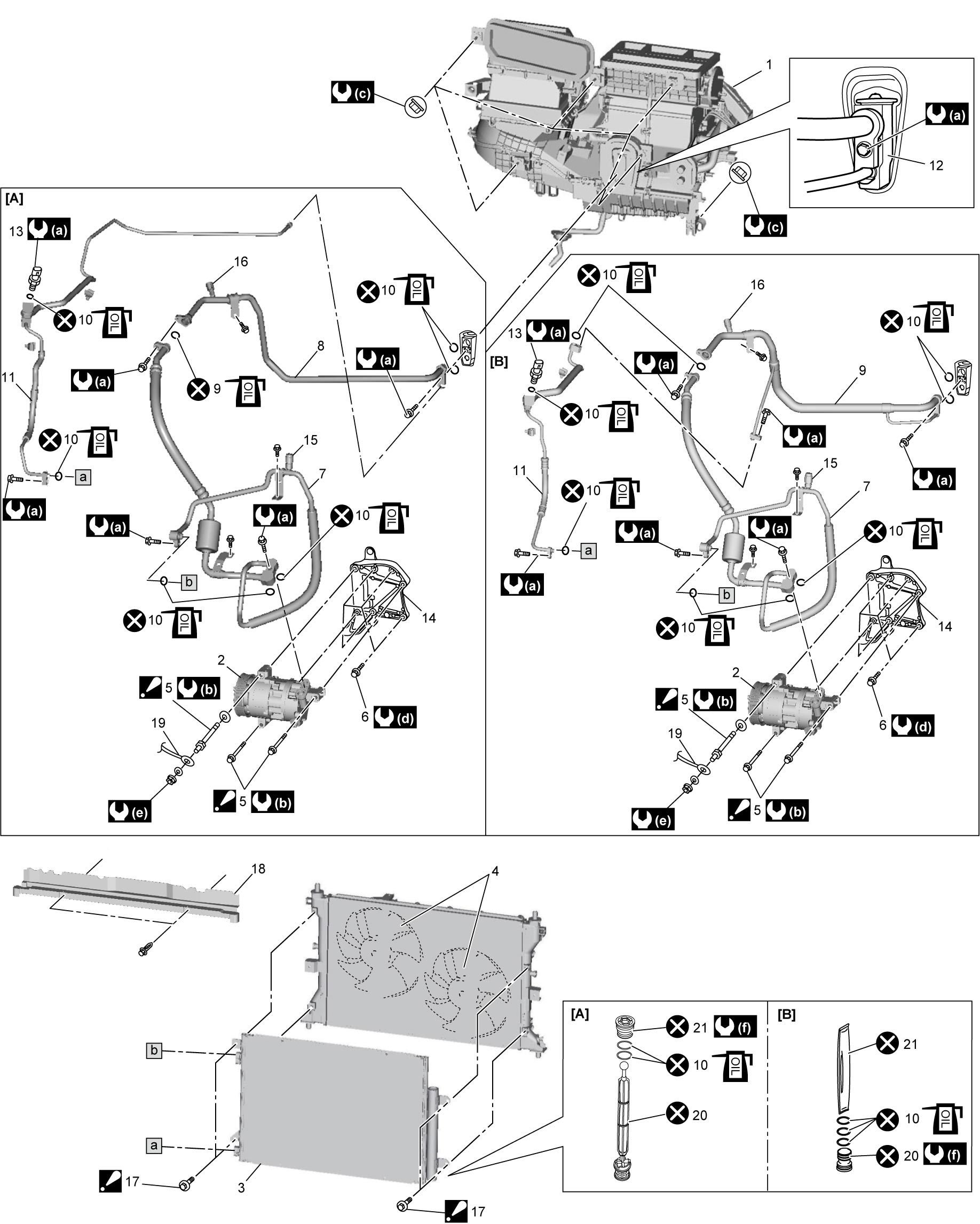

Diesel Model
| [A]: | HFC-134a | 9. | Inner heat exchanger pipe | 19. | Harness ground cable |
| [B]: | HFO-1234yf |
10. |
O-ring : Apply compressor oil. |
20. | Cap |
| 1. | HVAC unit | 11. | Liquid pipe | 21. | Desiccant |
| 2. | Compressor | 12. | Expansion valve |
: |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 3. | Condenser with receiver/dryer | 13. | A/C refrigerant pressure sensor |
: |
28 N·m (2.9 kgf-m, 21.0 lbf-ft) |
| 4. | Radiator cooling fan | 14. | Compressor bracket |
: |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
|
5. |
Compressor mounting bolt : For tightening procedure of compressor mounting bolt, refer to Compressor Assembly Removal and Installation:Manual Type. |
15. | High pressure charging valve |
: |
56 N·m (5.7 kgf-m, 41.5 lbf-ft) |
| 6. | Compressor bracket bolt | 16. | Low pressure charging valve |
: |
8.5 N·m (0.87 kgf-m, 6.5 lbf-ft) |
| 7. | Suction & discharge hose |
17. |
Condenser bolt : For tightening procedure of condenser bolt, refer to Condenser Assembly Removal and Installation:Manual Type. |
 : |
18 N·m (1.8 kgf-m, 13.5 lbf-ft) |
| 8. | Suction pipe | 18. | Radiator upper shroud |
: |
Do not reuse. |
