Compressor Assembly Components
Precautions: General safety (00)

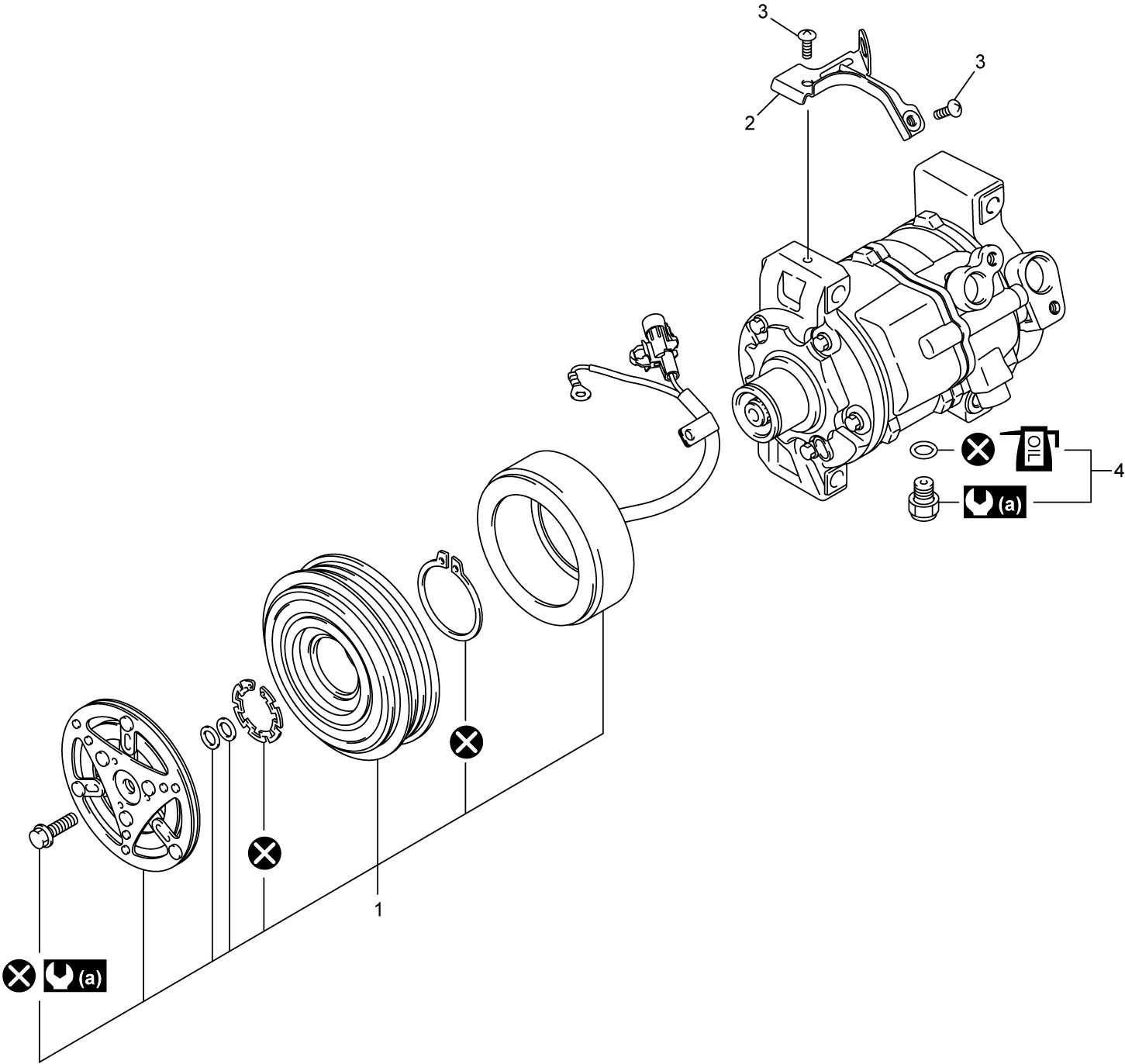

Petrol Model (HFC-134a)
| 1. | Clutch set | 4. | Screw |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 2. | Clip set |
 5. |
Relief valve set O-ring: Apply compressor oil. |
 : |
Do not reuse. |
| 3. | Bracket |
 : |
16 N·m (1.6 kgf-m, 12.0 lbf-ft) |

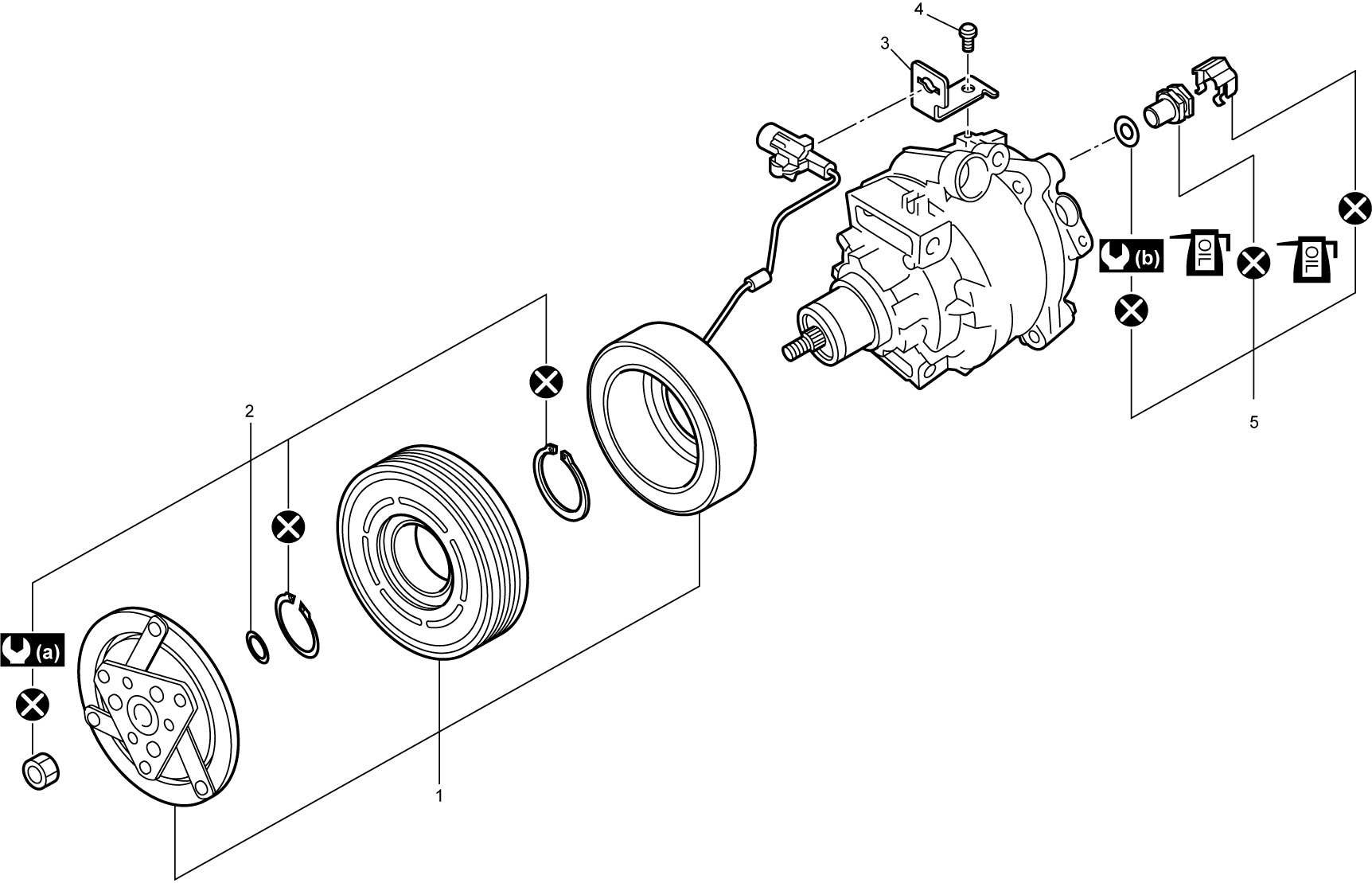

Petrol Model (HFO-1234yf)
| 1. | Clutch set | 3. | Screw |
: |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 2. | Bracket |
4. |
Relief valve set O-ring: Apply compressor oil. |
: |
Do not reuse. |
Diesel Model
NOTICE:
The compressor assembly will lose its original performance if it is disassembled.
Do not disassemble and repair the compressor assembly. If any faulty condition is found, replace the compressor assembly with a new one.
