Compressor ON/OFF Valve On-Vehicle Inspection (Diesel Model)
Precautions: General safety (00)
1)Disconnect negative (–) cable at battery.
2)Disconnect compressor ON/OFF valve connector.

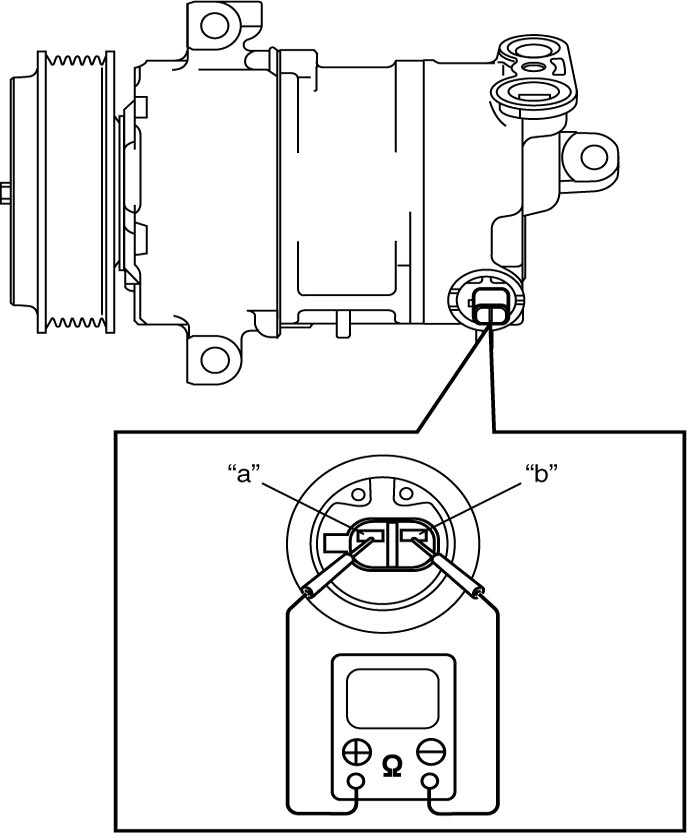

3)Measure resistance between terminal “a” and terminal “b” of compressor ON/OFF valve at 20 °C (68 °F). If measured resistance is not as specified, replace compressor assembly.
Compressor ON/OFF valve resistance
10 – 20 Ω at 20 °C (68 °F)
