Relief Valve Inspection (Petrol Model)
Precautions: General safety (00)
1)Remove engine undercover.

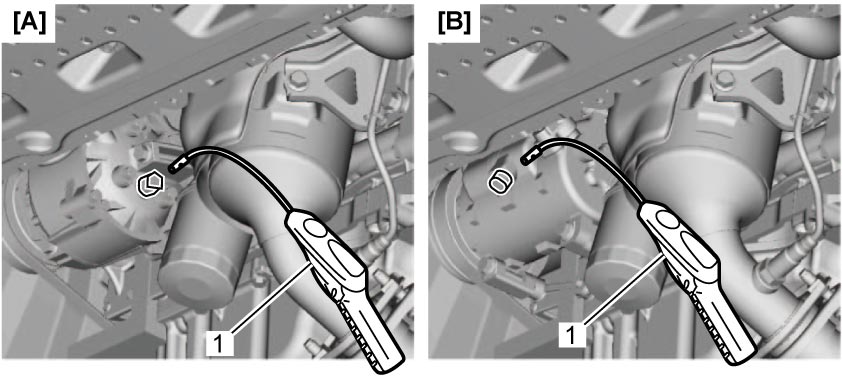

2)Check relief valve for refrigerant leakage using leak detector (1).
If there is refrigerant leakage, replace relief valve.
If there is refrigerant leakage, replace relief valve.
NOTE:
The HVAC system of this vehicle uses either of two refrigerant types, HFC-134a or HFO-1234yf. Use leak detector compatible with respective refrigerant.
| [A]: | HFC-134a model | [B]: | HFO-1234yf model |
