A/C Refrigerant Identification
Precautions: Precautions for Diagnosing Trouble · General safety (00)
M16A Model and D16AA Model
K14C Model

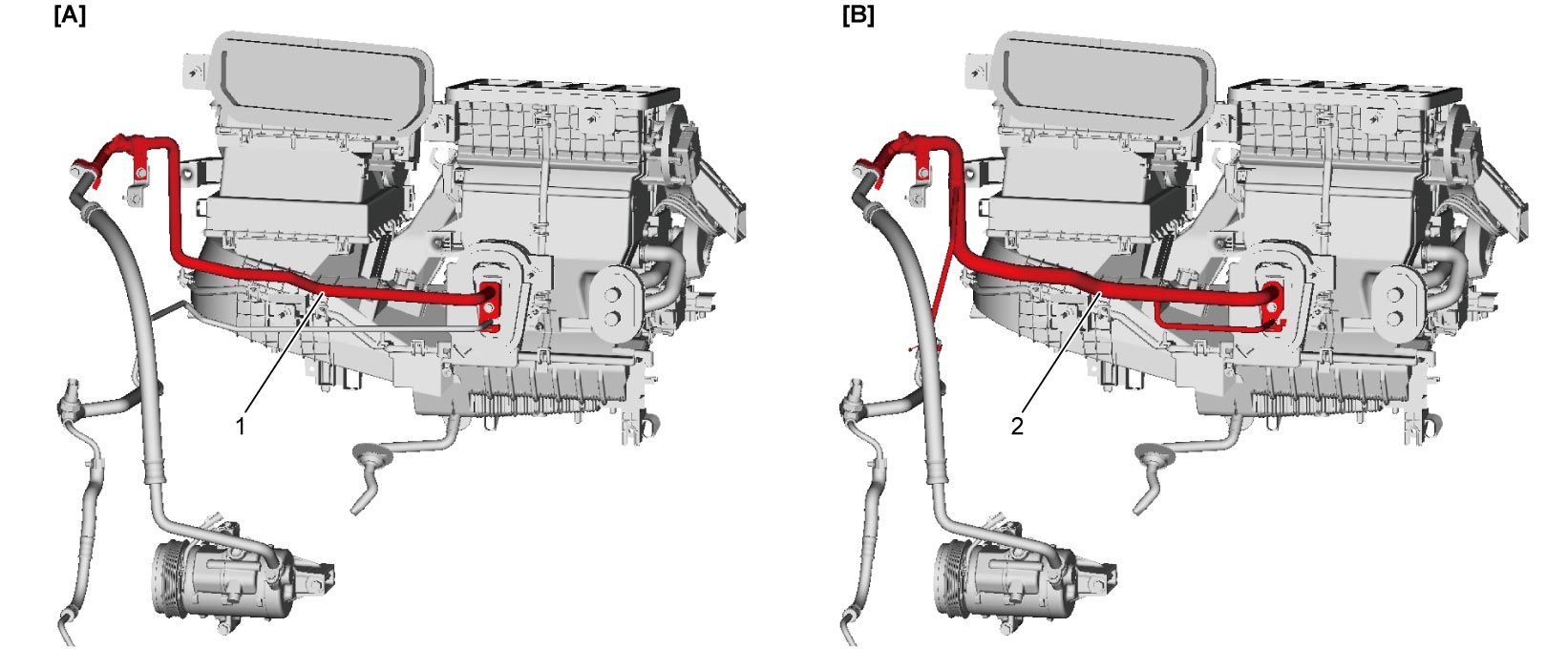

For distinction of refrigerant types, refer to the following differences.
•HFC-134a model: Equipped with suction pipe (1)
•HFO-1234yf model: Equipped with inner heat exchanger pipe (2)
•HFO-1234yf model: Equipped with inner heat exchanger pipe (2)
| [A]: | HFC-134a model | [B]: | HFO-1234yf model |
