HVAC Control Module Removal and Installation

Precautions: Precautions for Diagnosing Trouble · General safety (00)

Removal

1)Remove auto A/C panel.

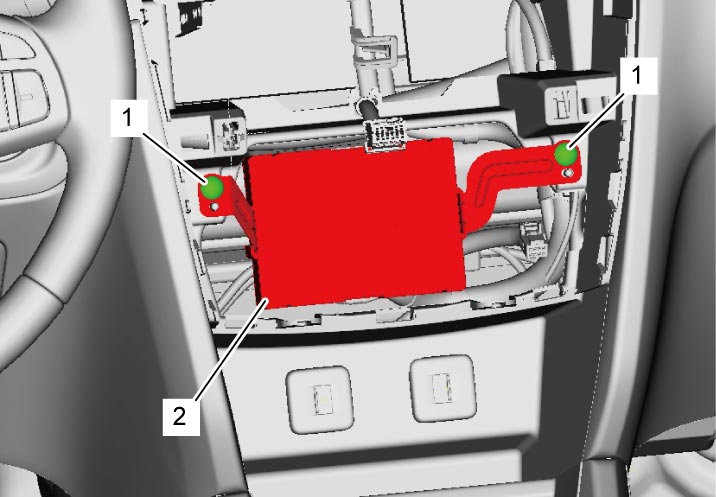

2)Remove screws (1).

3)Remove HVAC control module (2).

4)Disconnect HVAC control module connector.

Installation

Reverse removal procedure.
