Auto A/C Panel Removal and Installation
Precautions: Precautions for Diagnosing Trouble · General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove audio unit or navigation unit from instrument panel.

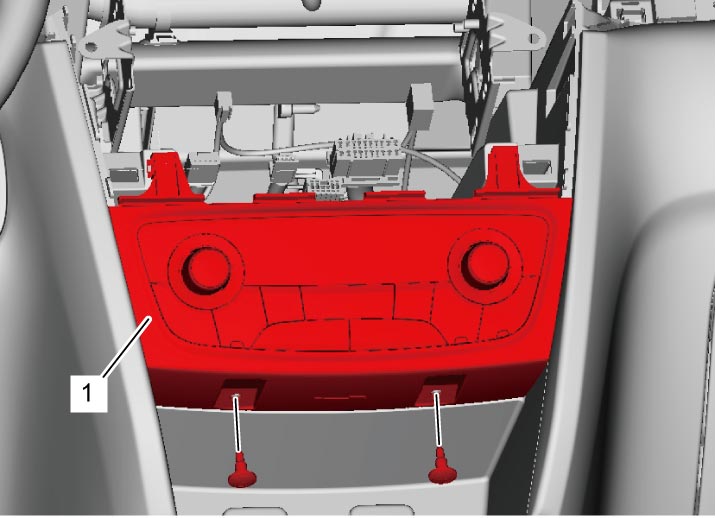

3)Remove auto A/C panel (1) from instrument panel.
4)Disconnect auto A/C panel connector.
Installation
Reverse removal procedure.
