Air Intake Control Actuator Removal and Installation
Precautions: Precautions for Diagnosing Trouble · General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove glove box.

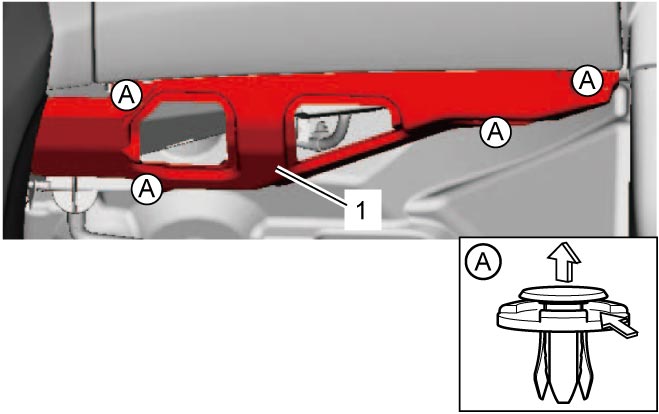

3)For LHD model, remove passenger side instrument panel undercover (1).

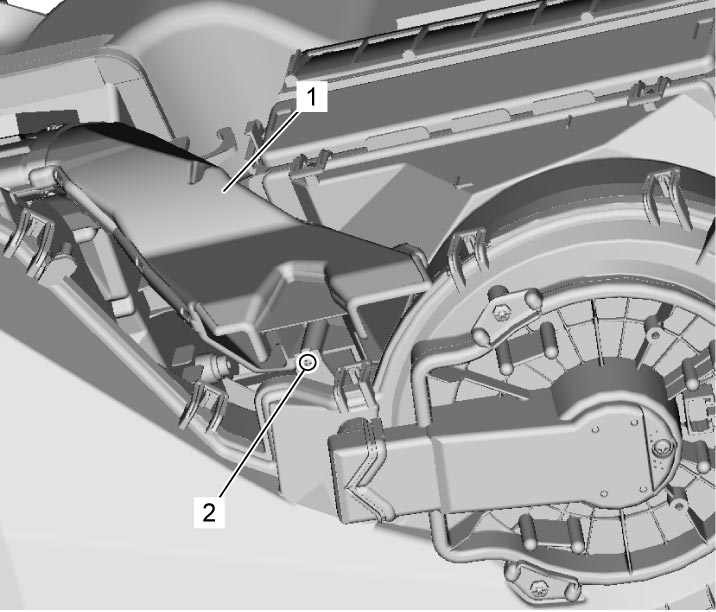

4)For LHD model, remove passenger side foot duct (1) from HVAC unit by removing screw (2).

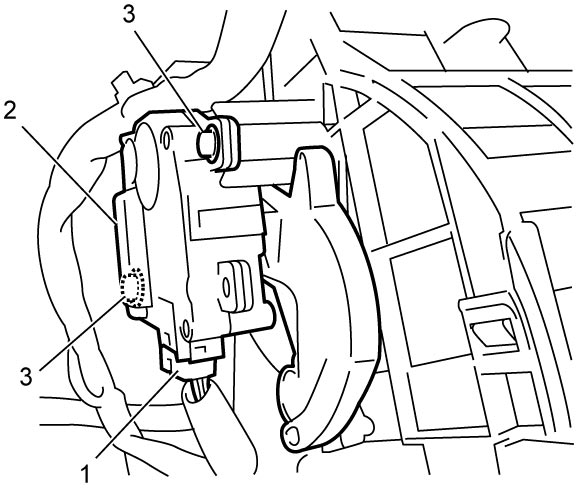

5)Disconnect air intake control actuator connector (1).
6)Remove air intake control actuator (2) by removing screws (3).
Installation
Reverse removal procedure noting the following points.

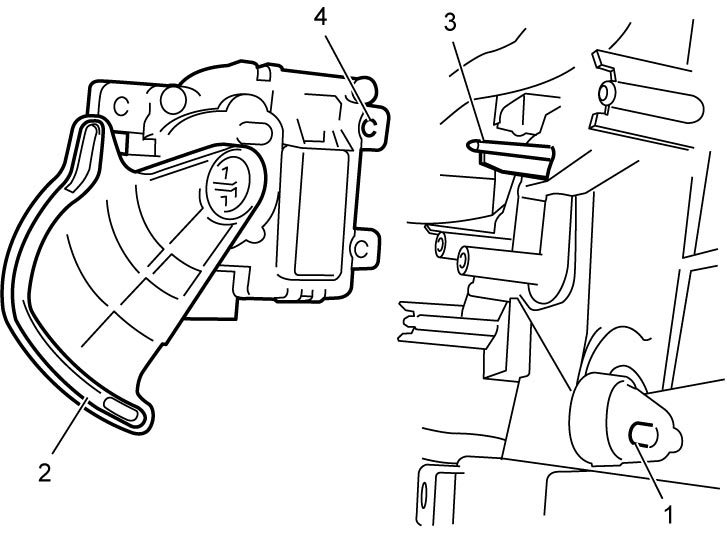

•Check that protrusion (1) on link fits into groove (2) on arm.
•Check that protrusion (3) on HVAC unit fits into hole (4) on air intake control actuator.
•Check that protrusion (3) on HVAC unit fits into hole (4) on air intake control actuator.
