Air Flow Control Actuator Inspection
Precautions: Precautions for Diagnosing Trouble · General safety (00)

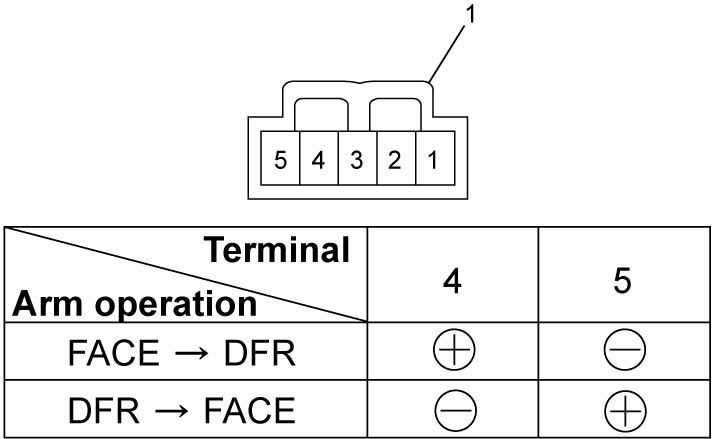

1)Set arm to actuator and check if arm operates smoothly when battery voltage is applied to terminals of actuator connector (1).
Air flow control actuator operation

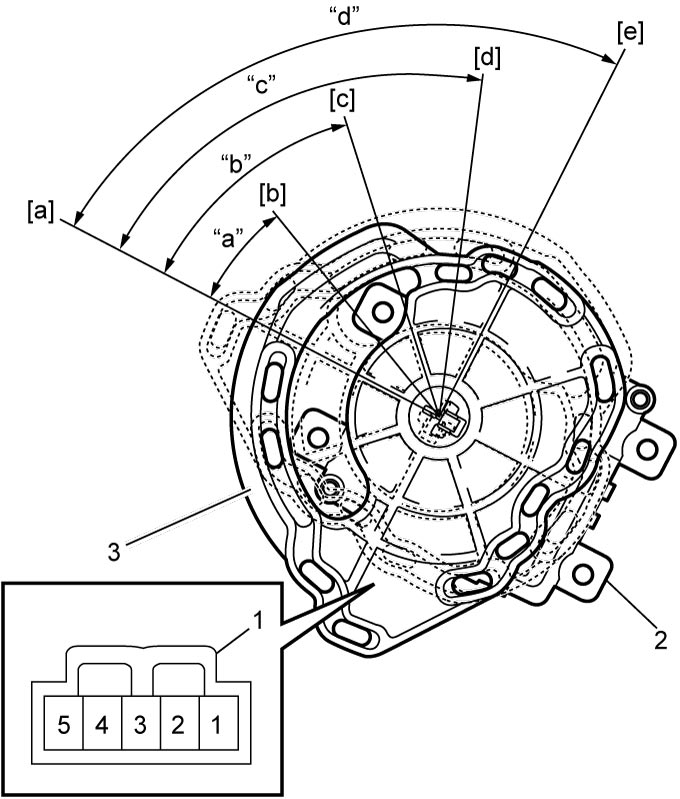

2)Using ohmmeter, measure resistance between the following terminals of actuator connector (1) at each actuator link position.
•terminal “2” and terminal “1”
Air flow control actuator resistance
| Arm position | Resistance (25 °C (77 °F)) |
|---|---|
| DFR [a] | Approx. 1.45 kΩ |
| D/F [b] | Approx. 2.35 kΩ |
| FOOT [c] | Approx. 3.25 kΩ |
| B/L [d] | Approx. 4.15 kΩ |
| FACE [e] | Approx. 5.05 kΩ |

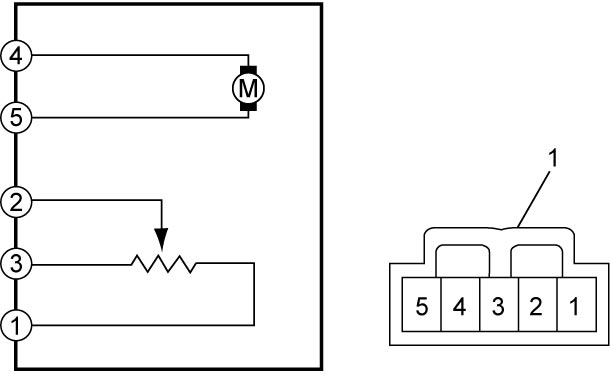

3)Using ohmmeter, measure resistance between terminal “3” and terminal “1” of actuator connector.
If check result is not as specified, replace air flow control actuator.
If check result is not as specified, replace air flow control actuator.
Air flow control actuator resistance (Total resistance)
6 kΩ
| “a”: | 22.5° | “d”: | 90° |
| “b”: | 45° | 2. | Air flow control actuator |
| “c”: | 67.5° | 3. | Arm |
