Sunload Sensor Removal and Installation
Precautions: Precautions for Diagnosing Trouble · General safety (00)
Removal
1)Disable air bag system.
2)Remove combination meter.

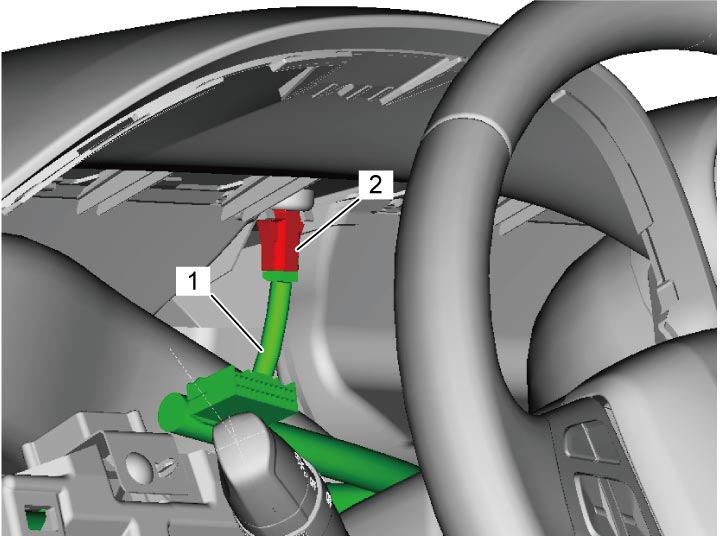

3)Disconnect sunload sensor connector (1).
4)Remove sunload sensor (2) from instrument panel by depressing tab and pushing sensor upward from underneath.
Installation
Reverse removal procedure noting the following point.

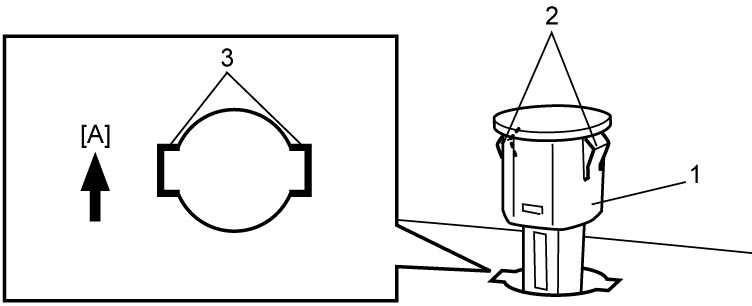

•Install sunload sensor (1) to instrument panel, fitting tabs (2) of sunload sensor into grooves (3) in instrument panel as shown in figure.
| [A]: | Vehicle forward |
