Combination Meter Removal and Installation
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Disconnect negative (–) cable at battery.

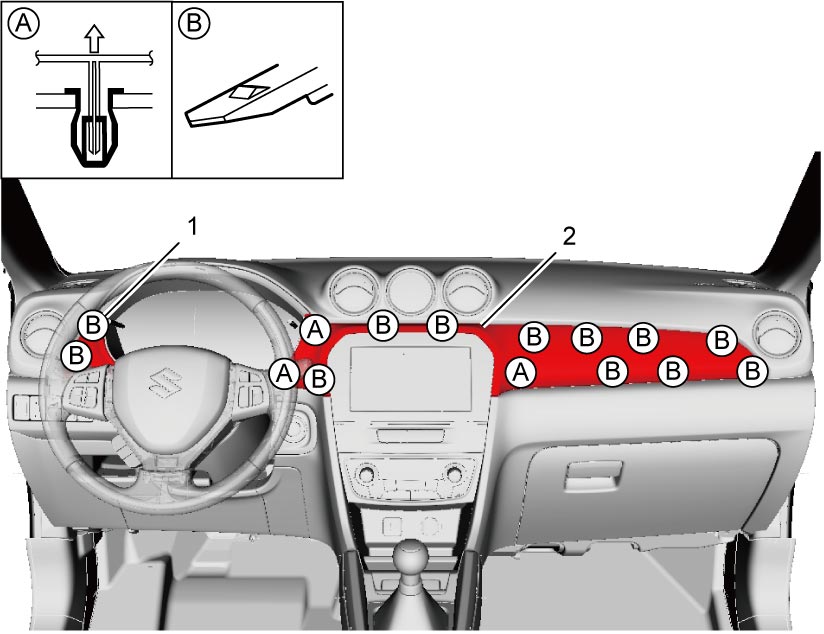

2)Remove instrument panel driver ornament (1) and instrument panel center ornament (2).

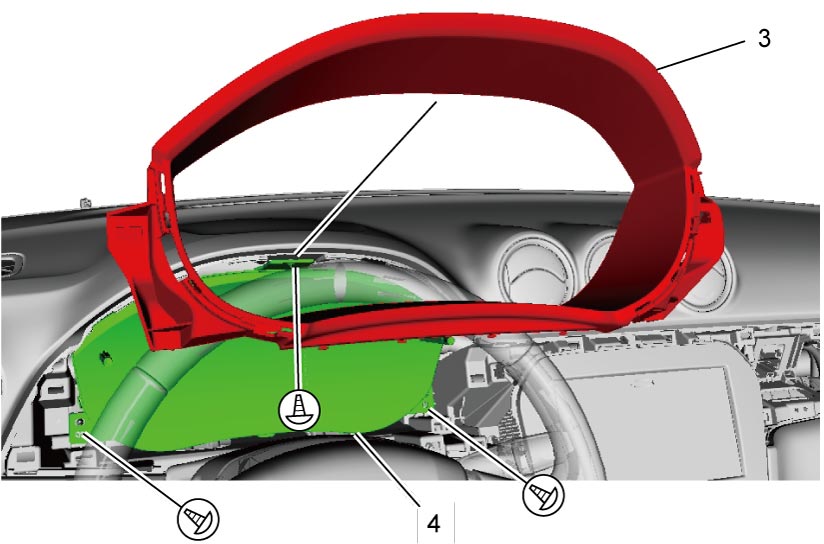

3)Remove instrument panel cluster panel (3).
4)Remove combination meter (4) from instrument panel.
5)Disconnect combination meter connector.
Installation
Reverse removal procedure.
