Relief Valve Inspection (Petrol Model)
Precautions: Precautions for Diagnosing Trouble · General safety (00)
M16A Model
K14C Model
1)Remove engine undercover.

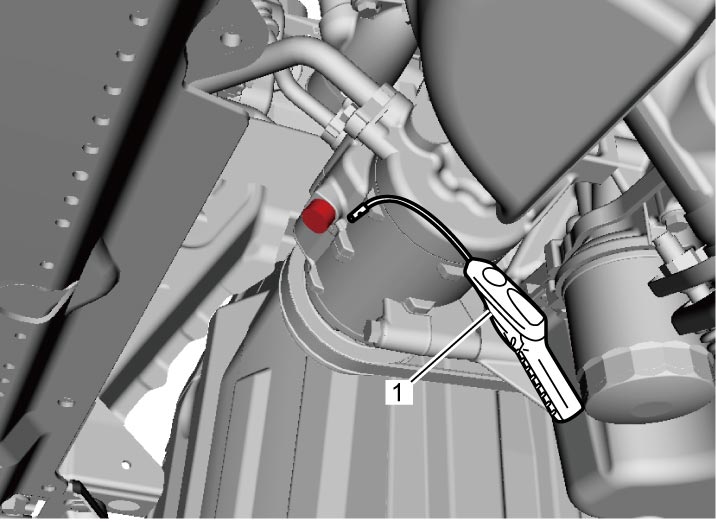

2)Check relief valve for refrigerant leakage using leak detector (1).
If there is refrigerant leakage, replace relief valve.
If there is refrigerant leakage, replace relief valve.
NOTE:
The HVAC system of this vehicle uses either of two refrigerant types, HFC-134a or HFO-1234yf. Use leak detector compatible with respective refrigerant.
