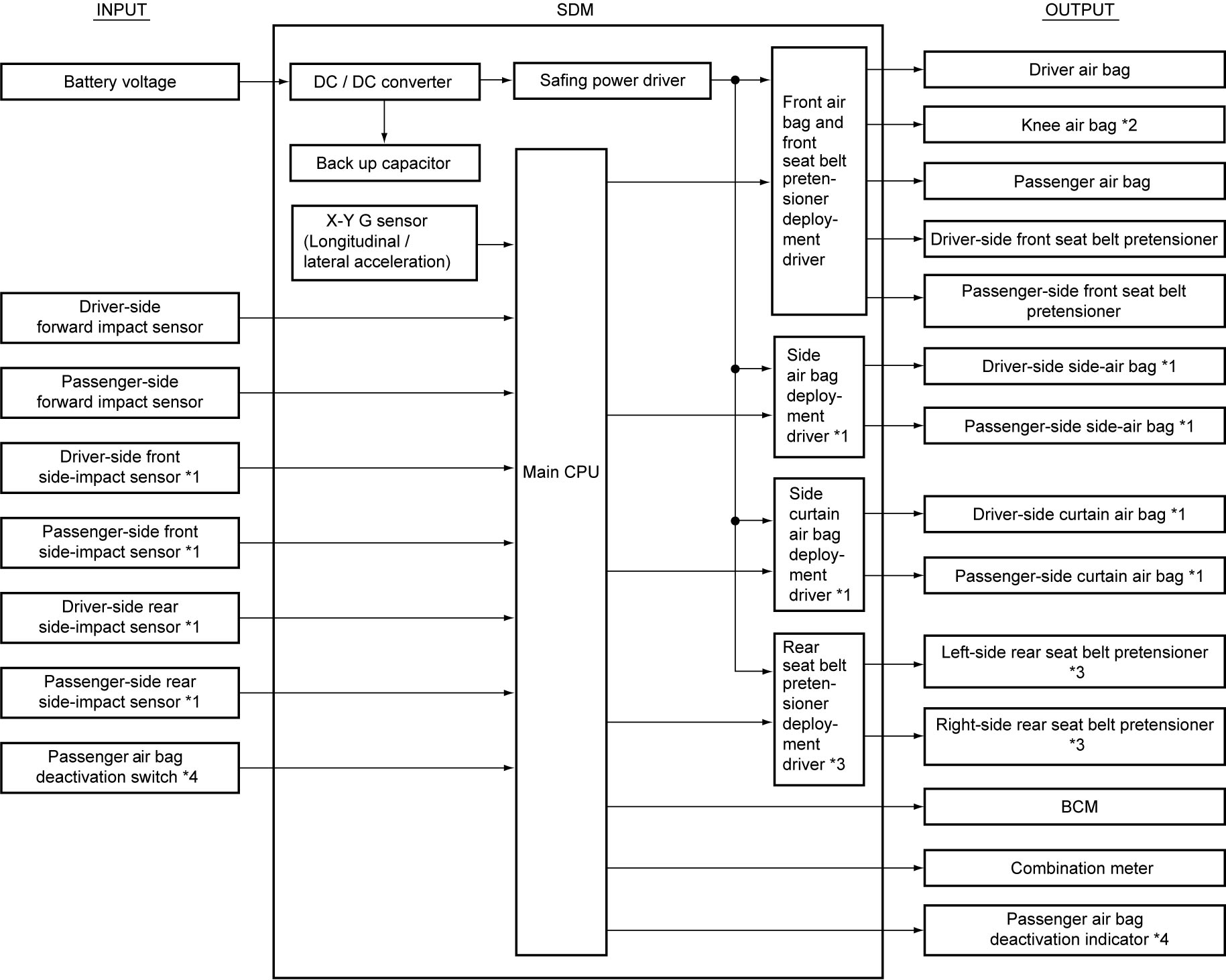

Air Bag System Input / Output Diagram

Precautions: Precautions for Air Bag System Service · Precautions for Handling and Storage of Air Bag System Components · Precautions for Disposal of Air Bag and Seat Belt Pretensioner · Precautions for Restraint · General safety (00)

NOTE:

*1: 8, 9 or 11-channel air bag system

*2: 9 or 11-channel air bag system

*3: 11-channel air bag system

*4: If equipped
