Air Bag System Component, Wiring and Connector Location
Precautions: Precautions for Air Bag System Service · Precautions for Handling and Storage of Air Bag System Components · Precautions for Disposal of Air Bag and Seat Belt Pretensioner · Precautions for Restraint · General safety (00)
NOTE:

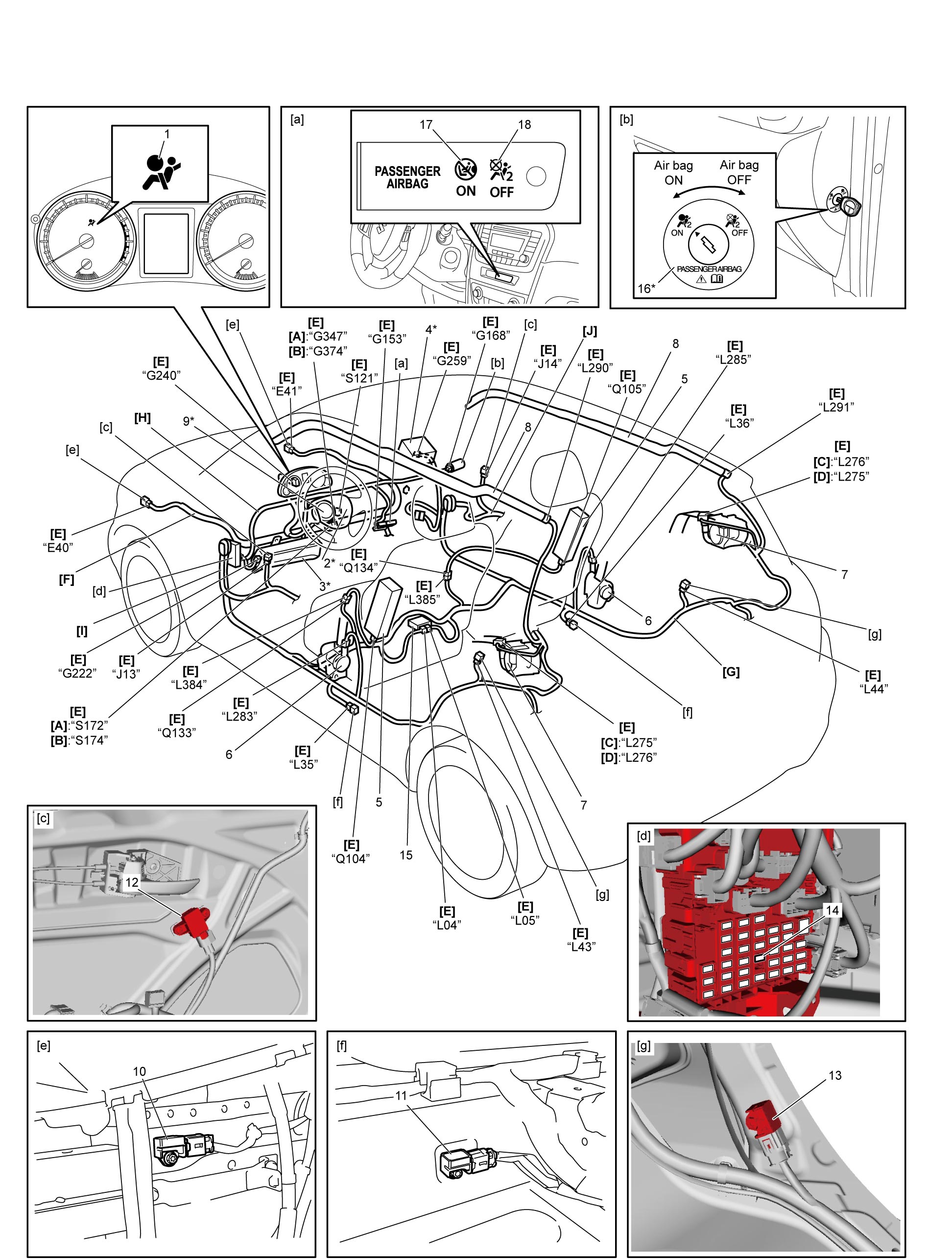

•The figure shows LHD. For RHD, parts with (*) are installed on the opposite side.
•For discrimination of market code, refer to Identification Plate.
•For discrimination of market code, refer to Identification Plate.
| [A]: | Without cruise control system | 1. | “AIR BAG” warning light | 11. | Front side-impact sensor (Market code P05, P06, P10, P30, P32, P35, P37, P38, P43,P48, P71, P85 and P96) |
| [B]: | With cruise control system | 2. | Driver air bag (inflator) module | 12. | Front side-impact sensor (Market code P02, P22, P24, P54 and P90) |
| [C]: | LHD model | 3. | Knee air bag (inflator) module (9 or 11-channel air bag system) | 13. | Rear side-impact sensor (8, 9 or 11-channel air bag system) |
| [D]: | RHD model | 4. | Passenger air bag (inflator) module | 14. | “A/B” fuse (in J/B) |
| [E]: | Connector number | 5. | Side-air bag (inflator) module (8, 9 or 11-channel air bag system) | 15. | SDM |
| [F]: | Main harness | 6. | Front seat belt pretensioner | 16. | Passenger air bag deactivation switch (if equipped) |
| [G]: | Floor harness | 7. | Rear seat belt pretensioner (11-channel air bag system) | 17. | “PASSENGER AIR BAG ON” indicator (if equipped) |
| [H]: | Instrument panel harness | 8. | Curtain air bag (inflator) module (8, 9 or 11-channel air bag system) | 18. | “PASSENGER AIR BAG OFF” indicator (if equipped) |
| [I]: | Front door wire (Driver-side) | 9. | Contact coil assembly | ||
| [J]: | Front door wire (Passenger-side) | 10. | Forward impact sensor |
