Passenger Air Bag Deactivation Switch Removal and Installation (If Equipped)
Precautions: Precautions for Air Bag System Service · Precautions for Handling and Storage of Air Bag System Components · Precautions for Disposal of Air Bag and Seat Belt Pretensioner · Precautions for Restraint · General safety (00)
Removal
1)Remove glove box.

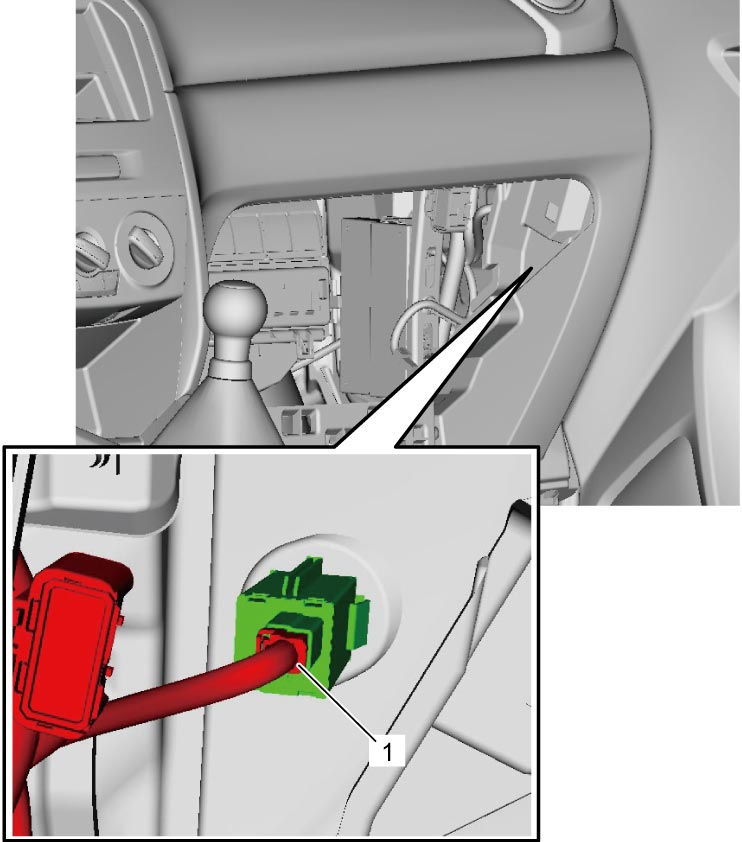

2)Disconnect passenger air bag deactivation switch connector (1).

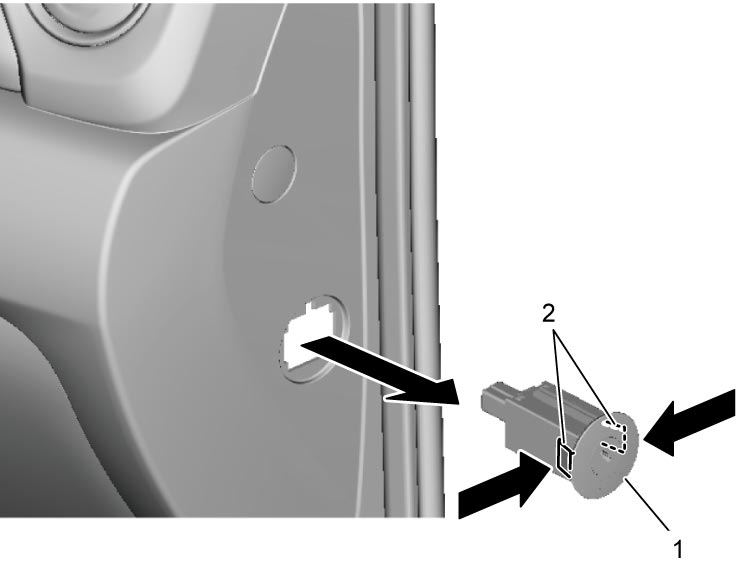

3)Remove passenger air bag deactivation switch (1) while releasing the locks (2).
Installation

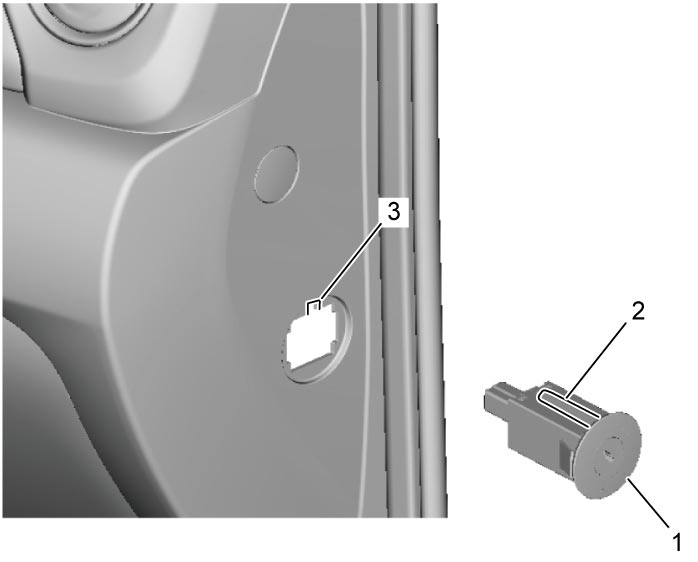

1)Install passenger air bag deactivation switch (1) aligning its projection (2) to cutout (3) of instrument panel.
2)Connect passenger air bag deactivation switch connector.
3)Install glove box.
