Engine Compartment
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)
A: Battery Cable / C: Engine Harness / D: Oil Pressure Switch Wire (M16A M/T Model)
A: Battery cable
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| A72 | - | Battery (–) |
C: Engine harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| C01 | BLK | ECM | |
| C31 | GRY | CKP sensor | |
| C32 | BLK | CMP sensor | |
| C36 | BLK | MAP sensor | |
| C37 | GRY | Knock sensor | |
| C38 | BLK | IAT sensor | |
| C39 | BLK | ECT sensor | |
| C42 | BLK | HO2S-1 | |
| C48 | BLK | Electric throttle body | |
| C56 | GRY | HO2S-2 | |
| C59 | BLK | Transfer oil temperature sensor | 4WD model |
| C64 | BLK | IMT valve actuator | |
| C91 | GRY | Fuel injector No.1 | |
| C92 | BRN | Fuel injector No.2 | |
| C93 | GRY | Fuel injector No.3 | |
| C94 | BRN | Fuel injector No.4 | |
| C101 | N | Ignition coil No.1 | |
| C102 | GRY | Ignition coil No.2 | |
| C103 | N | Ignition coil No.3 | |
| C104 | GRY | Ignition coil No.4 | |
| C123 | BLK | EVAP canister purge valve | |
| C124 | BLU | OCV | |
| C141 | BLK | A/C compressor | |
| C165 | BLK | Back up light switch | |
| C168 | BLK | Neutral position switch | |
| C192 | - | Generator (+B) | |
| C194 | GRY | Generator | |
| C195 | BLK | Starting motor | |
| C196 | - | Starting motor (+B) | |
| C282 | - | Main fuse box | |
| C283 | - | Main fuse box | |
| C341 | GRY | Oil pressure switch wire (To D241) | |
| C343 | N | Main harness (To E371) |
D: Oil pressure switch wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| D141 | - | Engine oil pressure switch | |
| D241 | GRY | Engine harness (To C341) |

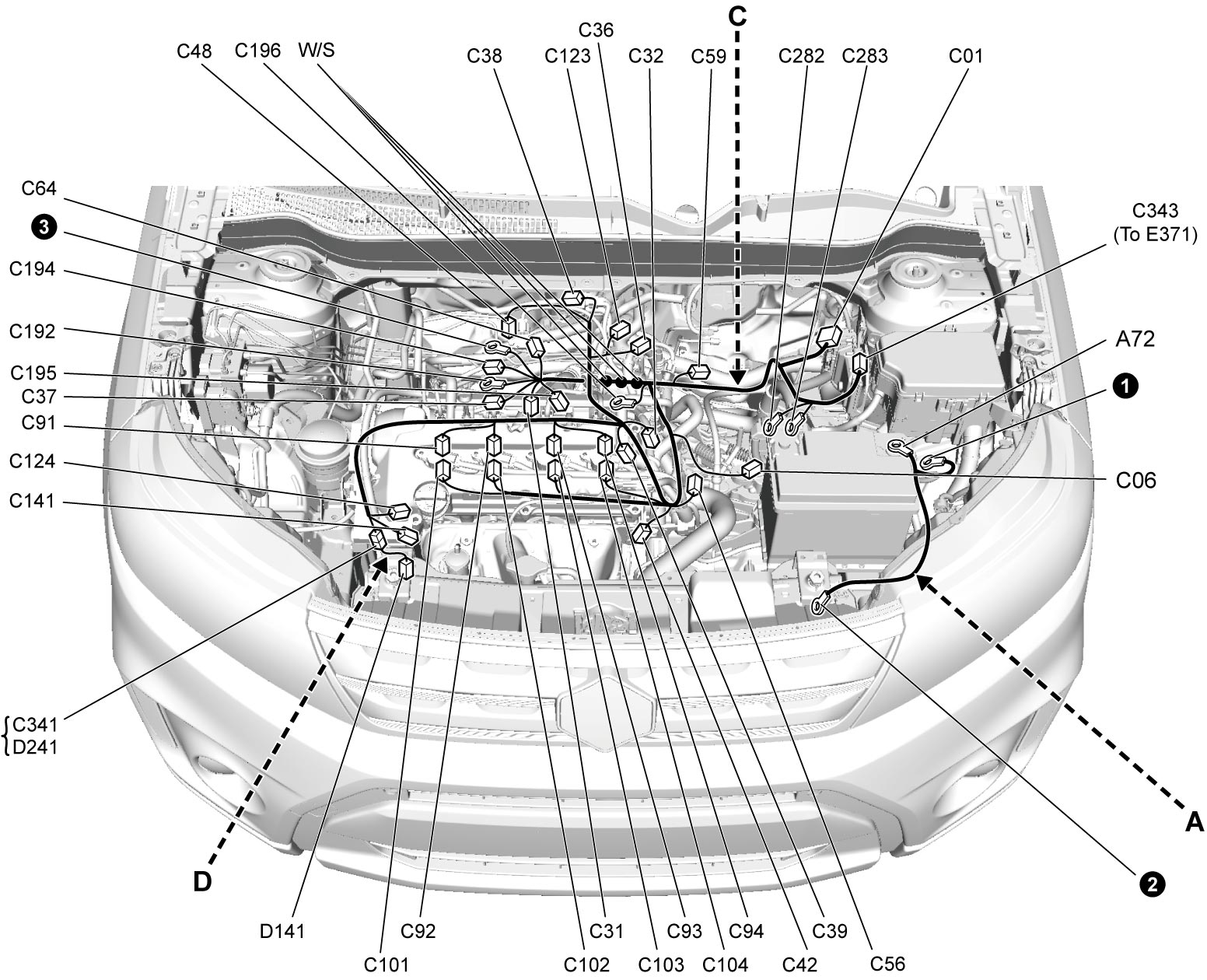

A: Battery Cable / C: Engine Harness / D: Oil Pressure Switch Wire (M16A A/T Model)
A: Battery cable
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| A72 | - | Battery (–) |
C: Engine harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| C01 | BLK | ECM | |
| C06 | BLK | TCM | |
| C31 | GRY | CKP sensor | |
| C32 | BLK | CMP sensor | |
| C36 | BLK | MAP sensor | |
| C37 | GRY | Knock sensor | |
| C38 | BLK | IAT sensor | |
| C39 | BLK | ECT sensor | |
| C42 | BLK | HO2S-1 | |
| C48 | BLK | Electric throttle body | |
| C56 | GRY | HO2S-2 | |
| C59 | BLK | Transfer oil temperature sensor | 4WD model |
| C64 | BLK | IMT valve actuator | |
| C91 | GRY | Fuel injector No.1 | |
| C92 | BRN | Fuel injector No.2 | |
| C93 | GRY | Fuel injector No.3 | |
| C94 | BRN | Fuel injector No.4 | |
| C101 | N | Ignition coil No.1 | |
| C102 | GRY | Ignition coil No.2 | |
| C103 | N | Ignition coil No.3 | |
| C104 | GRY | Ignition coil No.4 | |
| C123 | BLK | EVAP canister purge valve | |
| C124 | BLU | OCV | |
| C141 | BLK | A/C compressor | |
| C192 | - | Generator (+B) | |
| C194 | GRY | Generator | |
| C195 | BLK | Starting motor | |
| C196 | - | Starting motor (+B) | |
| C282 | - | Main fuse box | |
| C283 | - | Main fuse box | |
| C341 | GRY | Oil pressure switch wire (To D241) | |
| C343 | N | Main harness (To E371) |
D: Oil pressure switch wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| D141 | - | Engine oil pressure switch | |
| D241 | GRY | Engine harness (To C341) |

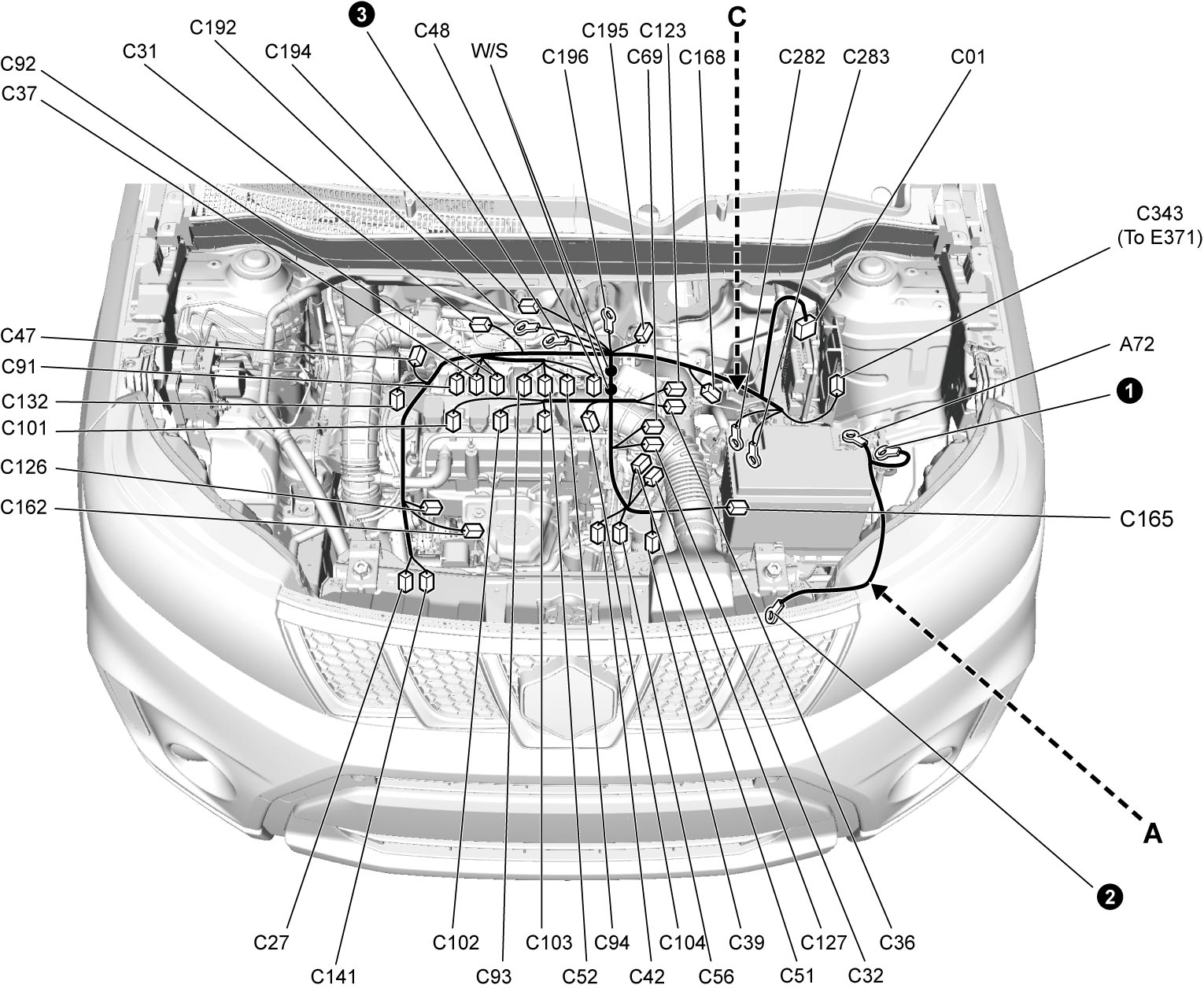

A: Battery Cable / C: Engine Harness (K14C M/T Model)
A: Battery cable
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| A72 | - | Battery (–) |
C: Engine harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| C01 | BLK | ECM | |
| C27 | GRY | Engine oil temperature sensor | |
| C31 | BLU or GRY | CKP sensor | |
| C32 | BLK | CMP sensor | |
| C36 | BLK | MAP sensor | |
| C37 | BLK | Knock sensor | |
| C39 | BLK | ECT sensor | |
| C42 | GRY | HO2S-1 | |
| C47 | BLK | MAF and IAT sensor | |
| C48 | BLK | Electric throttle body | |
| C51 | BLK | Boost pressure sensor | |
| C52 | BLK | Fuel pressure sensor | |
| C56 | BLK | HO2S-2 | |
| C59 | BLK | Transfer oil temperature sensor | 4WD model |
| C69 | GRY | High pressure fuel pump | |
| C91 | GRY | Fuel injector No.1 | |
| C92 | BRN | Fuel injector No.2 | |
| C93 | GRY | Fuel injector No.3 | |
| C94 | BRN | Fuel injector No.4 | |
| C101 | N | Ignition coil No.1 | |
| C102 | GRY | Ignition coil No.2 | |
| C103 | N | Ignition coil No.3 | |
| C104 | GRY | Ignition coil No.4 | |
| C123 | BLU | EVAP canister purge valve | |
| C126 | BLK | Air bypass valve | |
| C127 | BLK | Waste gate valve | |
| C132 | BLK | Intake OCV | |
| C141 | BLK | A/C compressor | |
| C162 | GRY | Engine oil pressure switch | |
| C165 | BLK | Back up light switch | |
| C168 | BLK | Neutral position switch | |
| C192 | - | Generator (+B) | |
| C194 | GRY | Generator | |
| C195 | BLK | Starting motor | |
| C196 | - | Starting motor (+B) | |
| C282 | - | Main fuse box | |
| C283 | - | Main fuse box | |
| C341 | GRY | Oil pressure switch wire (To D241) | |
| C343 | N | Main harness (To E371) |

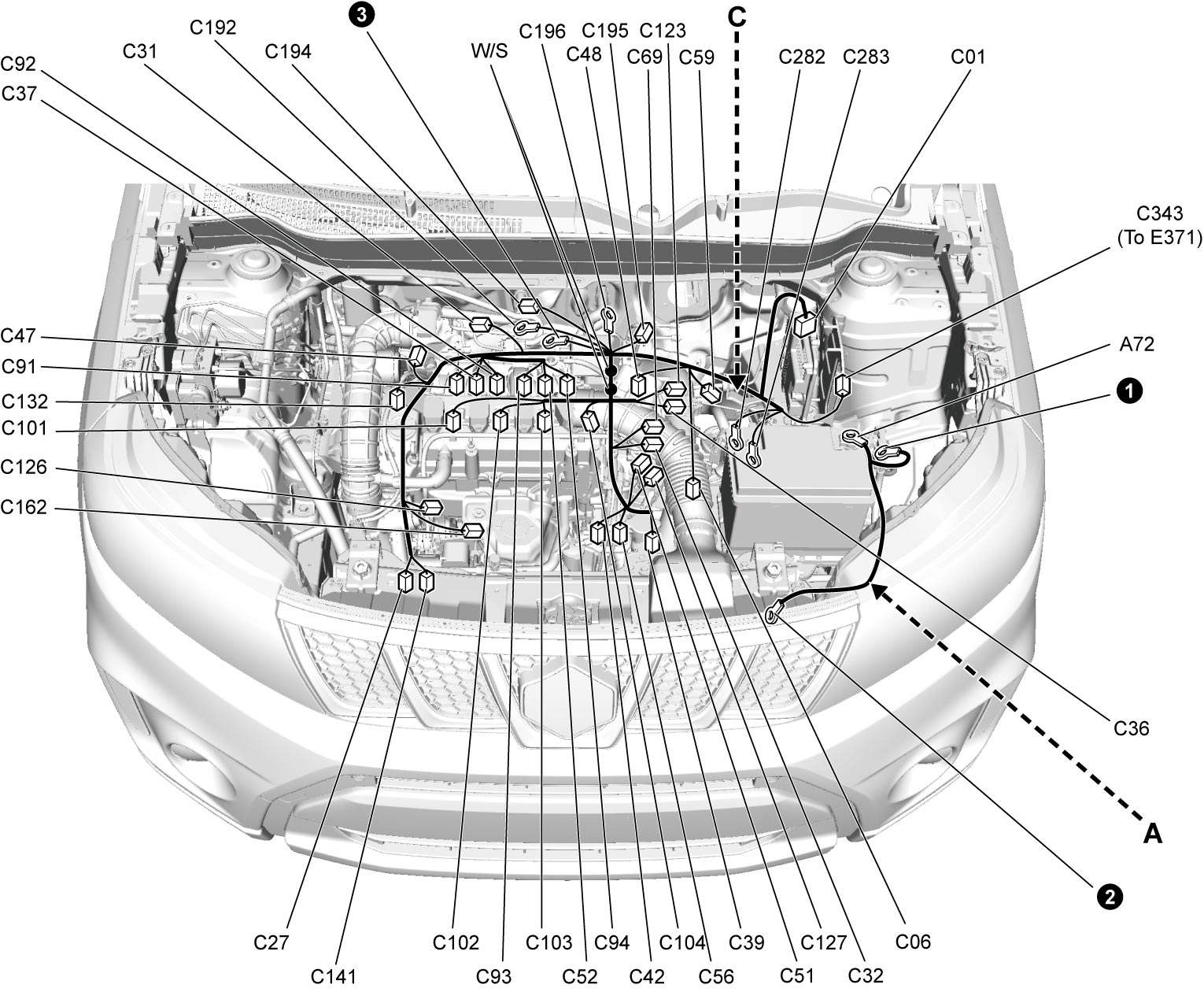

A: Battery Cable / C: Engine Harness (K14C A/T Model)
A: Battery cable
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| A72 | - | Battery (–) |
C: Engine harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| C01 | BLK | ECM | |
| C06 | BLK | TCM | |
| C27 | GRY | Engine oil temperature sensor | |
| C31 | BLU or GRY | CKP sensor | |
| C32 | BLK | CMP sensor | |
| C36 | BLK | MAP sensor | |
| C37 | BLK | Knock sensor | |
| C39 | BLK | ECT sensor | |
| C42 | GRY | HO2S-1 | |
| C47 | BLK | MAF and IAT sensor | |
| C48 | BLK | Electric throttle body | |
| C51 | BLK | Boost pressure sensor | |
| C52 | BLK | Fuel pressure sensor | |
| C56 | BLK | HO2S-2 | |
| C59 | BLK | Transfer oil temperature sensor | 4WD model |
| C69 | GRY | High pressure fuel pump | |
| C91 | GRY | Fuel injector No.1 | |
| C92 | BRN | Fuel injector No.2 | |
| C93 | GRY | Fuel injector No.3 | |
| C94 | BRN | Fuel injector No.4 | |
| C101 | N | Ignition coil No.1 | |
| C102 | GRY | Ignition coil No.2 | |
| C103 | N | Ignition coil No.3 | |
| C104 | GRY | Ignition coil No.4 | |
| C123 | BLU | EVAP canister purge valve | |
| C126 | BLK | Air bypass valve | |
| C127 | BLK | Waste gate valve | |
| C132 | BLK | Intake OCV | |
| C141 | BLK | A/C compressor | |
| C162 | GRY | Engine oil pressure switch | |
| C192 | - | Generator (+B) | |
| C194 | GRY | Generator | |
| C195 | BLK | Starting motor | |
| C196 | - | Starting motor (+B) | |
| C282 | - | Main fuse box | |
| C283 | - | Main fuse box | |
| C341 | GRY | Oil pressure switch wire (To D241) | |
| C343 | N | Main harness (To E371) |

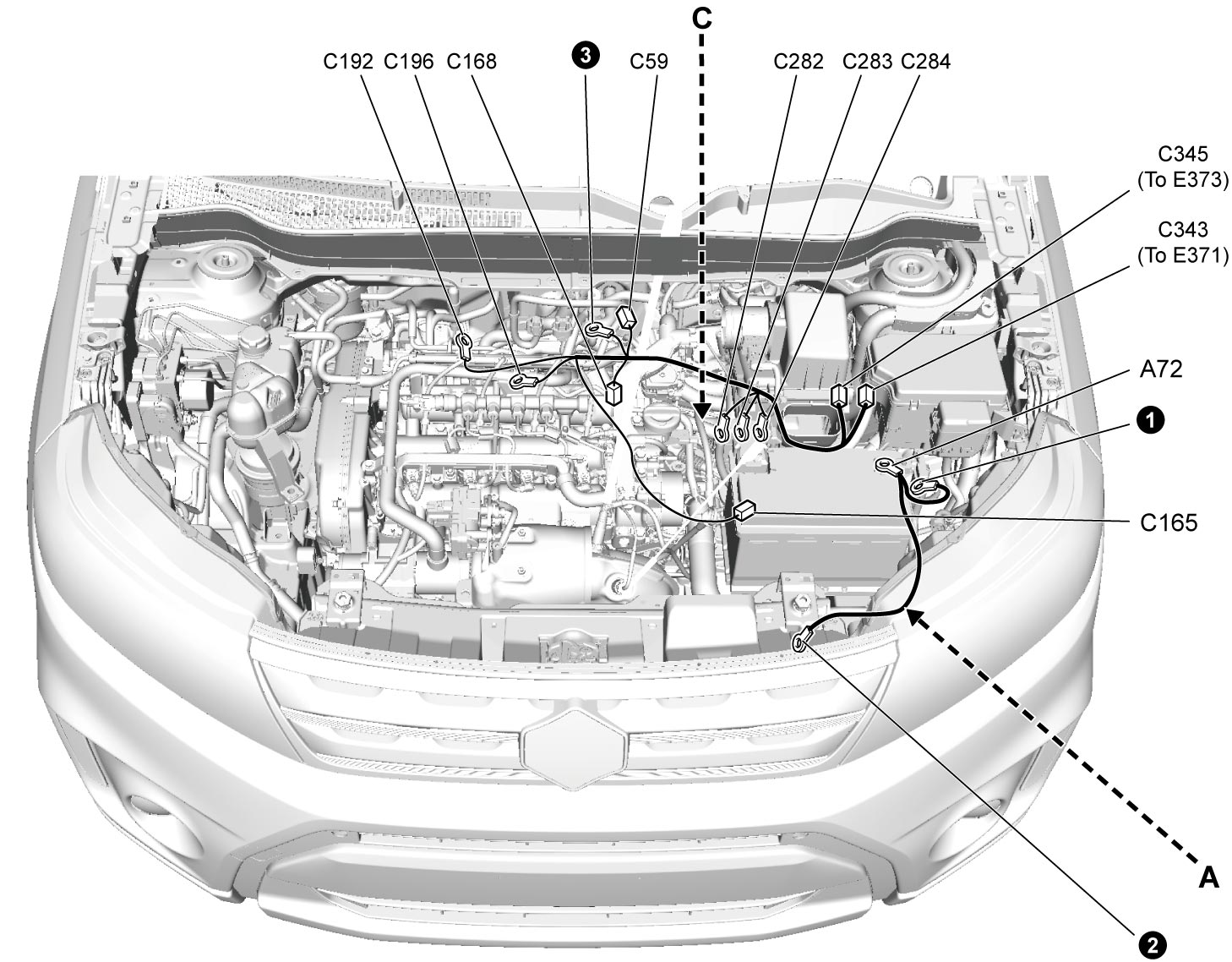

A: Battery Cable / C: Engine Harness (D16AA M/T Model)
A: Battery cable
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| A72 | - | Battery (–) |
C: Engine harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| C59 | BLK | Transfer oil temperature sensor | 4WD model |
| C165 | BLK | Back up light switch | |
| C168 | BLK | Neutral position switch | |
| C192 | - | Generator (+B) | |
| C196 | - | Starting motor (+B) | |
| C282 | - | Main fuse box | |
| C283 | - | Main fuse box | |
| C284 | - | Main fuse box | If equipped |
| C343 | N | Main harness (To E371) | |
| C345 | N | Main harness (To E373) | If equipped |

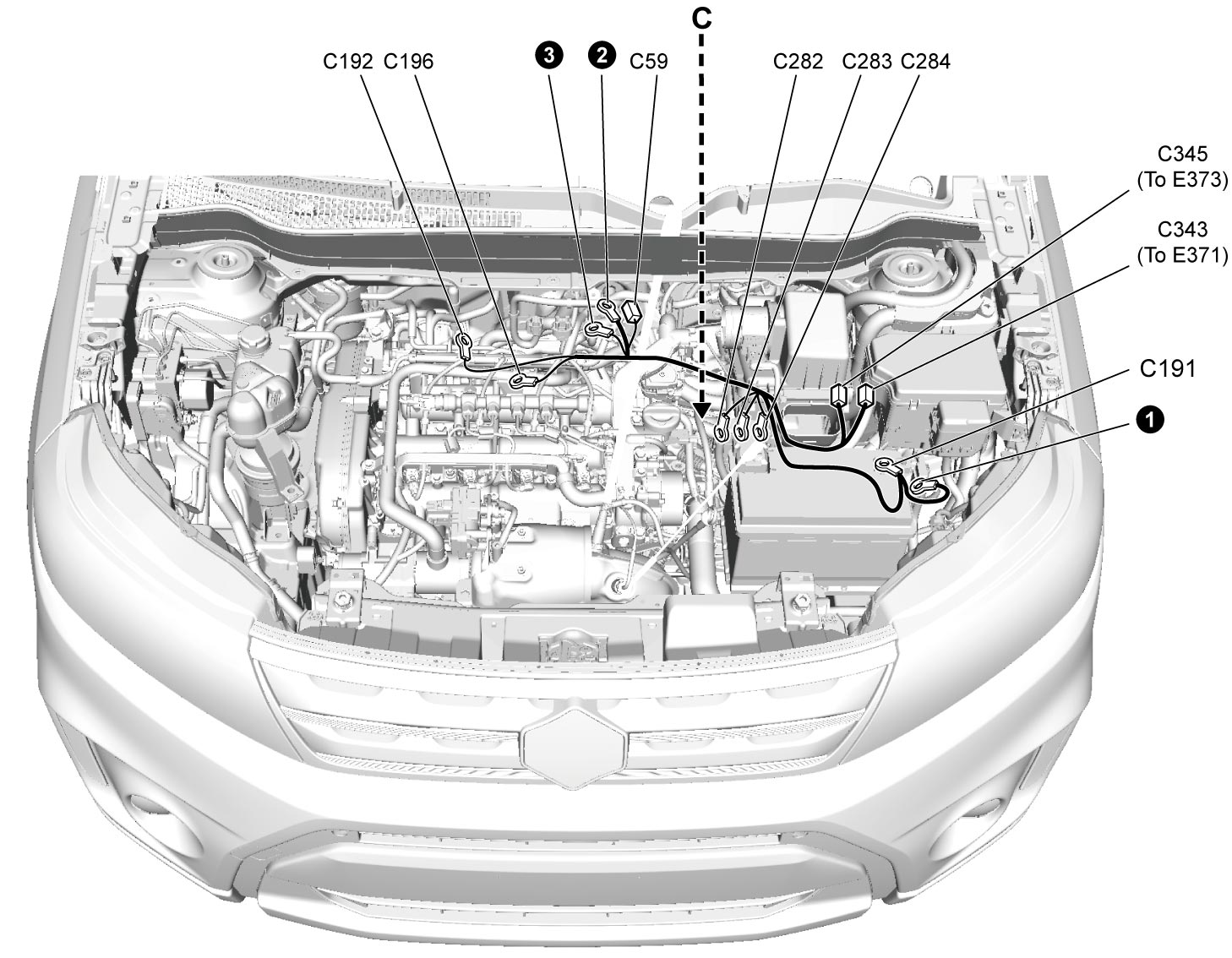

C: Engine Harness (D16AA Twin Clutch System Model)
C: Engine harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| C59 | BLK | Transfer oil temperature sensor | 4WD model |
| C191 | - | Battery (–) | |
| C192 | - | Generator (+B) | |
| C196 | - | Starting motor (+B) | |
| C282 | - | Main fuse box | |
| C283 | - | Main fuse box | |
| C284 | - | Main fuse box | If equipped |
| C343 | N | Main harness (To E371) | |
| C345 | N | Main harness (To E373) | If equipped |

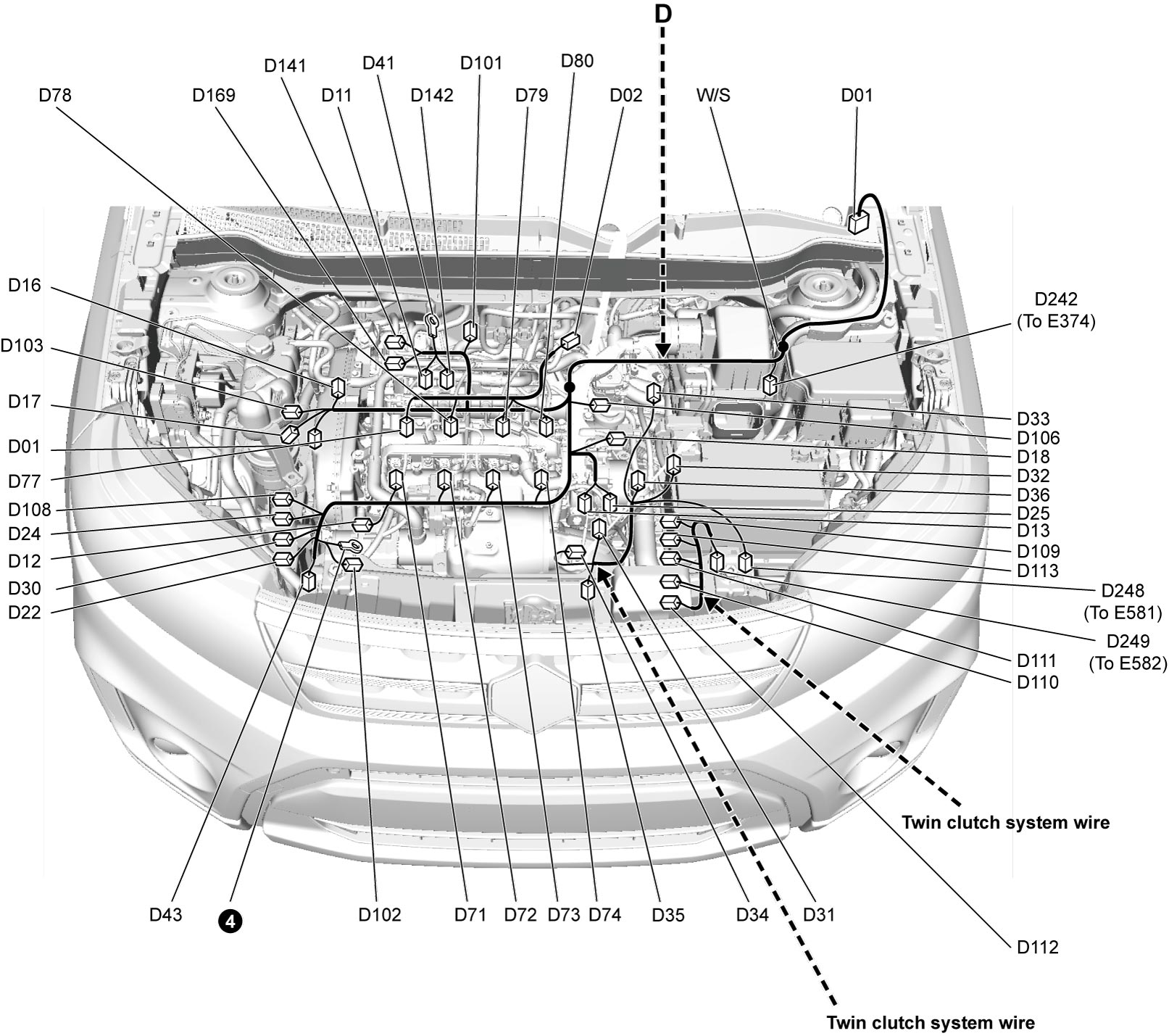

D: Injector Harness, Twin Clutch System Wire (D16AA)
D: Injector harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| D01 | - | ECM | |
| D02 | - | Glow control module | |
| D11 | - | CKP sensor | |
| D12 | - | CMP sensor | |
| D13 | - | ECT sensor | |
| D16 | - | Boost pressure sensor with IAT sensor-2 | |
| D17 | - | Fuel pressure sensor | |
| D18 | - | EGT sensor-1 | |
| D22 | - | EGT sensor-2 | |
| D24 | - | Turbocharger actuator sensor | |
| D25 | - | A/F sensor-2 | |
| D30 | - | EGT sensor-4 | |
| D41 | - | Starting motor | |
| D43 | - | Oil pump actuator | |
| D71 | - | Fuel injector No.1 | |
| D72 | - | Fuel injector No.2 | |
| D73 | - | Fuel injector No.3 | |
| D74 | - | Fuel injector No.4 | |
| D77 | - | Glow plug No.1 | |
| D78 | - | Glow plug No.2 | |
| D79 | - | Glow plug No.3 | |
| D80 | - | Glow plug No.4 | |
| D101 | - | EGR valve-1 | |
| D102 | - | A/C compressor | |
| D103 | - | Fuel pressure regulator valve | |
| D106 | - | Inlet throttle valve | |
| D108 | - | EGR valve-2 | |
| D141 | - | Engine oil pressure switch No.1 | |
| D142 | - | Engine oil pressure switch No.2 | |
| D169 | - | Generator | |
| D242 | - | Main harness (To E374) |
D: Twin Clutch System Wire (Twin Clutch System Model)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| D31 | - | Line pressure sensor | |
| D32 | - | Parking position sensor | |
| D33 | - | Clutch position sensor No.1 | |
| D34 | - | Clutch position sensor No.2 | |
| D35 | - | Shift position sensor | |
| D36 | - | RPM and position sensor | |
| D109 | - | Clutch solenoid valve No.1 | |
| D110 | - | Clutch solenoid valve No.2 | |
| D111 | - | Gear solenoid valve No.1 | |
| D112 | - | Gear solenoid valve No.2 | |
| D113 | - | Shift solenoid valve | |
| D248 | - | Main harness (To E581) | |
| D249 | - | Main harness (To E582) |

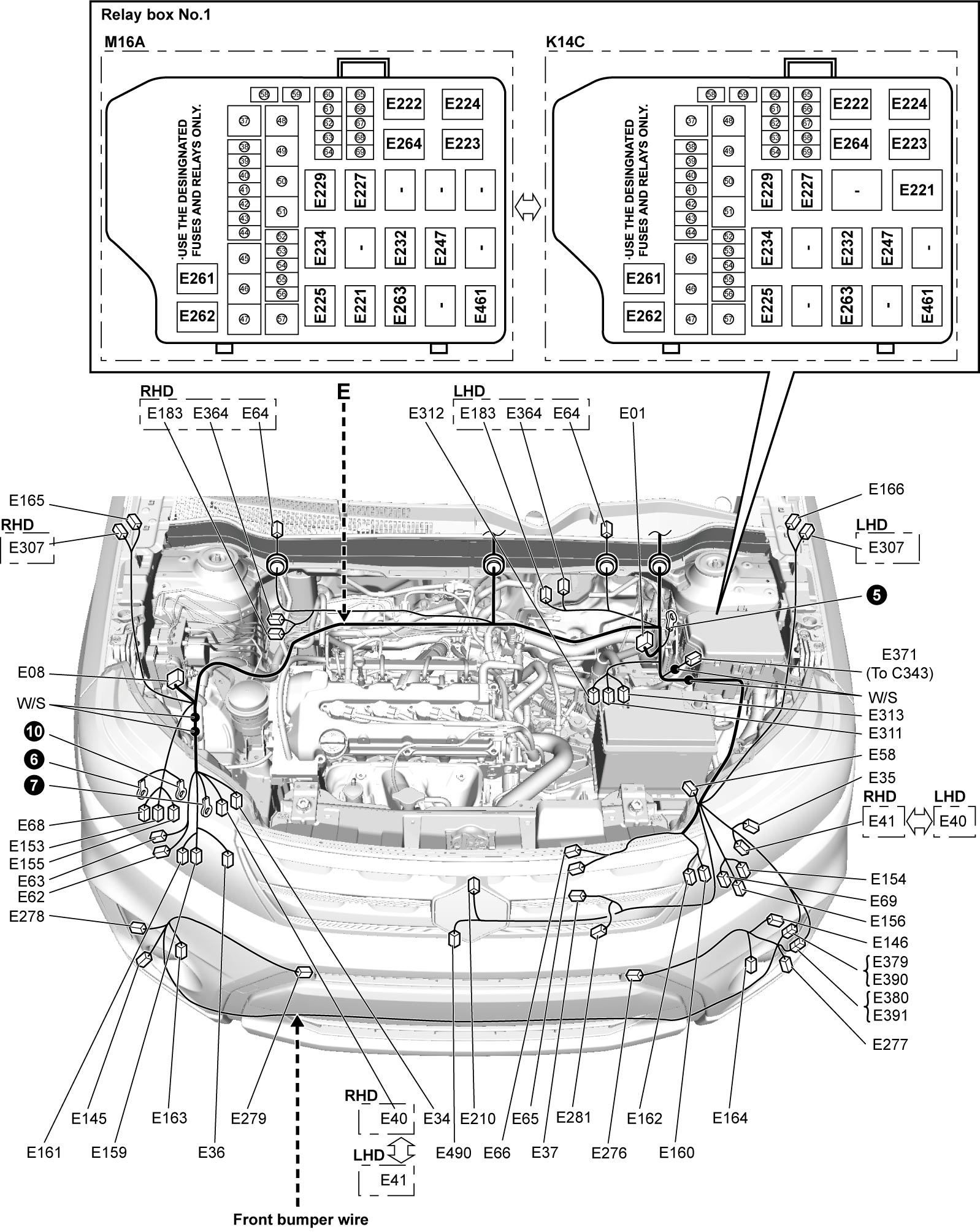

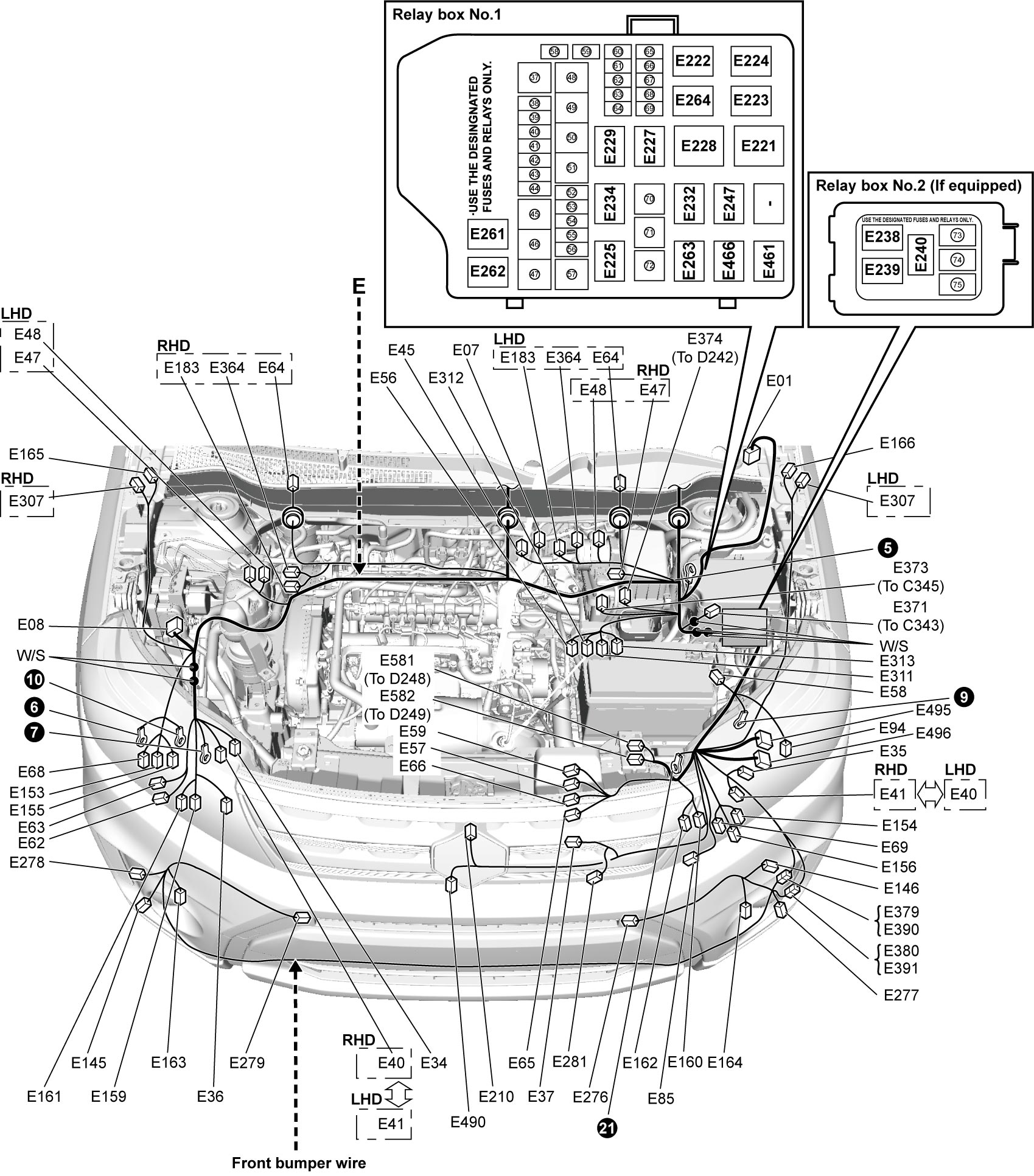

E: Main Harness, Front Bumper Wire (Petrol Model)
E: Main harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| E01 | BLK | ECM | |
| E08 | BLK | ESP® control module | |
| E34 | BLK | Wheel speed sensor (Front-right) | |
| E35 | BLK | Wheel speed sensor (Front-left) | |
| E36 | BLK | A/C refrigerant pressure sensor | |
| E37 | BLK | Outside air temperature sensor | |
| E40 | YEL | Driver-side forward impact sensor | |
| E41 | YEL | Passenger-side forward impact sensor | |
| E58 | GRY | Electric load current sensor & battery temperature sensor | ENG A-STOP model |
| E62 | BLK | Windshield washer motor | |
| E63 | BLK | Rear washer motor | |
| E64 | GRY | Windshield wiper motor | |
| E65 | GRY | Radiator cooling fan motor (No.1) | |
| E66 | GRY | Radiator cooling fan motor No.2 | K14C |
| E68 | GRY | Headlight leveling actuator (R) | |
| E69 | GRY | Headlight leveling actuator (L) | |
| E153 | BLK | Headlight HI (R) | |
| E154 | BLK | Headlight HI (L) | |
| E155 | BLK or GRY | Headlight LO (R) | |
| E156 | BLK or GRY | Headlight LO (L) | |
| E159 | GRY | Front turn signal light (R) | |
| E160 | GRY | Front turn signal light (L) | |
| E161 | GRY | Clearance light (R) | |
| E162 | GRY | Clearance light (L) | |
| E165 | N | Side turn signal light (R) | With side turn signal light |
| E166 | N | Side turn signal light (L) | With side turn signal light |
| E183 | GRY | Brake fluid level switch | |
| E210 | BLK | Hood latch switch | ENG A-STOP model |
| E221 | BLK | Main relay | |
| E222 | BLK | Radiator cooling fan relay No.1 | |
| E223 | GRY | Radiator cooling fan relay No.2 | |
| E224 | GRY | Radiator cooling fan relay No.3 | |
| E225 | BLK | Starting motor control relay | |
| E227 | BLK | Fuel pump relay | |
| E229 | BLK | A/C compressor relay | |
| E232 | BLK | Headlight HI relay | |
| E234 | BLK | Front fog light relay | If equipped |
| E247 | BLK | Headlight LO relay | |
| E261 | N | Windshield wiper relay | If equipped |
| E262 | N | Windshield wiper HI / LO relay | If equipped |
| E263 | GRY | Back up light relay | A/T model |
| E264 | BLK | Brake light relay | With RBS |
| E281 | BLK | Horn | |
| E307 | BLK | Outside warning buzzer | Keyless push start model |
| E311 | BRN | Main fuse box | |
| E312 | GRY | Main fuse box | |
| E313 | BLK | Main fuse box | |
| E364 | GRY | Brake booster pressure sensor | ENG A-STOP model |
| E371 | N | Engine harness (To C343) | |
| E390 | GRY | Front bumper wire (To E379) | If equipped |
| E391 | BLK | Front bumper wire (To E380) | With parking sensor system |
| E461 | GRY | ST2 relay | ENG A-STOP model |
| E490 | BLK | RBS control module | With RBS |
E: Front bumper wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| E145 | GRY | DRL (R) / LED DRL (R) | With DRL |
| E146 | GRY | DRL (L) / LED DRL (L) | With DRL |
| E163 | BLK | Front fog light (R) | If equipped |
| E164 | BLK | Front fog light (L) | If equipped |
| E276 | BLK | Front parking sensor No.1 | With parking sensor system |
| E277 | BLK | Front parking sensor No.2 | With parking sensor system |
| E278 | BLK | Front parking sensor No.3 | With parking sensor system |
| E279 | BLK | Front parking sensor No.4 | With parking sensor system |
| E379 | GRY | Main harness (To E390) | If equipped |
| E380 | BLK | Main harness (To E391) | With parking sensor system |
E: Main Harness, Front Bumper Wire (Diesel Model)
E: Main harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| E01 | BLK | ECM | |
| E07 | BLK | Glow control module | |
| E08 | BLK | ESP® control module | |
| E34 | BLK | Wheel speed sensor (Front-right) | |
| E35 | BLK | Wheel speed sensor (Front-left) | |
| E36 | BLK | A/C refrigerant pressure sensor | |
| E37 | BLK | Outside air temperature sensor | |
| E40 | YEL | Driver-side forward impact sensor | |
| E41 | YEL | Passenger-side forward impact sensor | |
| E45 | BLK | DPF® differential pressure sensor | |
| E47 | BLK | Fuel filter water detection sensor | |
| E48 | BLK | Fuel heater with fuel temperature sensor | |
| E56 | BLK | MAF and IAT sensor-1 | |
| E57 | BLK | A/F sensor-1 | |
| E58 | GRY | Electric load current sensor & battery temperature sensor | |
| E59 | BLK | EGT sensor-3 | |
| E62 | BLK | Windshield washer motor | |
| E63 | BLK | Rear washer motor | |
| E64 | GRY | Windshield wiper motor | |
| E65 | GRY | Radiator cooling fan motor No.1 | |
| E66 | GRY | Radiator cooling fan motor No.2 | |
| E68 | GRY | Headlight leveling actuator (R) | |
| E69 | GRY | Headlight leveling actuator (L) | |
| E85 | BLK | Electric motor | Twin clutch system model |
| E94 | BLK | Smart drive unit | Twin clutch system model |
| E153 | BLK | Headlight HI (R) | |
| E154 | BLK | Headlight HI (L) | |
| E155 | BLK or GRY | Headlight LO (R) | |
| E156 | BLK or GRY | Headlight LO (L) | |
| E159 | GRY | Front turn signal light (R) | |
| E160 | GRY | Front turn signal light (L) | |
| E161 | GRY | Clearance light (R) | |
| E162 | GRY | Clearance light (L) | |
| E165 | N | Side turn signal light (R) | With side turn signal light |
| E166 | N | Side turn signal light (L) | With side turn signal light |
| E183 | GRY | Brake fluid level switch | |
| E210 | BLK | Hood latch switch | ENG A-STOP model |
| E221 | BLK | Main relay | |
| E222 | BLK | Radiator cooling fan relay No.1 | |
| E223 | GRY | Radiator cooling fan relay No.2 | |
| E224 | GRY | Radiator cooling fan relay No.3 | |
| E225 | BLK | Starting motor control relay | |
| E227 | BLK | Fuel pump relay | |
| E228 | BLK | Fuel heater relay | |
| E229 | BLK | A/C compressor relay | |
| E232 | BLK | Headlight HI relay | |
| E234 | BLK | Front fog light relay | If equipped |
| E238 | BLK | Additional heater relay No.1 | If equipped |
| E239 | BLK | Additional heater relay No.2 | If equipped |
| E240 | BLK | Additional heater relay No.3 | If equipped |
| E247 | BLK | Headlight LO relay | |
| E261 | N | Windshield wiper relay | If equipped |
| E262 | N | Windshield wiper HI / LO relay | If equipped |
| E263 | GRY | Back up light relay | Twin clutch system model |
| E264 | BLK | Brake light relay | With RBS |
| E281 | BLK | Horn | |
| E307 | BLK | Outside warning buzzer | Keyless push start model |
| E311 | BRN | Main fuse box | |
| E312 | GRY | Main fuse box | |
| E313 | BLK | Main fuse box | |
| E364 | GRY | Brake booster pressure sensor | ENG A-STOP model |
| E371 | N | Engine harness (To C343) | |
| E373 | N | Engine harness (To C345) | If equipped |
| E374 | BLK | Fuel injector harness (To D242) | |
| E390 | GRY | Front bumper wire (To E379) | If equipped |
| E391 | BLK | Front bumper harness (To E380) | With parking sensor system |
| E461 | GRY | ST2 relay | ENG A-STOP model |
| E466 | GRY | ST3 relay | Twin clutch system model |
| E490 | BLK | RBS control module | With RBS |
| E495 | BLK | TCM | Twin clutch system model |
| E496 | BLK | TCM | Twin clutch system model |
| E581 | GRY | Twin clutch system wire (To D248) | Twin clutch system model |
| E582 | BLK | Twin clutch system wire (To D249) | Twin clutch system model |
E: Front bumper wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| E145 | GRY | DRL (R) / LED DRL (R) | With DRL |
| E146 | GRY | DRL (L) / LED DRL (L) | With DRL |
| E163 | BLK | Front fog light (R) | If equipped |
| E164 | BLK | Front fog light (L) | If equipped |
| E276 | BLK | Front parking sensor No.1 | With parking sensor system |
| E277 | BLK | Front parking sensor No.2 | With parking sensor system |
| E278 | BLK | Front parking sensor No.3 | With parking sensor system |
| E279 | BLK | Front parking sensor No.4 | With parking sensor system |
| E379 | GRY | Main harness (To E390) | If equipped |
| E380 | BLK | Main harness (To E391) | With parking sensor system |
