Instrument Panel
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

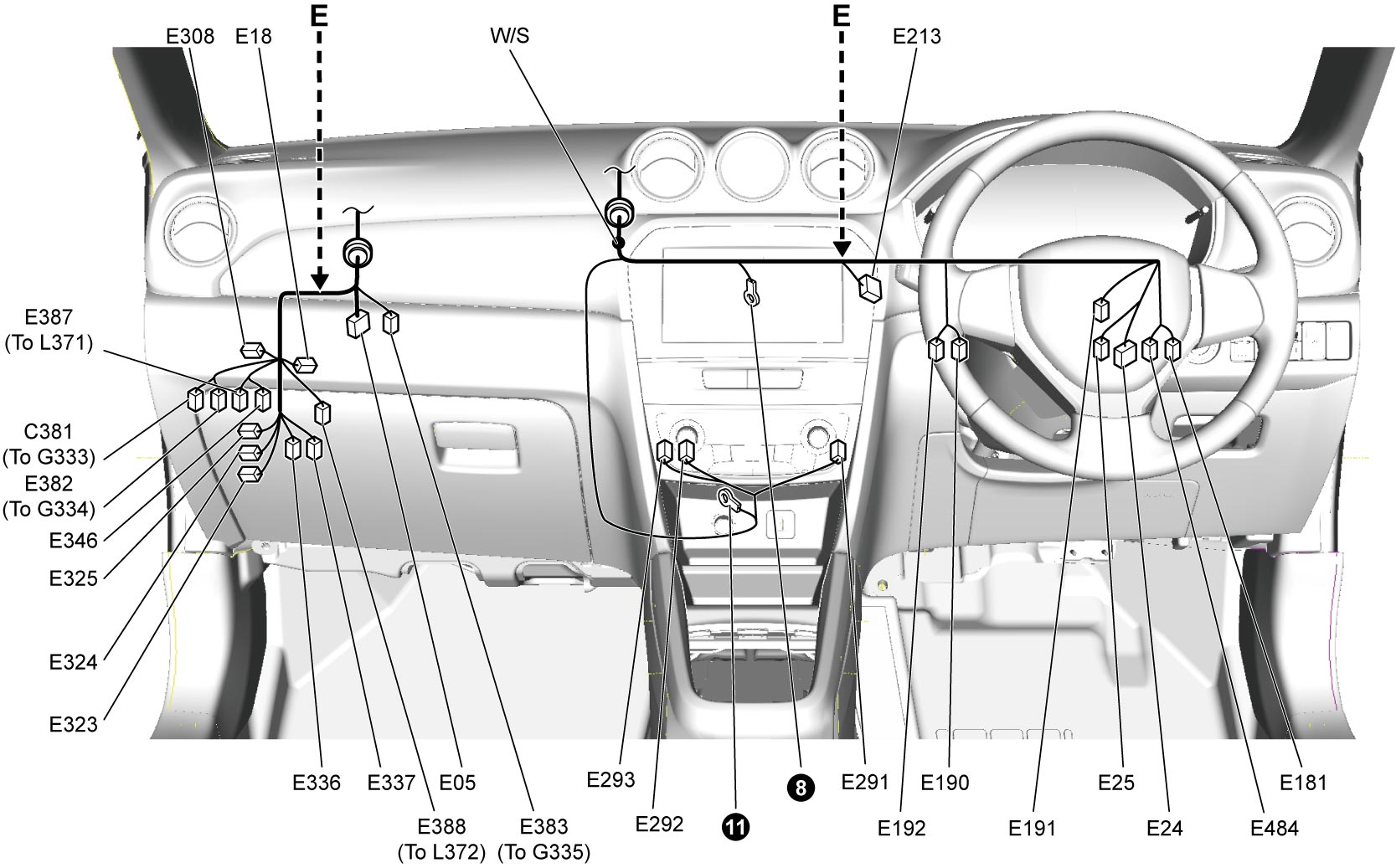

E: Main Harness (RHD)

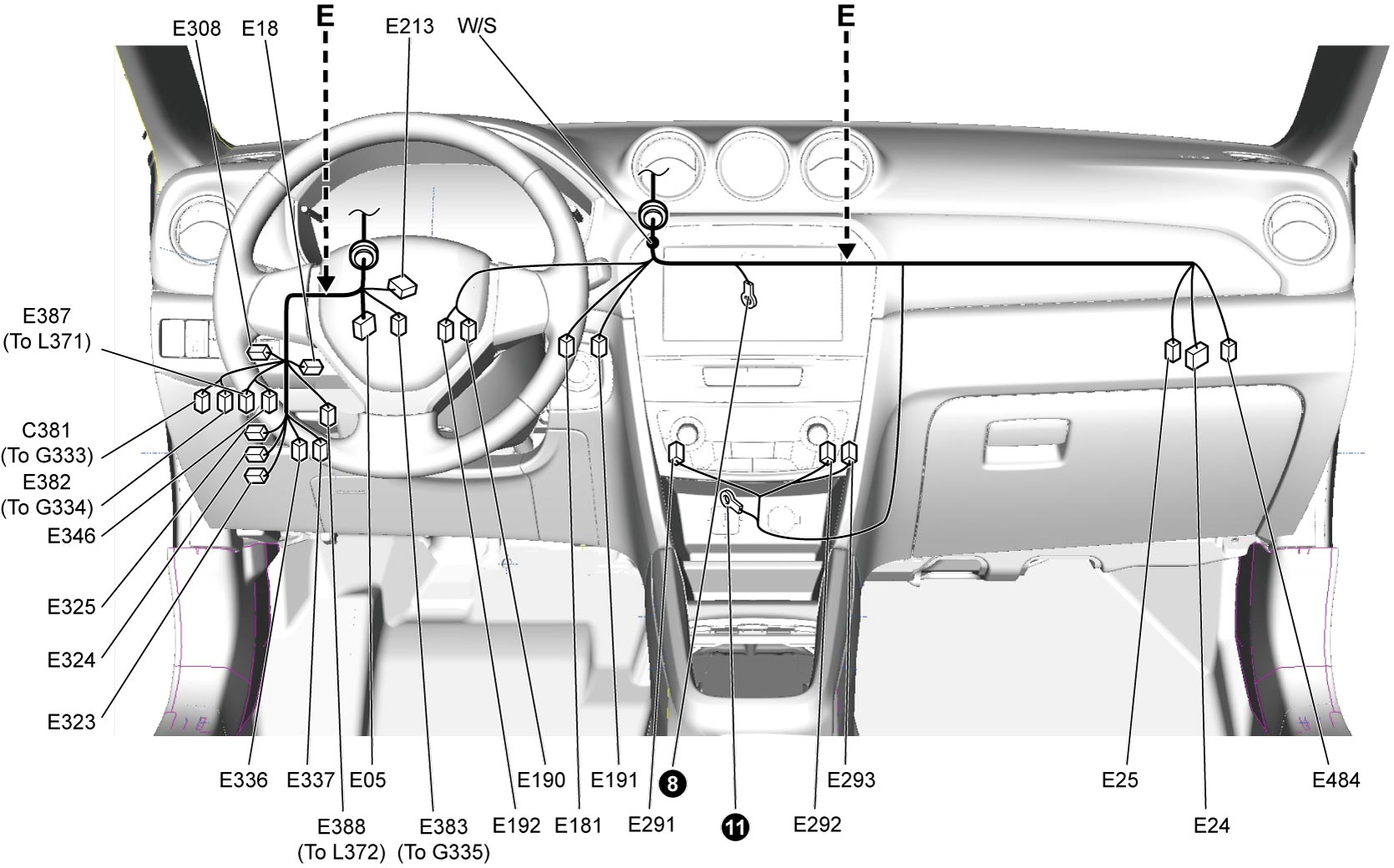

E: Main Harness (LHD)
E: Main harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| E05 | GRY | BCM | |
| E18 | N | Headlight auto leveling control module | Headlight auto leveling |
| E24 | GRY | ENG A-STOP control module | ENG A-STOP model |
| E25 | N | ENG A-STOP control module | ENG A-STOP model |
| E181 | N | Brake light switch | |
| E190 | N | CPP switch No.1 | M/T model |
| E191 | BLK | APP sensor | |
| E192 | N | CPP switch No.2 | M/T model |
| E213 | GRY | DC/DC converter | A/T model |
| E291 | N | Additional heater No.1 | If equipped |
| E292 | N | Additional heater No.2 | If equipped |
| E293 | BLK | Additional heater No.3 | If equipped |
| E308 | BLK | Diode | |
| E323 | N | J/B | |
| E324 | N | J/B | |
| E325 | N | J/B | |
| E336 | N | J/B | |
| E337 | N | J/B | |
| E346 | GRY | J/C | |
| E381 | N | Instrument panel harness (To G333) | |
| E382 | N | Instrument panel harness (To G334) | |
| E383 | N | Instrument panel harness (To G335) | |
| E387 | N | Floor harness (To L371) | |
| E388 | YEL | Floor harness (To L372) | |
| E481 | N | ID controller | If equipped |
| E484 | N | Keyless entry control module / Keyless start control module |

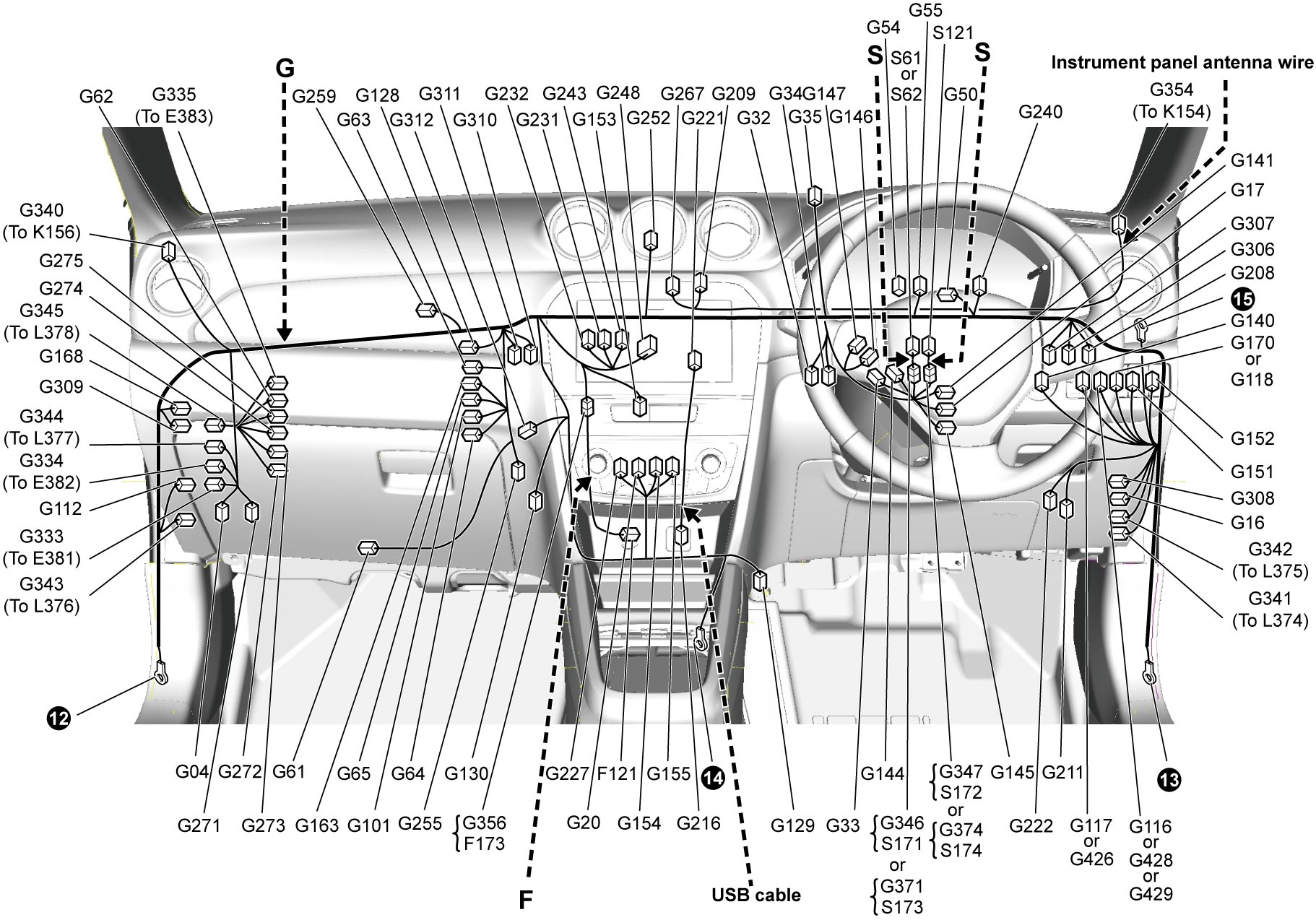

G: Instrument Panel Harness, Instrument Panel Audio Antenna Wire, USB Cable / F: Console Wire / S: Contact Coil (RHD)

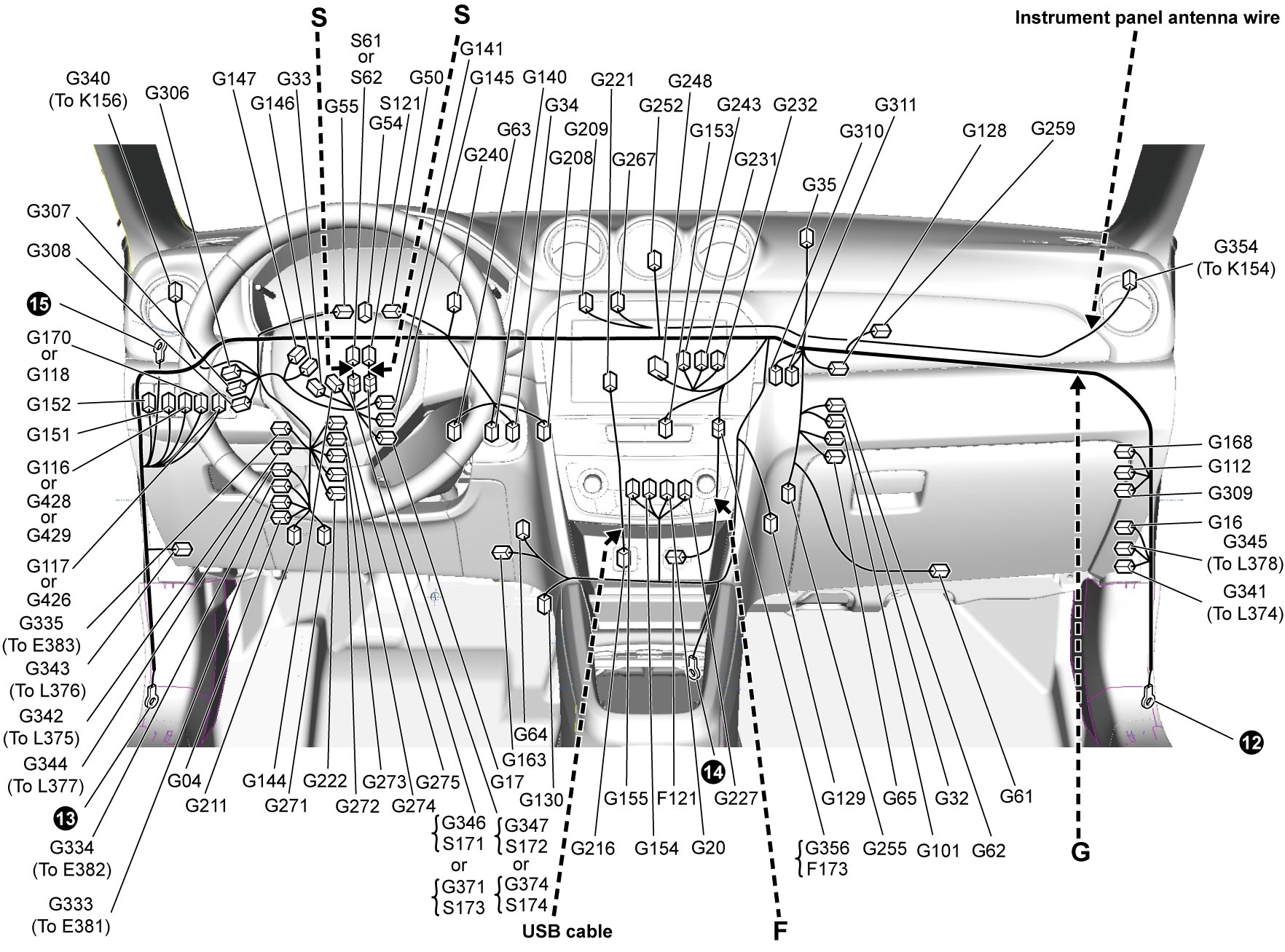

G: Instrument Panel Harness, Instrument Panel Audio Antenna Wire, USB Cable / F: Console Wire / S: Contact Coil (LHD)
G: Instrument panel harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| G04 | GRY | BCM | |
| G16 | N | Keyless entry control module / Keyless start control module | |
| G17 | N | Immobilizer control module | |
| G20 | N | HVAC control module | Auto A/C model |
| G32 | N | Evaporator temperature sensor | |
| G33 | GRY | Steering angle sensor | ESP® model |
| G34 | N | Inside air temperature sensor | Auto A/C model |
| G35 | N | Sunload sensor | Auto A/C model |
| G50 | N | P/S control module | |
| G54 | - | P/S control module (Torque sensor) | |
| G55 | N | P/S control module (P/S motor) | |
| G61 | N | Blower motor | |
| G62 | N | Air intake control actuator | |
| G63 | GRN | Air flow control actuator | Auto A/C model |
| G64 | GRN | Temperature control actuator | Auto A/C model |
| G65 | N | Blower motor control module | Auto A/C model |
| G101 | N | Blower motor resistor | Manual A/C model |
| G112 | BRN | Glove box light switch | |
| G116 | N | ENG A-STOP OFF switch | ENG A-STOP model |
| G117 | BLU | Parking sensor OFF switch | With parking sensor system |
| G118 | BRN | ESP® OFF / Parking sensor OFF switch | ESP® model with parking sensor system |
| G128 | N | Glove box light | |
| G129 | N | Foot light (R) | |
| G130 | N | Foot light (L) | |
| G140 | BLK | Engine push start switch | Keyless push start model |
| G141 | BLK or N | Combination switch | |
| G144 | N | Combination switch | |
| G145 | N | Main switch (Key) | Ignition switch model |
| G146 | N | Auto steering lock unit | Keyless push start model |
| G147 | N | Ignition switch | Ignition switch model |
| G151 | GRN | Front fog light switch | If equipped |
| G152 | BLK | Headlight leveling switch | Headlight manual leveling |
| G153 | N | Hazard switch | |
| G154 | N | HVAC control unit | Manual A/C model |
| G155 | BRN | Blower speed selector | Manual A/C model |
| G163 | N | Max hot switch | If equipped |
| G168 | N | Front-passenger air bag deactivation switch | If equipped |
| G170 | BRN | ESP® OFF switch | ESP® model without parking sensor system |
| G208 | N | Parking sensor front buzzer | If equipped |
| G211 | BLK | DLC | |
| G222 | BLK | Driver-side knee air bag (inflator) module | 9 or 11-channel |
| G227 | N | Auto A/C panel | Auto A/C model |
| G231 | GRY | Navigation unit (Microphone) | If equipped |
| G232 | GRN | Navigation unit (Rearview camera) | If equipped |
| G240 | N | Combination meter | |
| G243 | N | Navigation unit | If equipped |
| G248 | BLU | Audio (Navigation) unit | |
| G252 | N | Clock | |
| G255 | BLK | Diode | Auto A/C model |
| G259 | ORN | Front-passenger air bag (inflator) module | |
| G271 | N | J/B | Ignition switch model |
| G272 | N | J/B | |
| G273 | N | J/B | |
| G274 | N | J/B | |
| G275 | N | J/B | |
| G306 | BLK | J/C | |
| G307 | GRY | J/C | |
| G308 | BLK | J/C | |
| G309 | BLK | J/C | |
| G310 | GRY | J/C | |
| G311 | BLU | J/C | |
| G333 | N | Main harness (To E381) | |
| G334 | N | Main harness (To E382) | |
| G335 | N | Main harness (To E383) | |
| G340 | N | Roof wire (To K156) | |
| G341 | N | Floor harness (To L374) | |
| G342 | YEL | Floor harness (To L375) | |
| G343 | BLK | Floor harness (To L376) | |
| G344 | YEL | Floor harness (To L377) | |
| G345 | YEL | Floor harness (To L378) | |
| G346 | N | Contact coil (To S171) | Without cruise control |
| G347 | YEL | Contact coil (To S172) | Without cruise control |
| G356 | N | Console wire (To F173) | |
| G371 | BLK | Contact coil (To S173) | With cruise control |
| G374 | YEL | Contact coil (To S174) | With cruise control |
| G426 | BLU | RBS OFF / FAR/NEAR setting switch | With RBS |
| G428 | GRY | Hill descent control switch | With hill descent control |
| G429 | N | Hill descent control / ENG A-STOP OFF switch | With hill descent control and ENG A-STOP |
G: Instrument panel audio antenna wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| G209 | - | Audio (Navigation) unit (DAB antenna) | If equipped |
| G267 | - | Audio (Navigation) unit (Radio antenna) | |
| G354 | - | Roof audio antenna wire (To K154) |
G: USB cable
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| G216 | - | USB connector | |
| G221 | - | Audio (Navigation) unit |
F: Console wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| F121 | BLK | Accessory socket | |
| F173 | N | Instrument panel harness (To G356) |
S: Contact coil
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| S61 | - | Steering switch (Horn switch, audio control) | Without cruise control |
| S62 | - | Steering switch (Horn switch, cruise control, audio control) | With cruise control |
| S121 | - | Driver air bag (inflator) module | |
| S171 | - | Instrument panel harness (To G346) | Without cruise control |
| S172 | - | Instrument panel harness (To G347) | Without cruise control |
| S173 | - | Instrument panel harness (To G371) | With cruise control |
| S174 | - | Instrument panel harness (To G374) | With cruise control |
