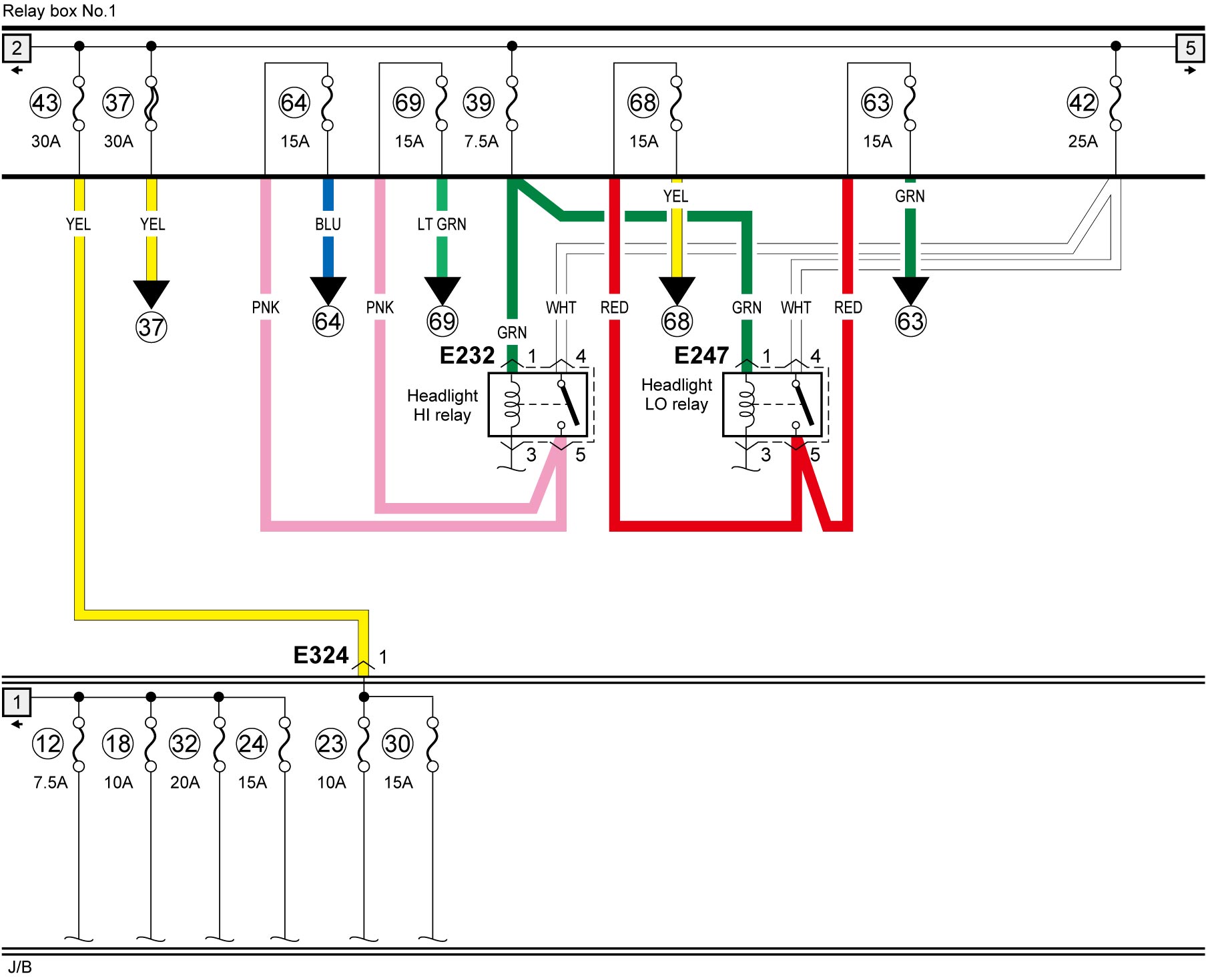

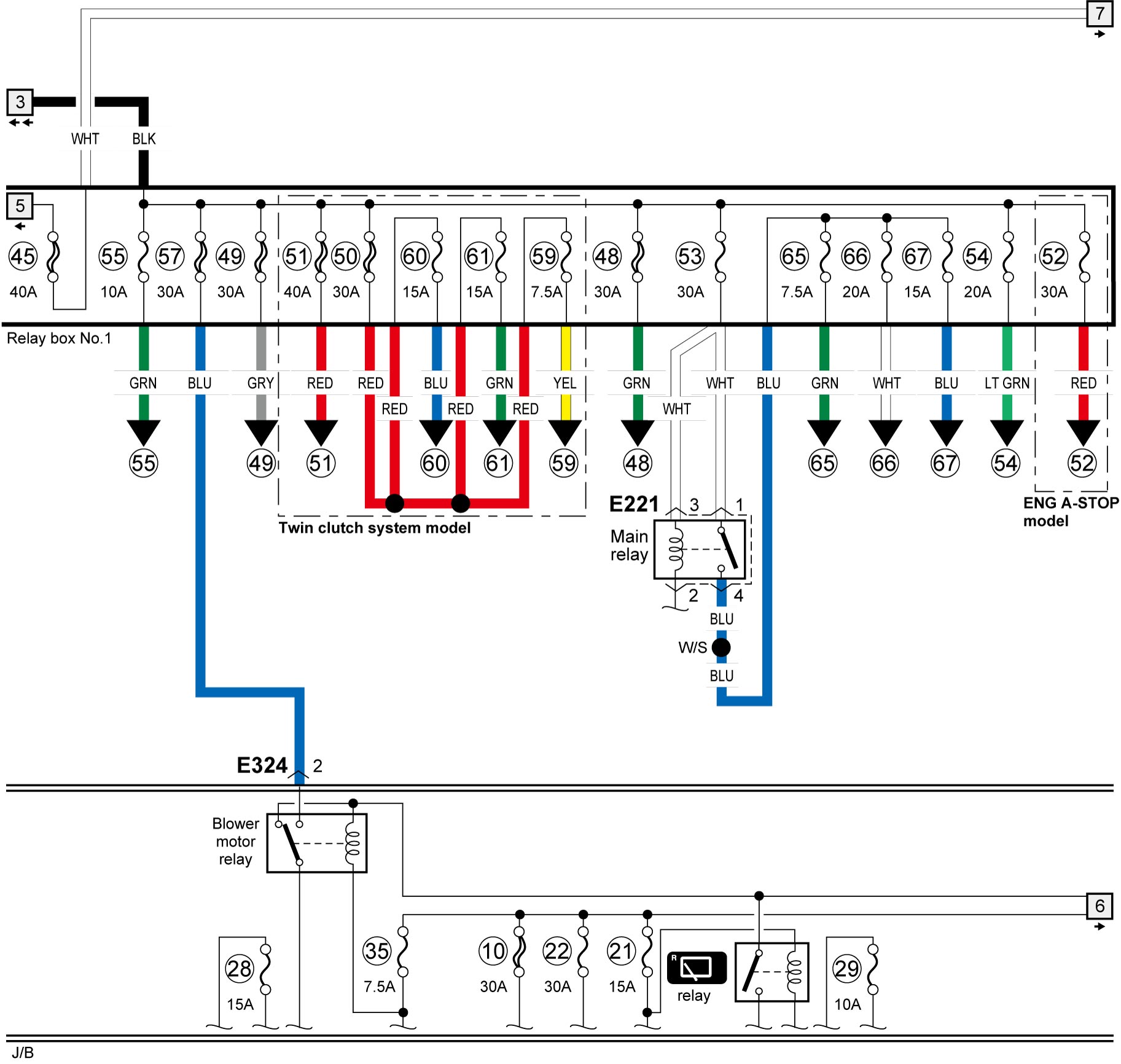

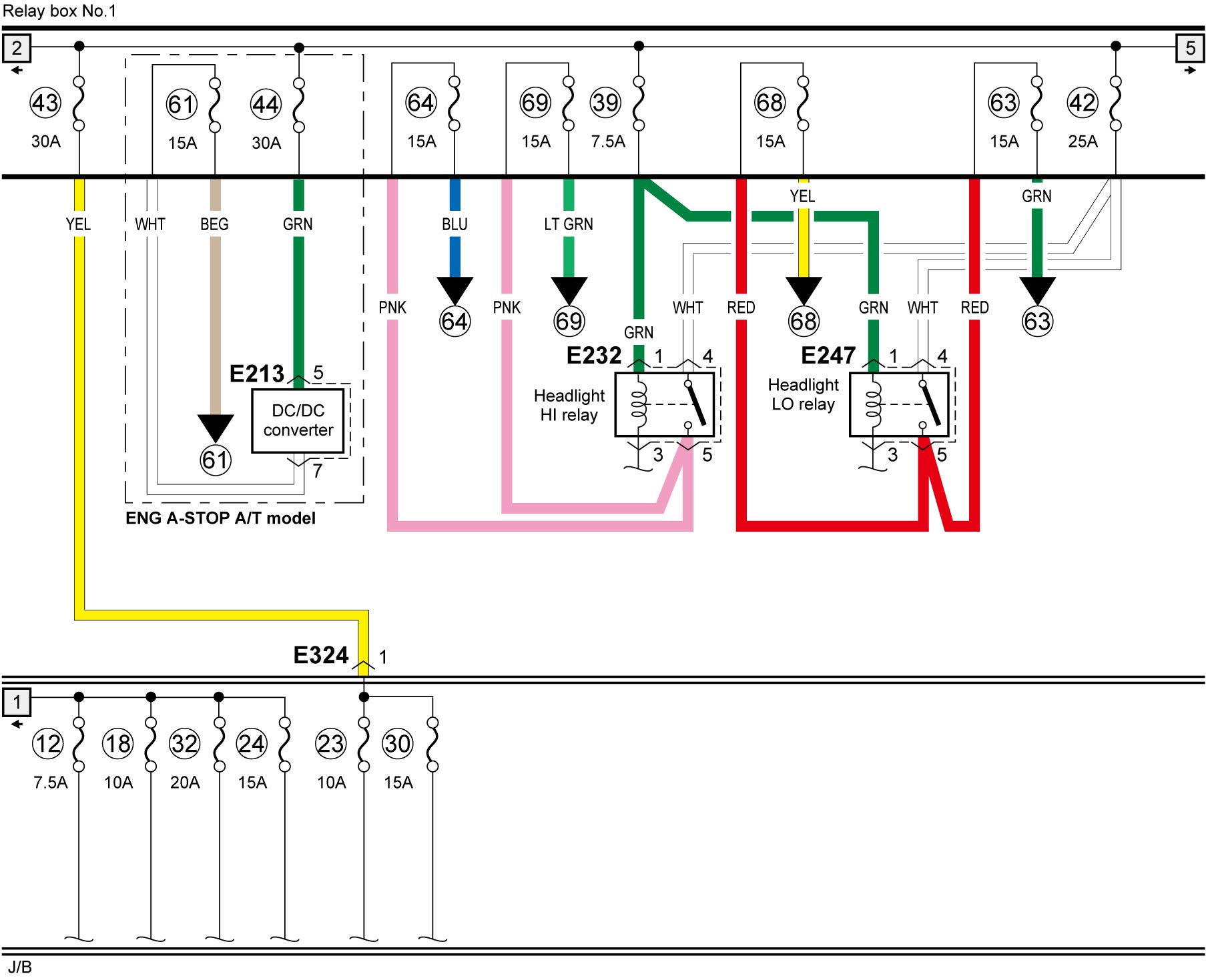

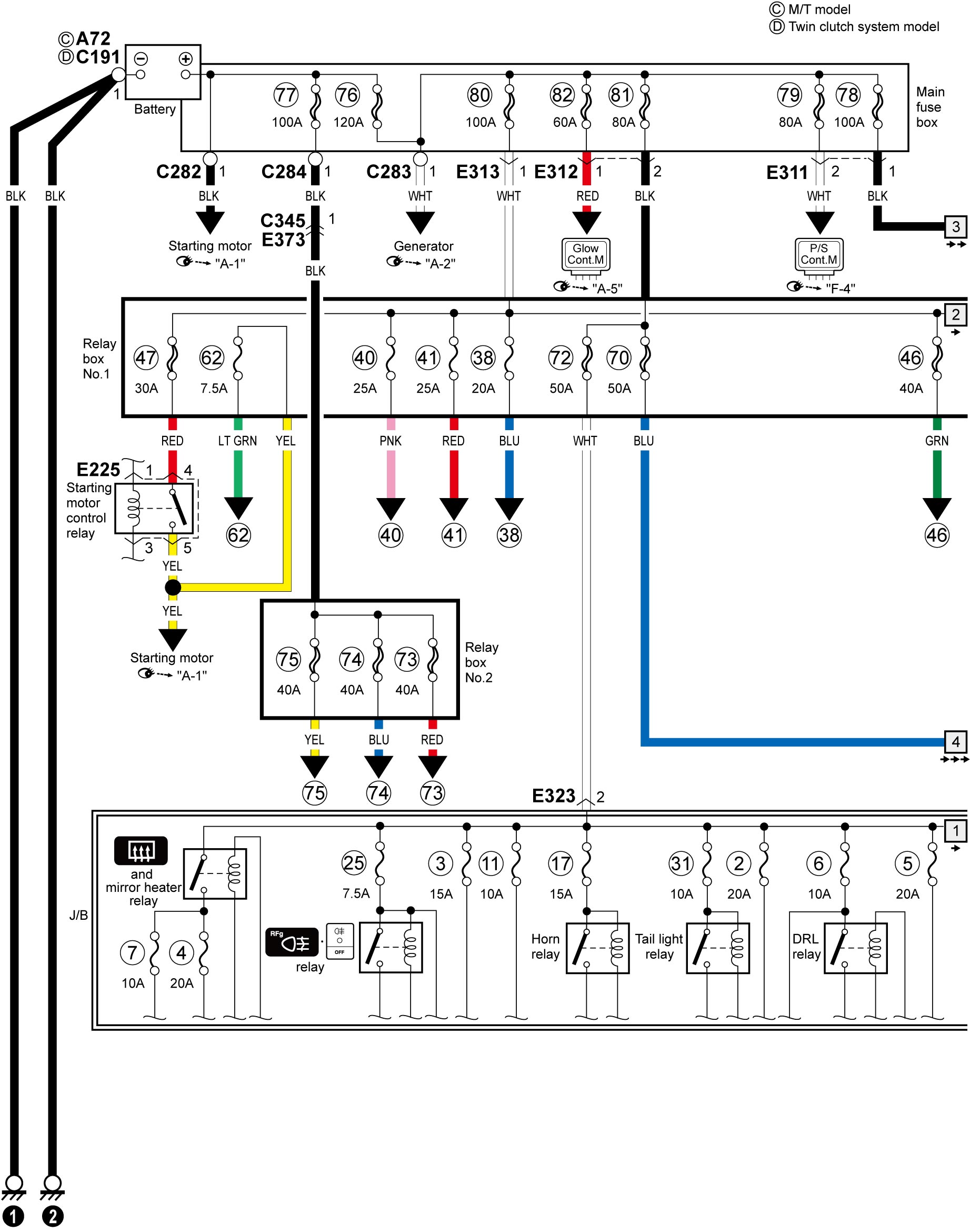

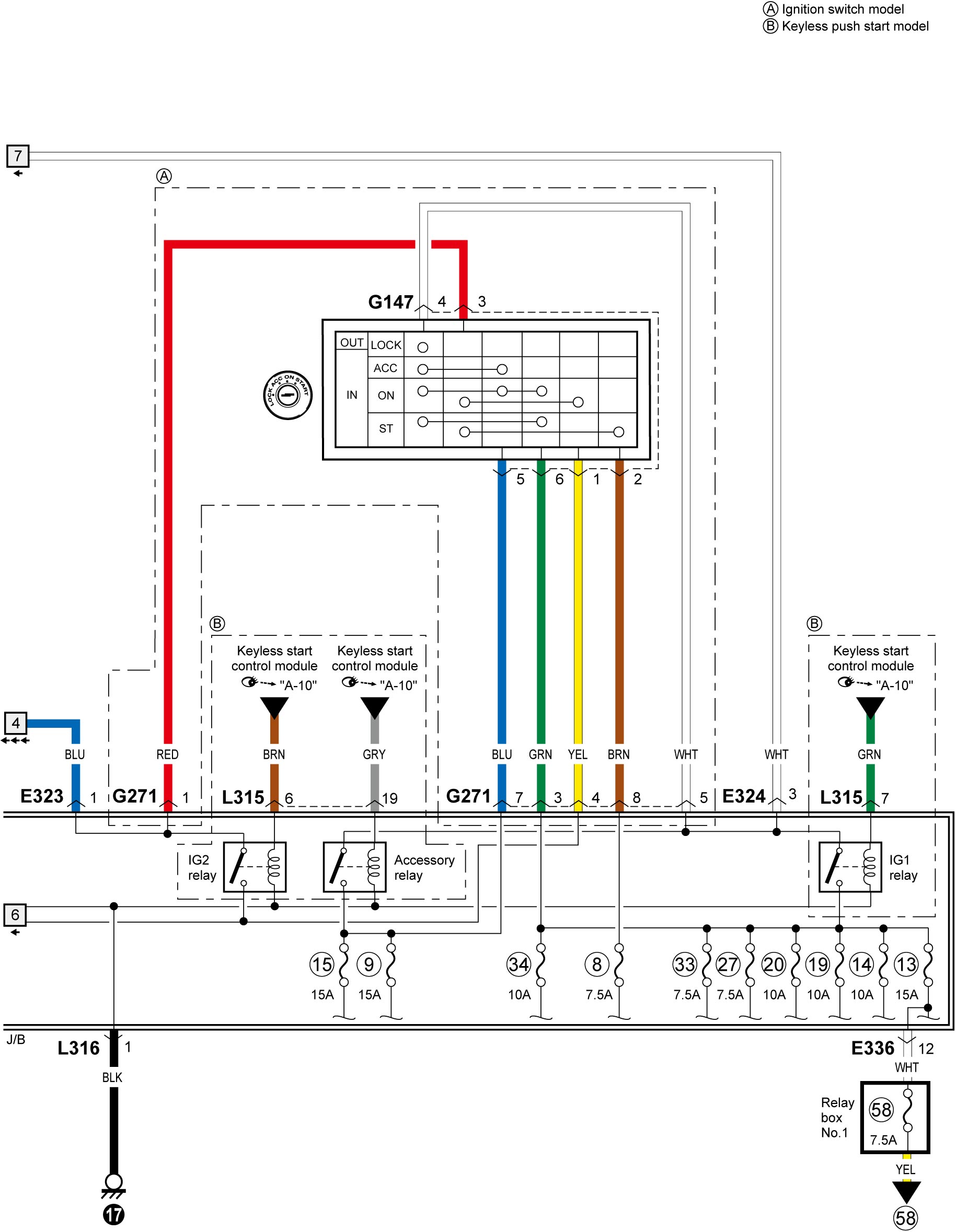

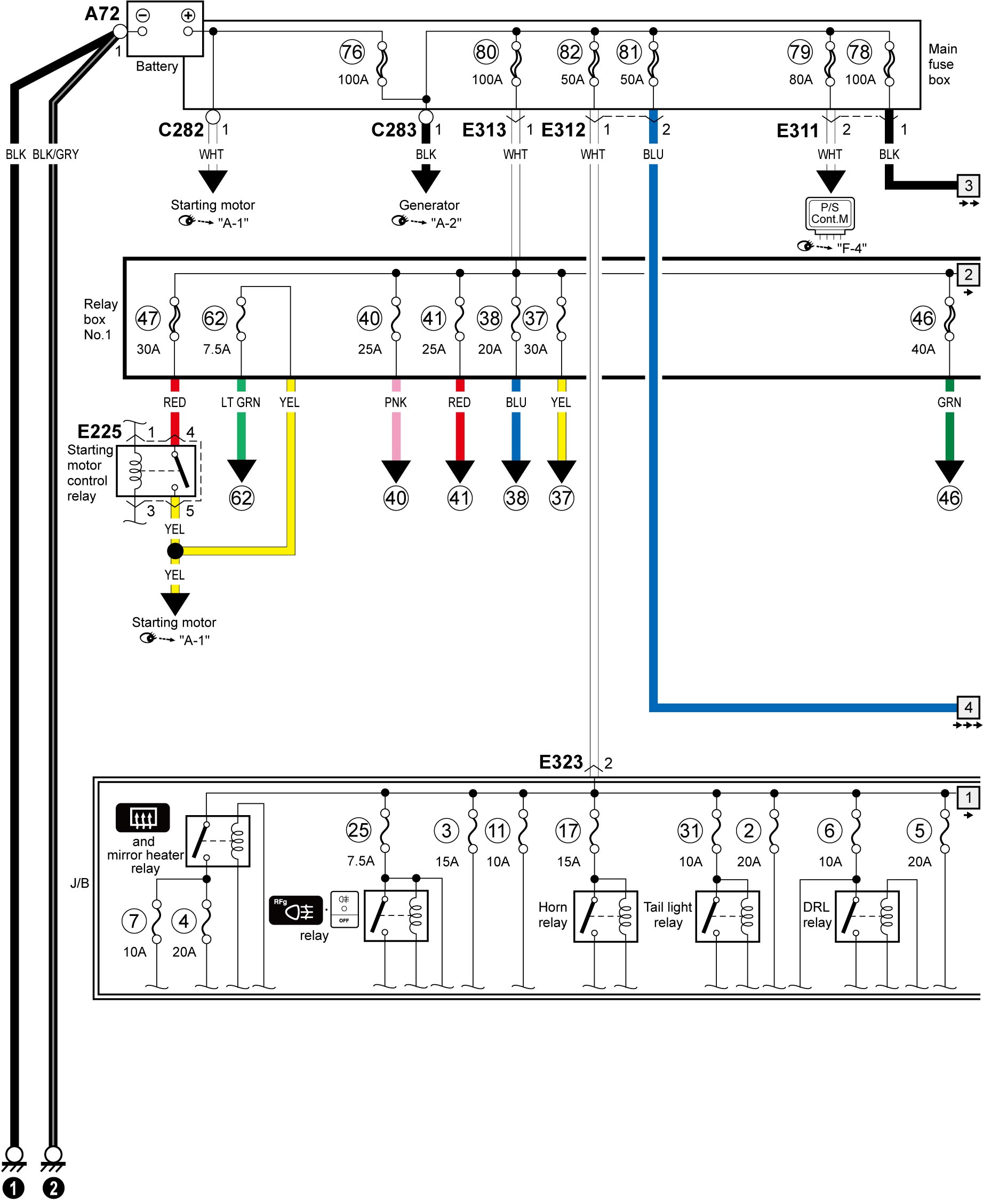

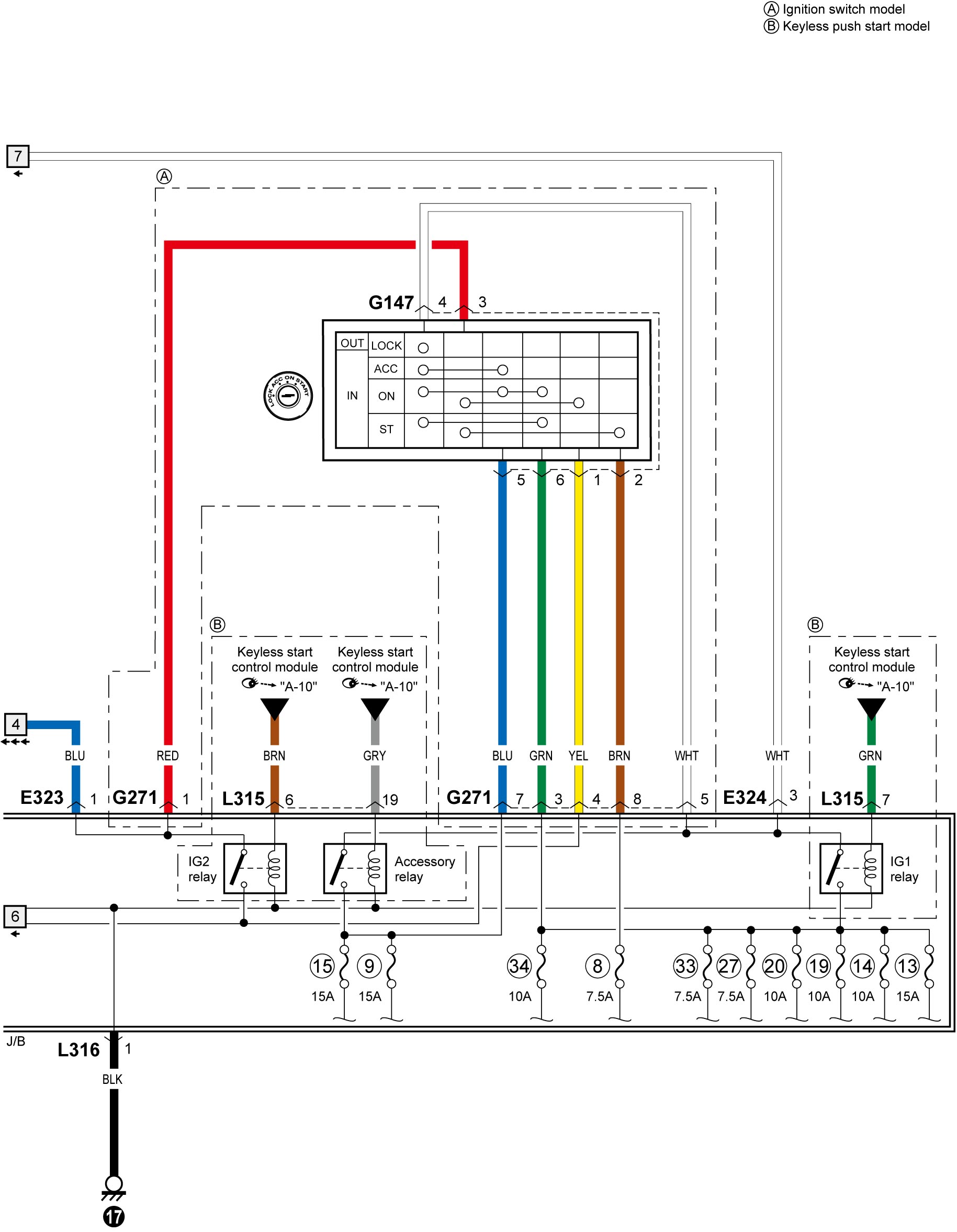

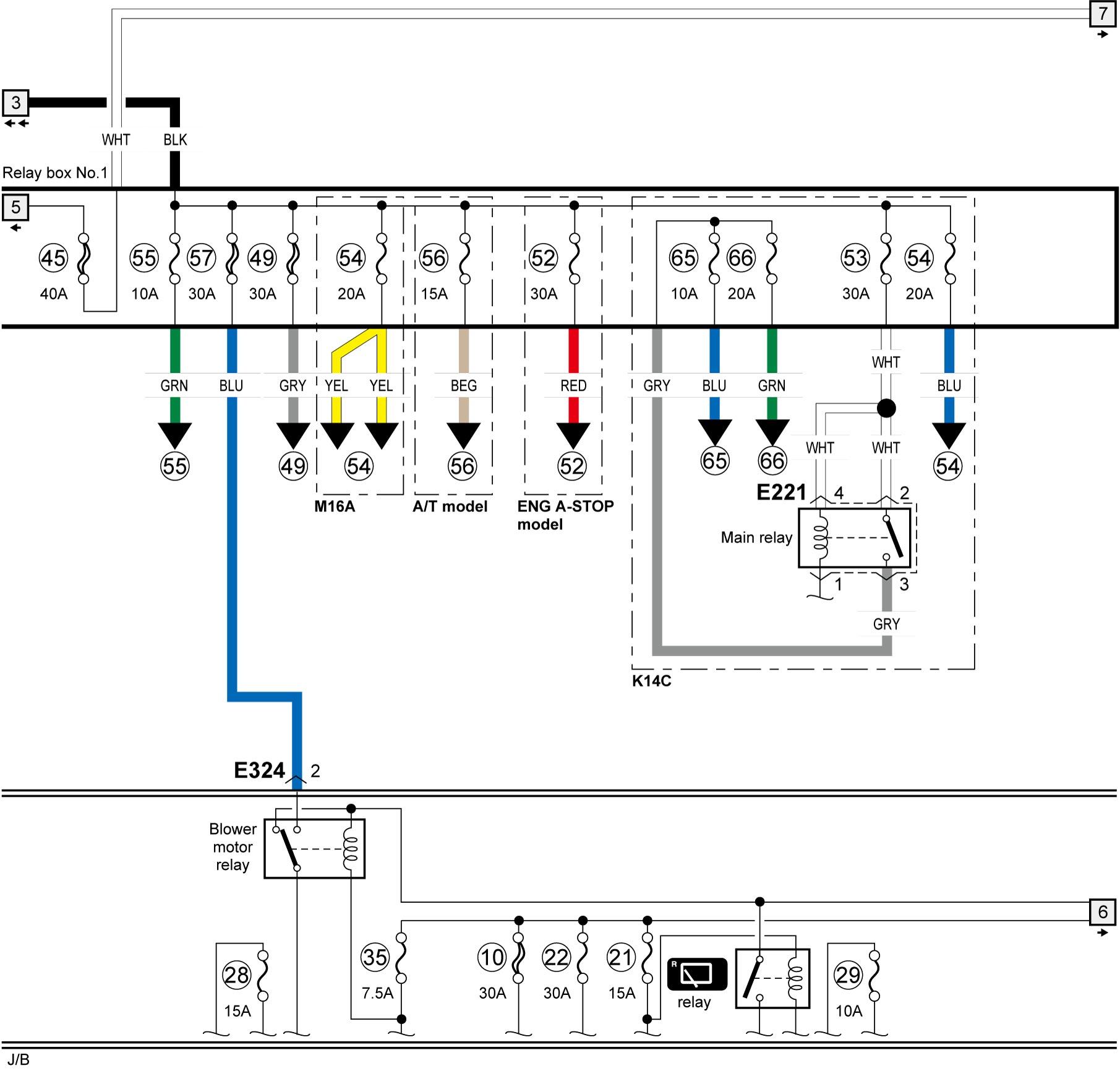

Power Supply Diagram
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)
ESP®: ESP is a registered trademark of Daimler AG.
Petrol Model
Diesel Model
