Ground Point

Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

Reference: How to Read System Circuit Diagram

Refer to Connector Layout Diagram.

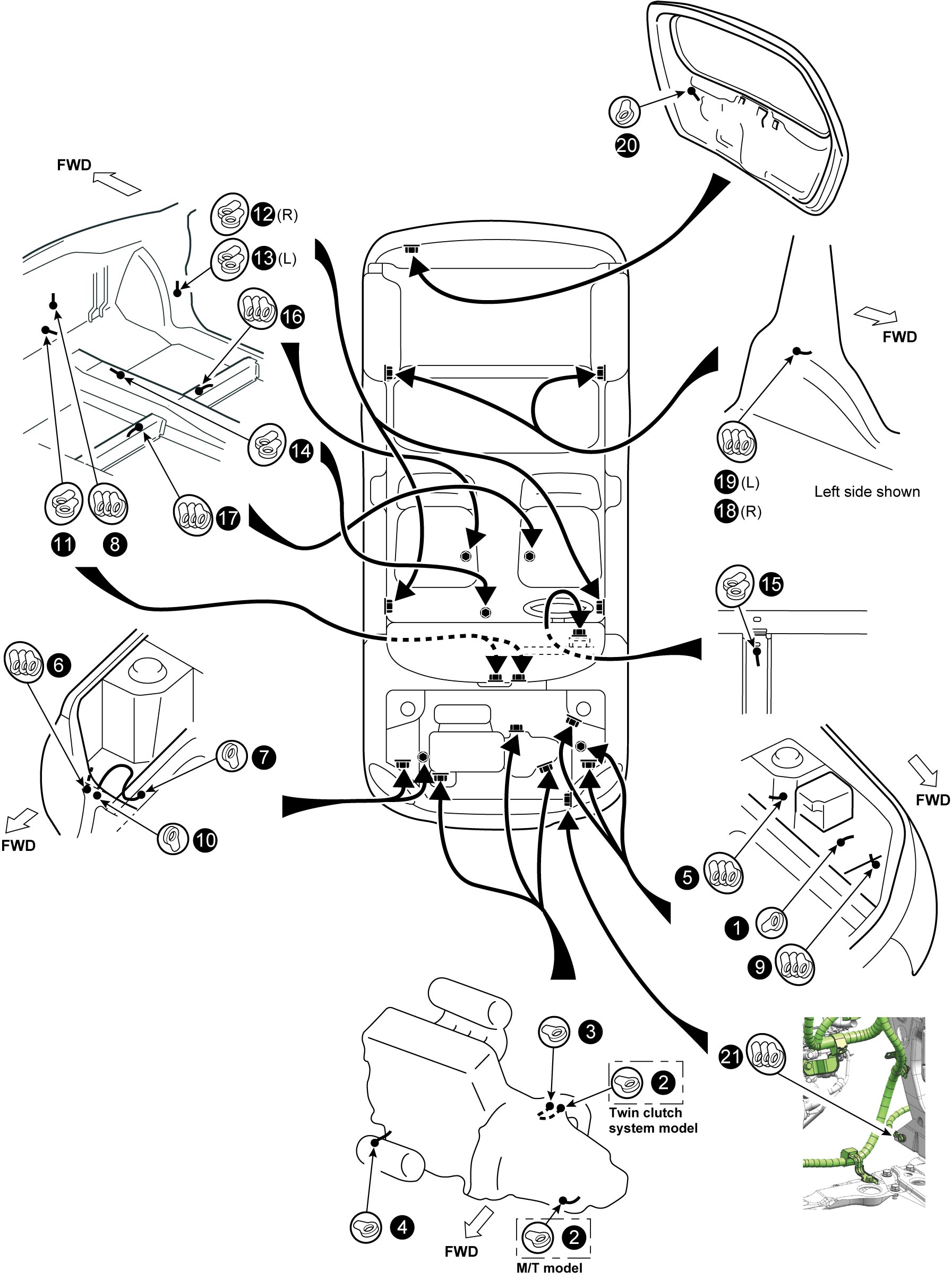

RHD

Petrol model

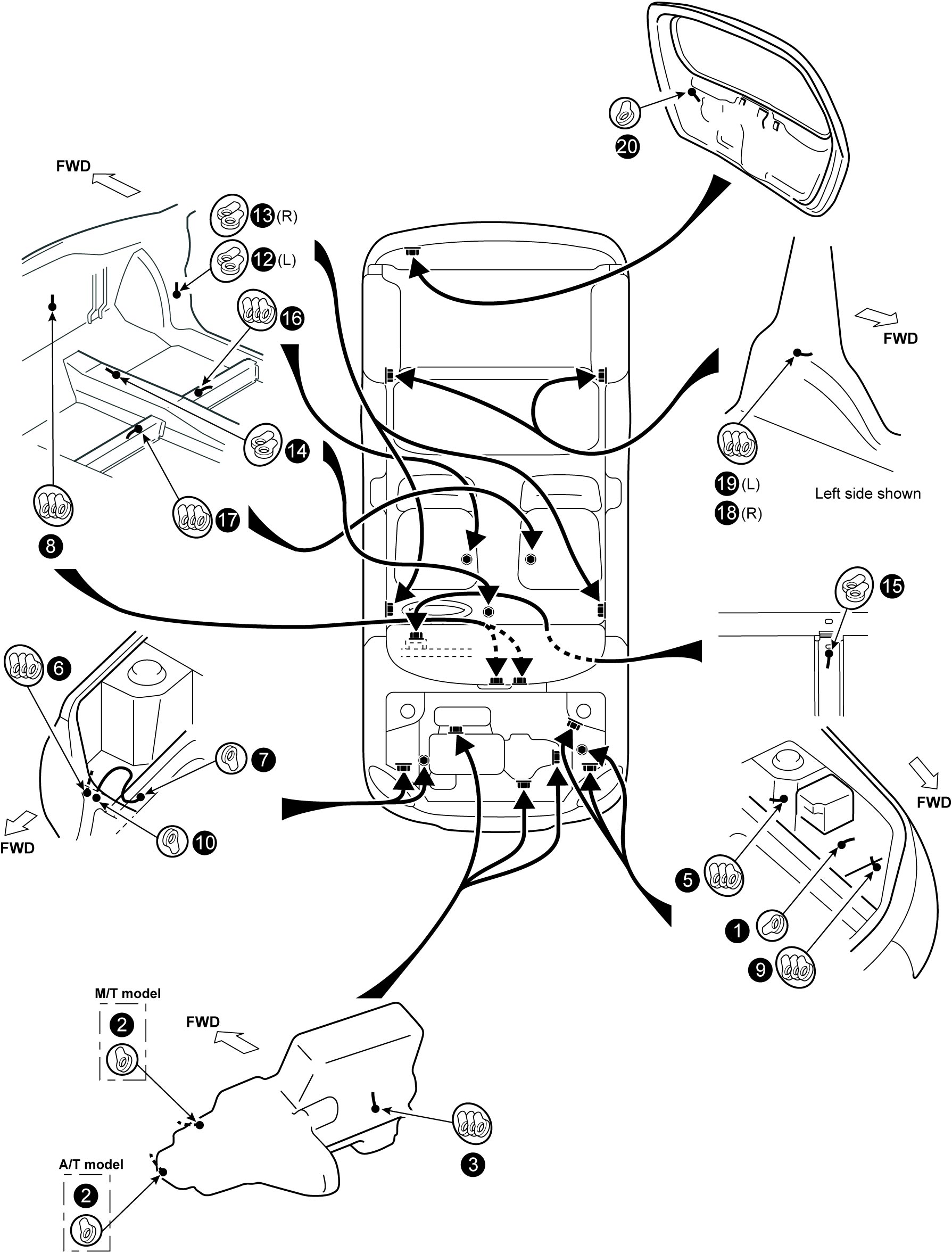

Diesel model

LHD

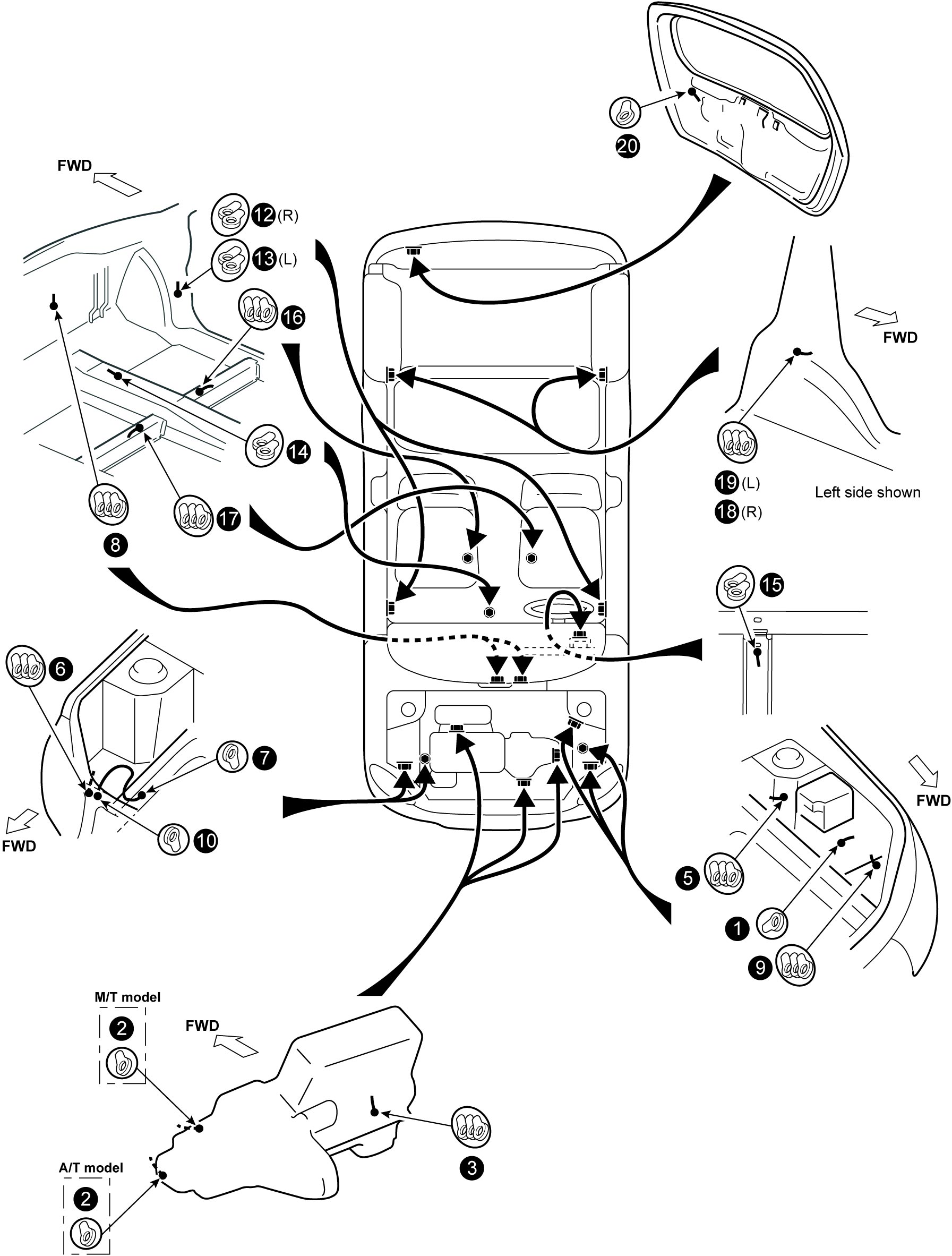

Petrol model

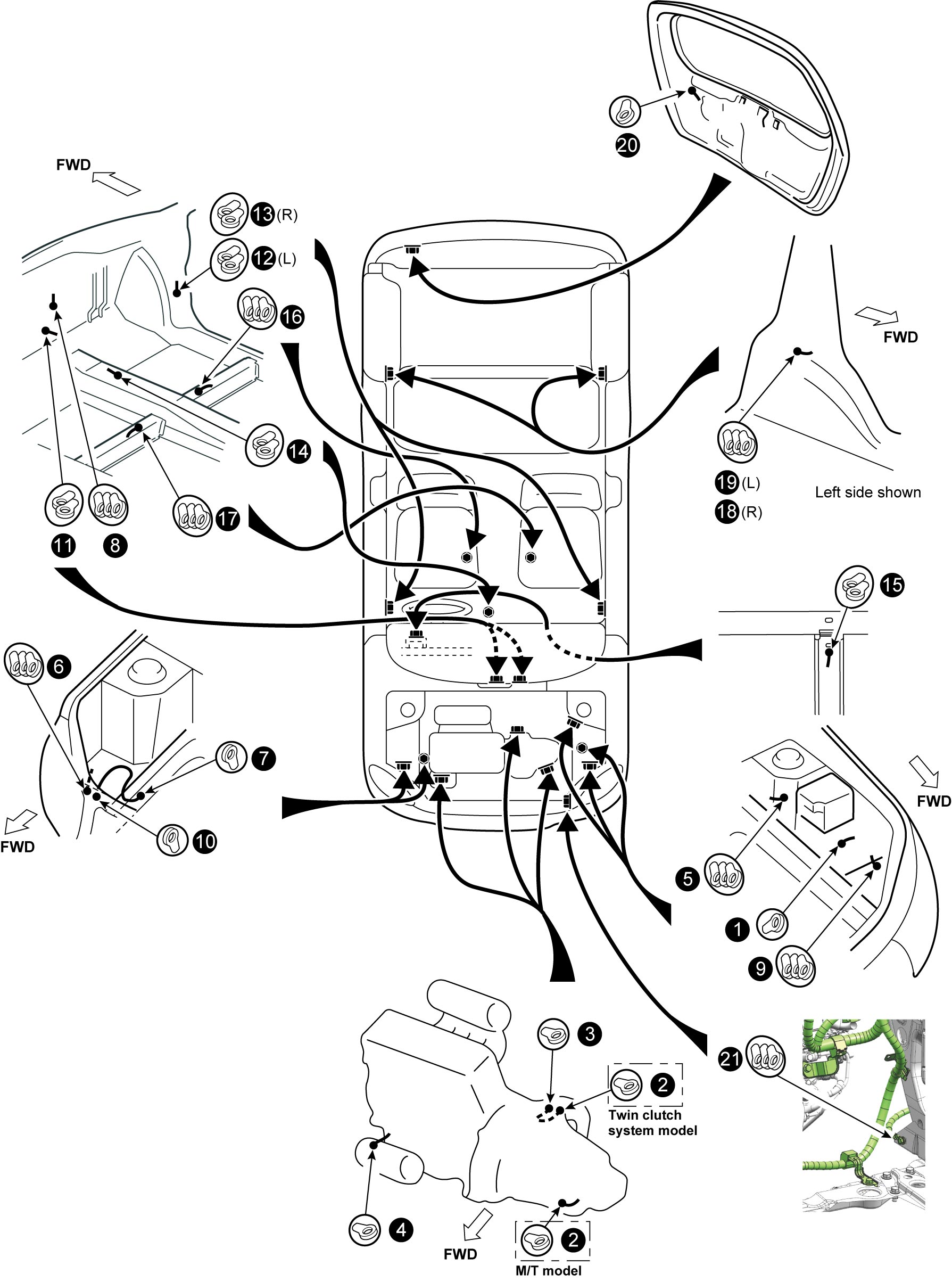

Diesel model
