Around Rear End Door
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

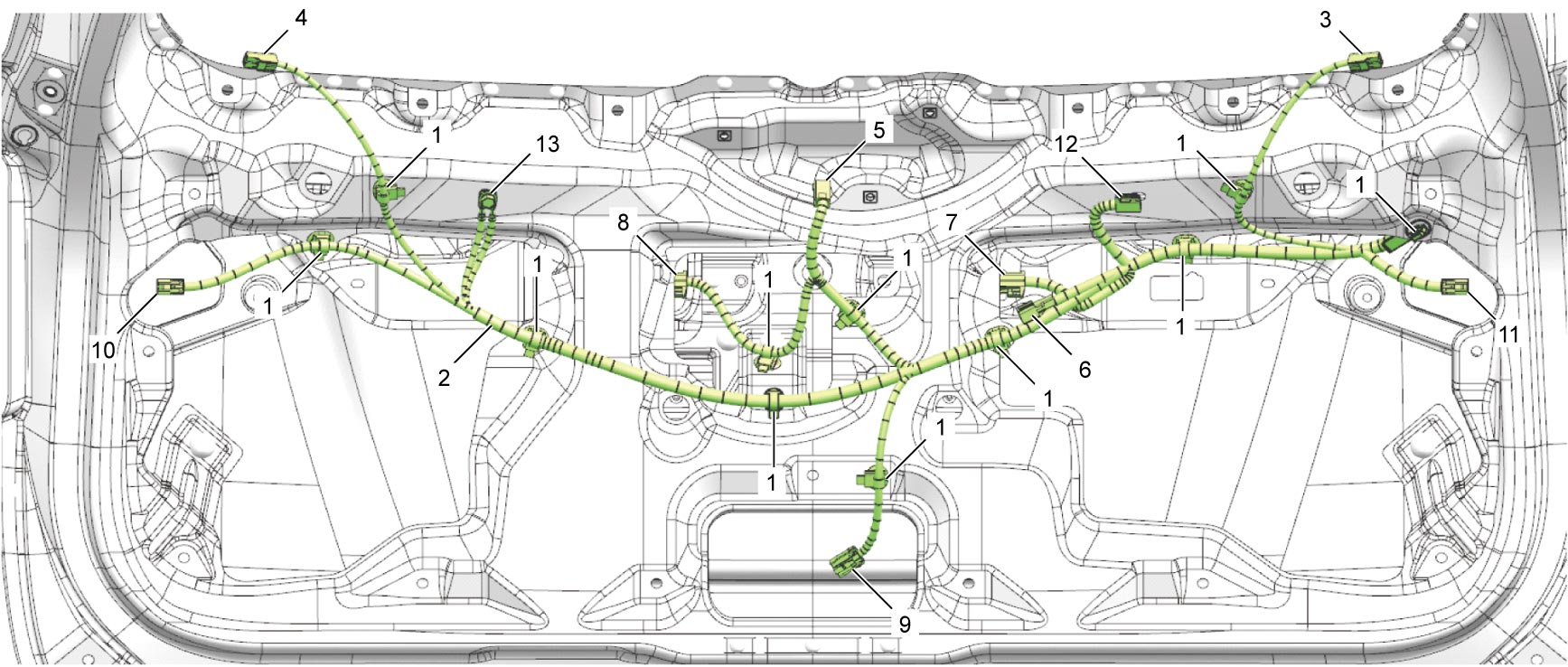

| 1. | Clamp | 6. | Rear end door request switch and rear end door opener switch | 11. | Back up light (L) |
| 2. | Rear end door harness | 7. | License plate light No.1 | 12. | Rearview camera (If equipped) |
| 3. | Rear defogger (+) | 8. | License plate light No.2 | 13. | GND bolt |
| 4. | Rear defogger (–) | 9. | Rear end door solenoid and rear end door switch | ||
| 5. | Rear wiper motor | 10. | Back up light (R) |
