Around Main Floor
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

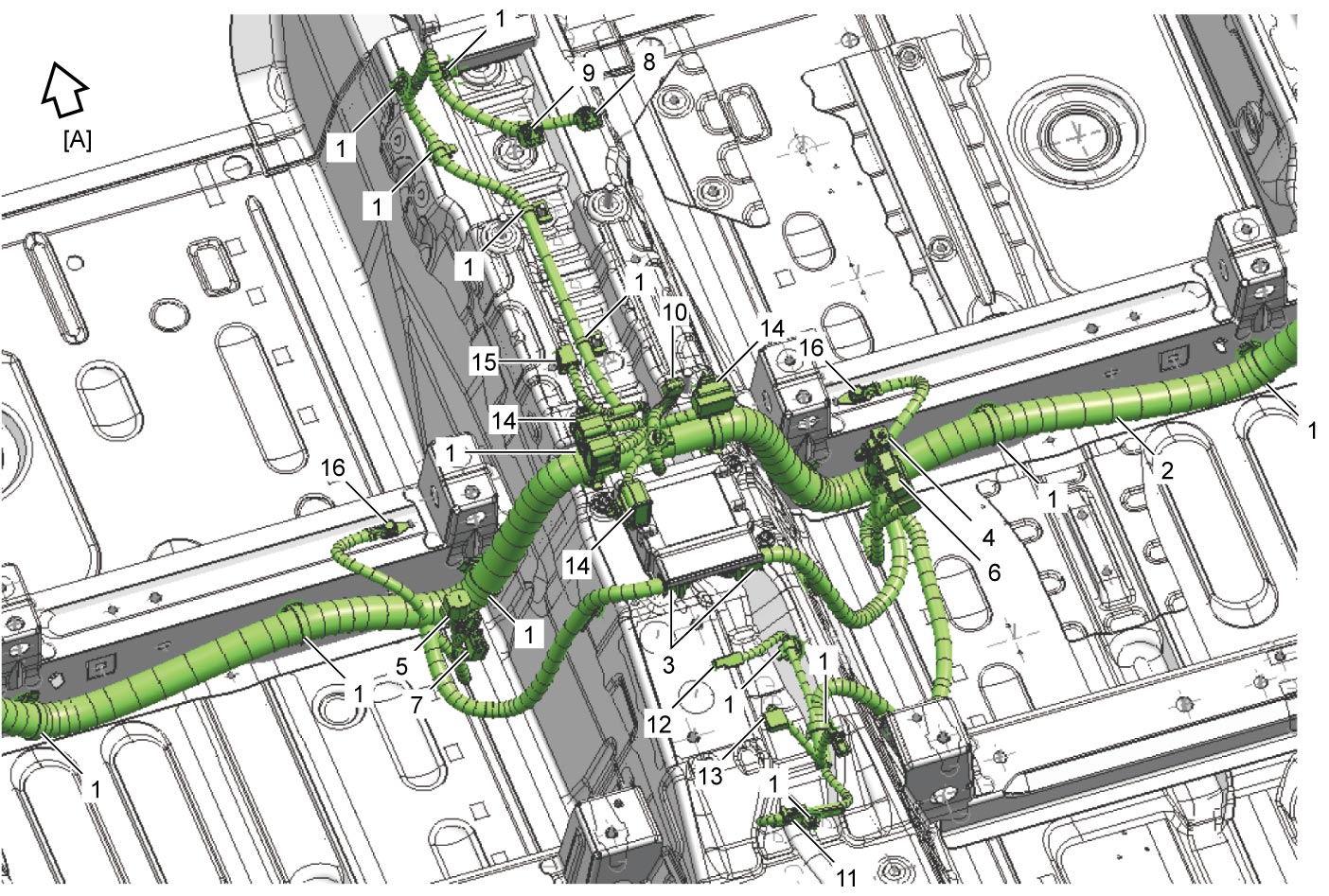

Front Part
| [A]: | Forward | 6. | RHD: Seat heater with seat belt switch (Driver side) / Seat belt switch (Driver side) LHD: Seat heater with seat belt switch (Passenger side) / Seat belt switch (Passenger side) |
12. | Parking brake switch |
| 1. | Clamp | 7. | RHD: Seat heater with seat belt switch (Passenger side) / Seat belt switch (Passenger side) LHD: Seat heater with seat belt switch (Driver side) / Seat belt switch (Driver side) |
13. | TPMS control module (If equipped) |
| 2. | Floor harness | 8. | RHD: Seat heater switch (Driver side) LHD: Seat heater switch (Passenger side) |
14. | J/C |
| 3. | SDM | 9. | RHD: Seat heater switch (Passenger side) LHD: Seat heater switch (Driver side) |
15. | Select lever assembly (A/T model, twin clutch system model) |
| 4. | RHD: Driver-side side-air bag (inflator) module LHD: Passenger-side side-air bag (inflator) module |
10. | Driving mode switch (4WD model) | 16. | GND bolt |
| 5. | RHD: Passenger-side side-air bag (inflator) module LHD: Driver-side side-air bag (inflator) module |
11. | Mid inside antenna |

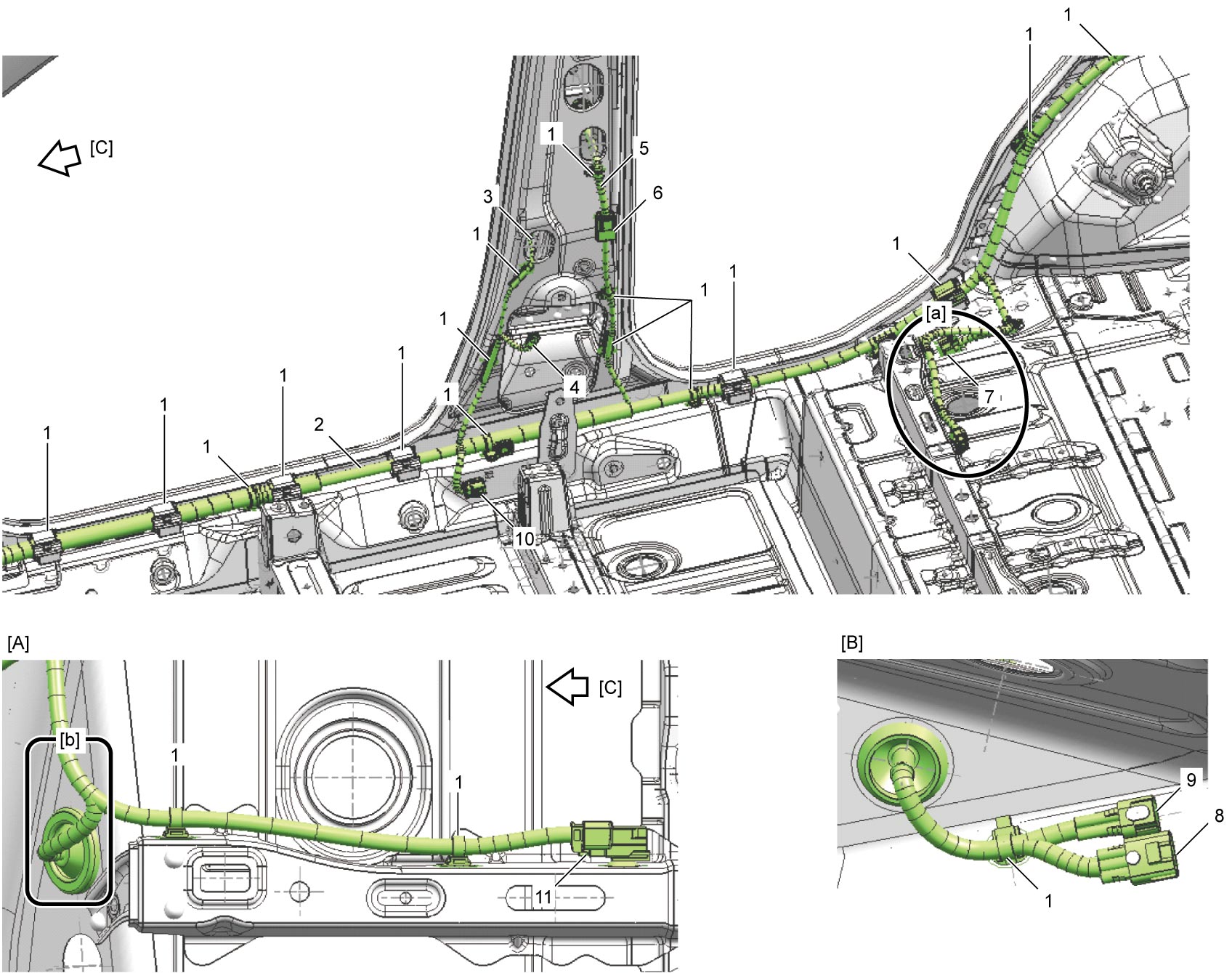

Right Side
| [A]: | Detail [a] | 3. | RHD: Front door switch (Driver side) LHD: Front door switch (Passenger side) |
8. | To rear height sensor wire |
| [B]: | Detail [b] (Outside view) | 4. | RHD: Driver seat belt pretensioner LHD: Front-passenger seat belt pretensioner |
9. | Wheel speed sensor (Rear-right) |
| [C]: | Forward | 5. | Rear door wire (R) | 10. | RHD: Driver-side front side-impact sensor LHD: Passenger-side front side-impact sensor |
| 1. | Clamp | 6. | To rear door wire (R) | 11. | Rear seat belt switch (R) |
| 2. | Floor harness | 7. | To fuel pump wire |

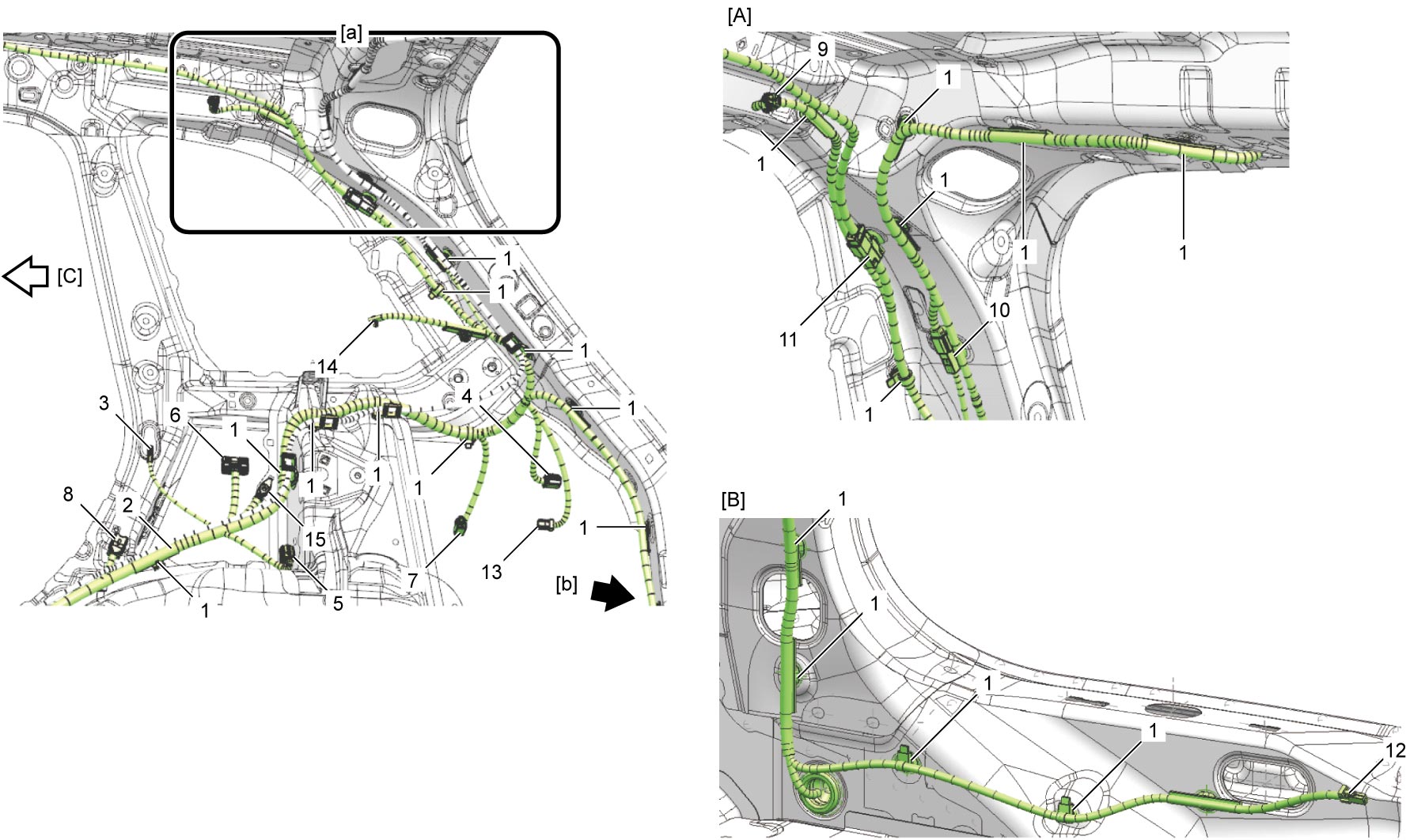

| [A]: | Detail [a] | 4. | Rear combination light (R) | 10. | To high mounted stop light |
| [B]: | View [b] | 5. | Parking sensor rear buzzer (With parking sensor system) | 11. | To rear roof wire (R) |
| [C]: | Forward | 6. | Parking sensor system control module (With parking sensor system) | 12. | Rear inside antenna |
| 1. | Clamp | 7. | Rear accessory socket (If equipped) | 13. | Luggage compartment light |
| 2. | Floor harness | 8. | RHD: Driver-side rear side-impact sensor LHD: Passenger-side rear side-impact sensor |
14. | RHD: Driver-side rear side-air bag (inflator) module LHD: Passenger-side rear side-air bag (inflator) module |
| 3. | Rear door switch (R) | 9. | RHD: Driver-side curtain air bag (inflator) module LHD: Passenger-side curtain air bag (inflator) module |
15. | GND bolt |

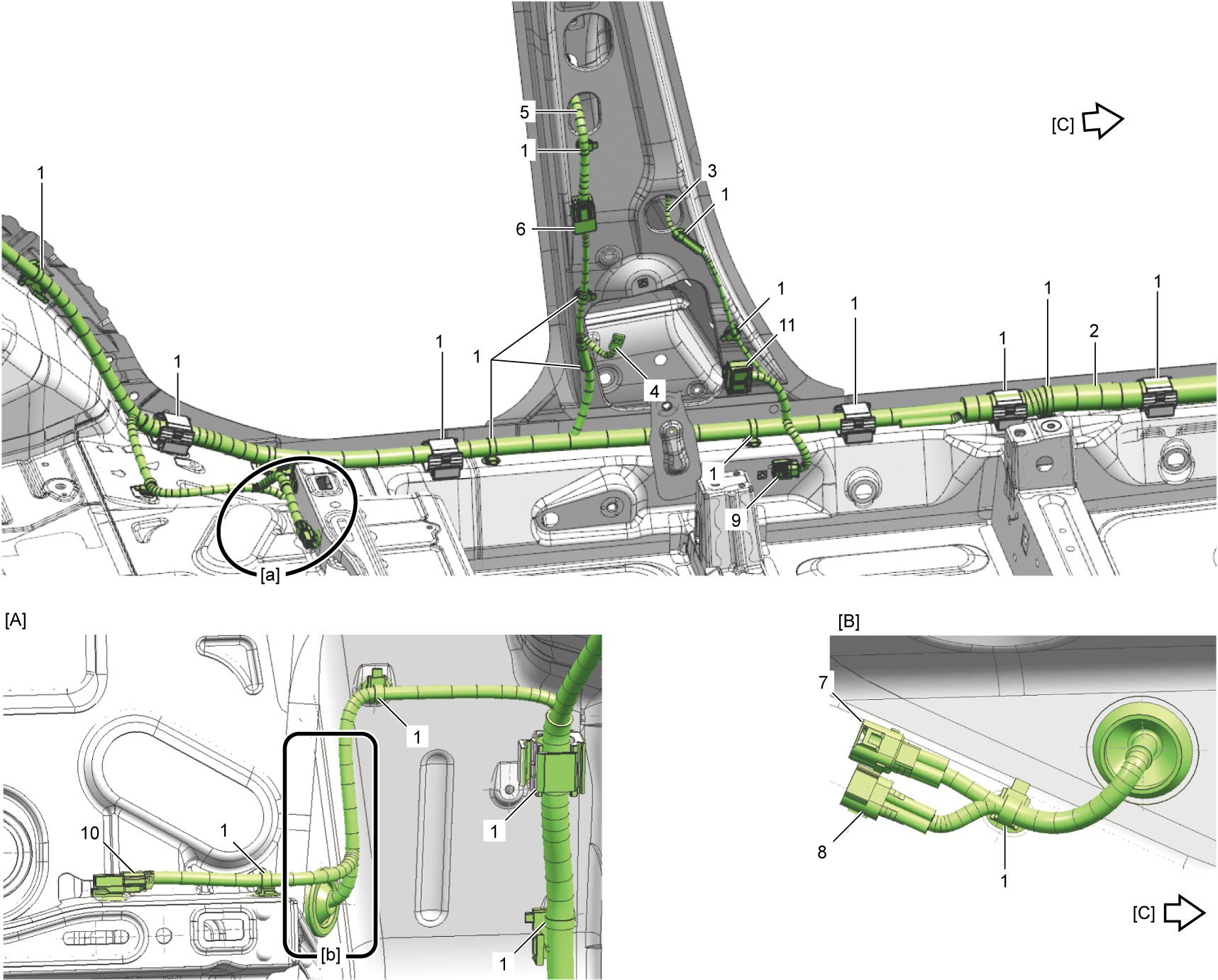

Left Side
| [A]: | Detail [a] | 3. | RHD: Front door switch (Passenger side) LHD: Front door switch (Driver side) |
8. | Wheel speed sensor (Rear-left) |
| [B]: | Detail [b] (Outside view) | 4. | RHD: Front-passenger seat belt pretensioner LHD: Driver seat belt pretensioner |
9. | RHD: Passenger-side front side-impact sensor LHD: Driver-side front side-impact sensor |
| [C]: | Forward | 5. | Rear door wire (L) | 10. | Rear seat belt switch (L) |
| 1. | Clamp | 6. | To rear door wire (L) | 11. | J/C |
| 2. | Floor harness | 7. | To coupling harness |

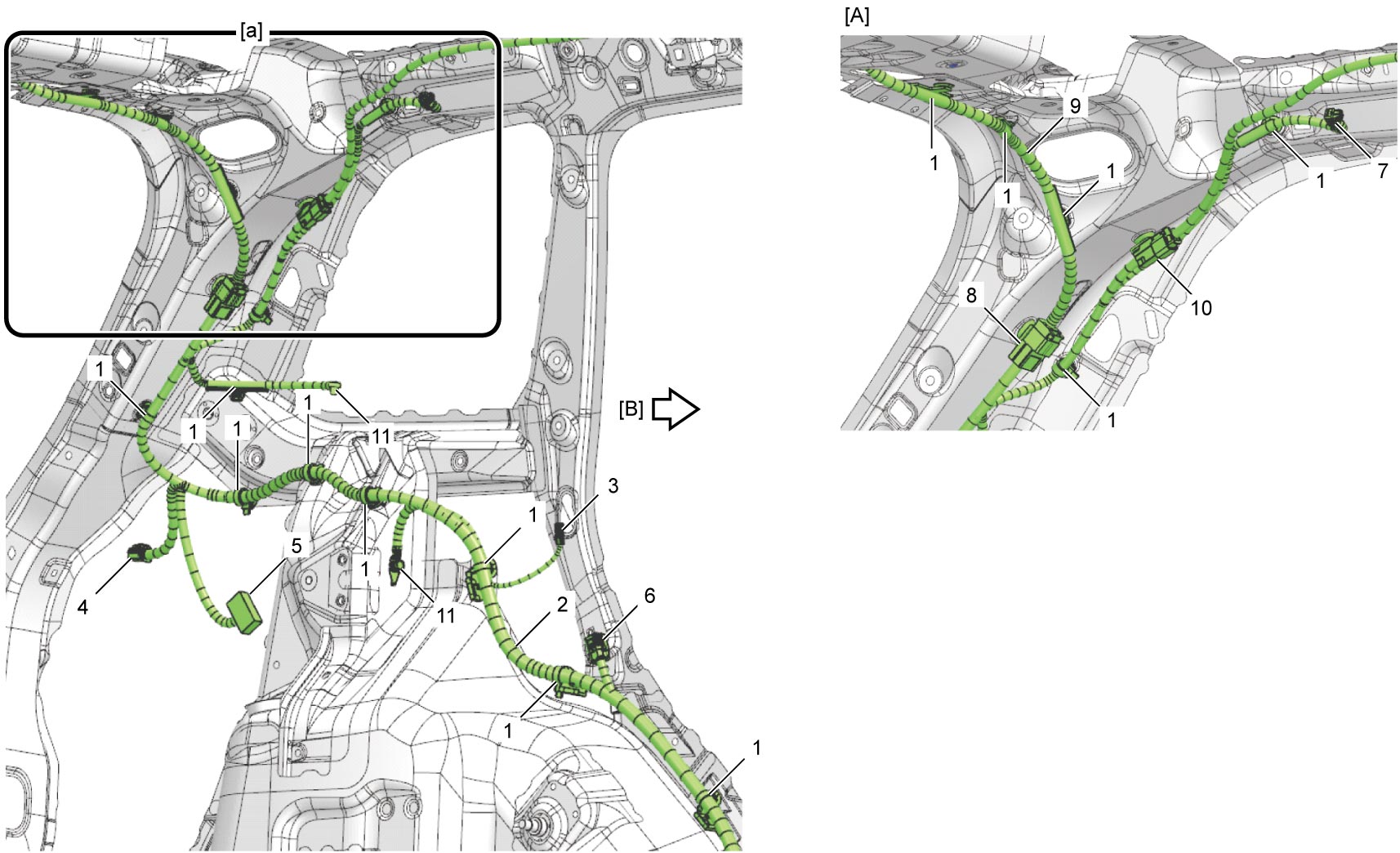

| [A]: | Detail [a] | 4. | Rear combination light (L) | 9. | Rear end door harness |
| [B]: | Forward | 5. | 4WD control module (4WD model) | 10. | To rear roof wire (L) |
| 1. | Clamp | 6. | RHD: Passenger-side rear side-impact sensor LHD: Driver-side rear side-impact sensor |
11. | RHD: Passenger-side rear side-air bag (inflator) module LHD: Driver-side rear side-air bag (inflator) module |
| 2. | Floor harness | 7. | RHD: Passenger-side curtain air bag (inflator) module LHD: Driver-side curtain air bag (inflator) module |
12. | GND bolt |
| 3. | Rear door switch (L) | 8. | To rear end door harness |
