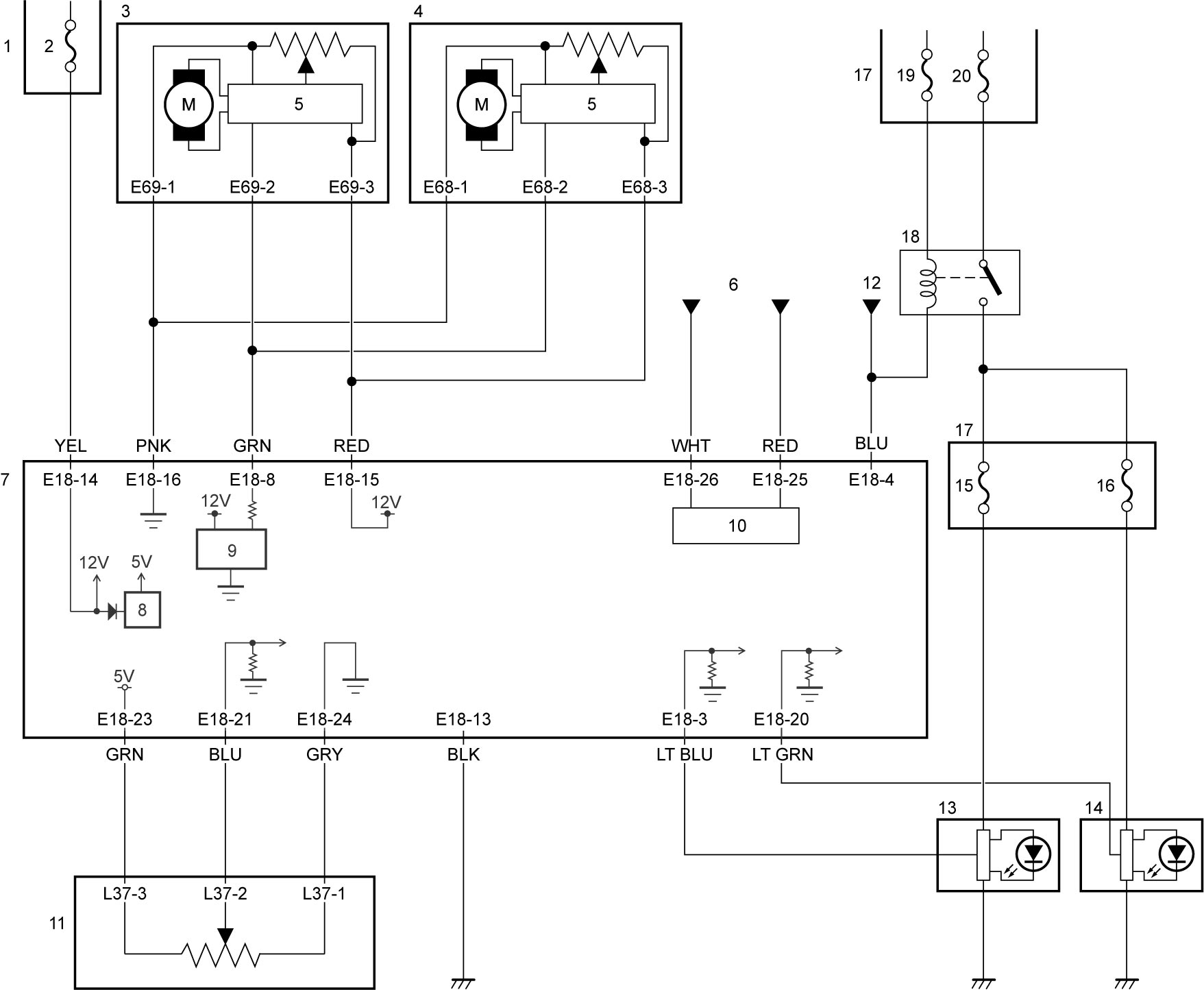

Headlight Auto Leveling Control Module Circuit Diagram (LED Headlight Model)
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
| 1. | J/B | 8. | Voltage regulator circuit | 15. | “H/L L” fuse |
| 2. | “BACK” fuse | 9. | Output circuit | 16. | “H/L R” fuse |
| 3. | Headlight leveling actuator (L) | 10. | CAN driver | 17. | Relay box No.1 |
| 4. | Headlight leveling actuator (R) | 11. | Rear vehicle height sensor | 18. | Headlight LO relay |
| 5. | Control circuit | 12. | To lighting switch | 19. | “H/L 2” fuse |
| 6. | To each control module | 13. | LED headlight (L) | 20. | “H/L” fuse |
| 7. | Headlight auto leveling control module | 14. | LED headlight (R) |
