Lighting System Component Location
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)

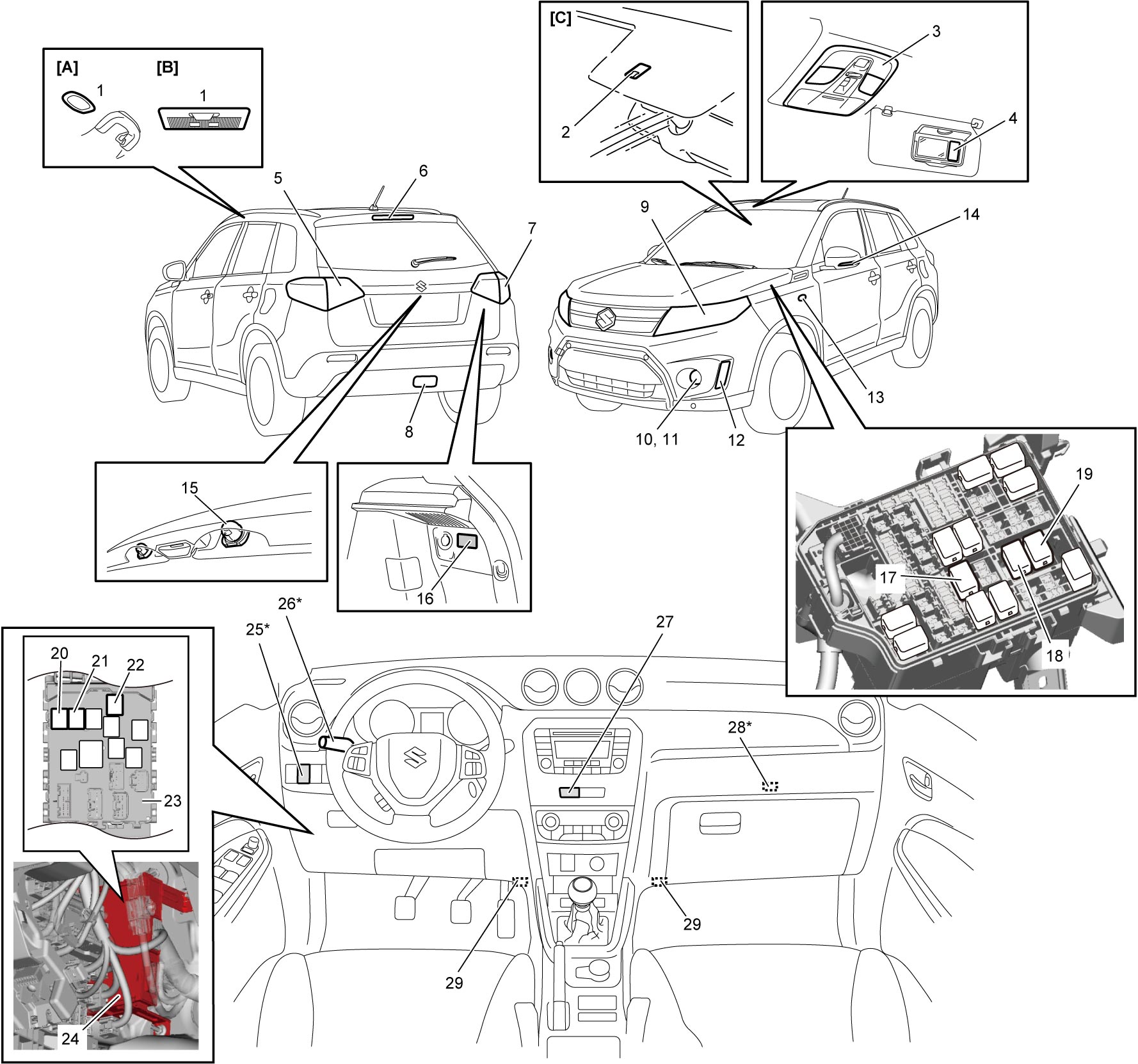

NOTE:
The figure shows LHD. For RHD, parts with asterisk (*) are installed at the opposite side.
| [A]: | Sun roof model | 9. | Headlight unit | 20. | DRL relay (if equipped) |
| [B]: | Non-sun roof model | 10. | Front fog light (if equipped) | 21. | Rear fog light relay (if equipped) |
| [C]: | LED headlight model | 11. | DRL (if equipped) | 22. | Tail light relay |
| 1. | Dome light | 12. | LED DRL (if equipped) | 23. | J/B |
| 2. | Rain / light sensor | 13. | Side turn signal light (if equipped) | 24. | BCM |
| 3. | Spot light | 14. | Door mirror turn signal light (if equipped) | 25. | Front fog light switch (if equipped) |
| 4. | Vanity light (if equipped) | 15. | License plate light | 26. | Lighting and turn signal switch |
| 5. | Back up light | 16. | Luggage compartment light (if equipped) | 27. | Hazard warning switch |
| 6. | High mount stop light | 17. | Front fog light relay (if equipped) | 28. | Glove box light (if equipped) |
| 7. | Rear combination light | 18. | Headlight HI relay | 29. | Foot light (if equipped) |
| 8. | Rear fog light (if equipped) | 19. | Headlight LO relay |
