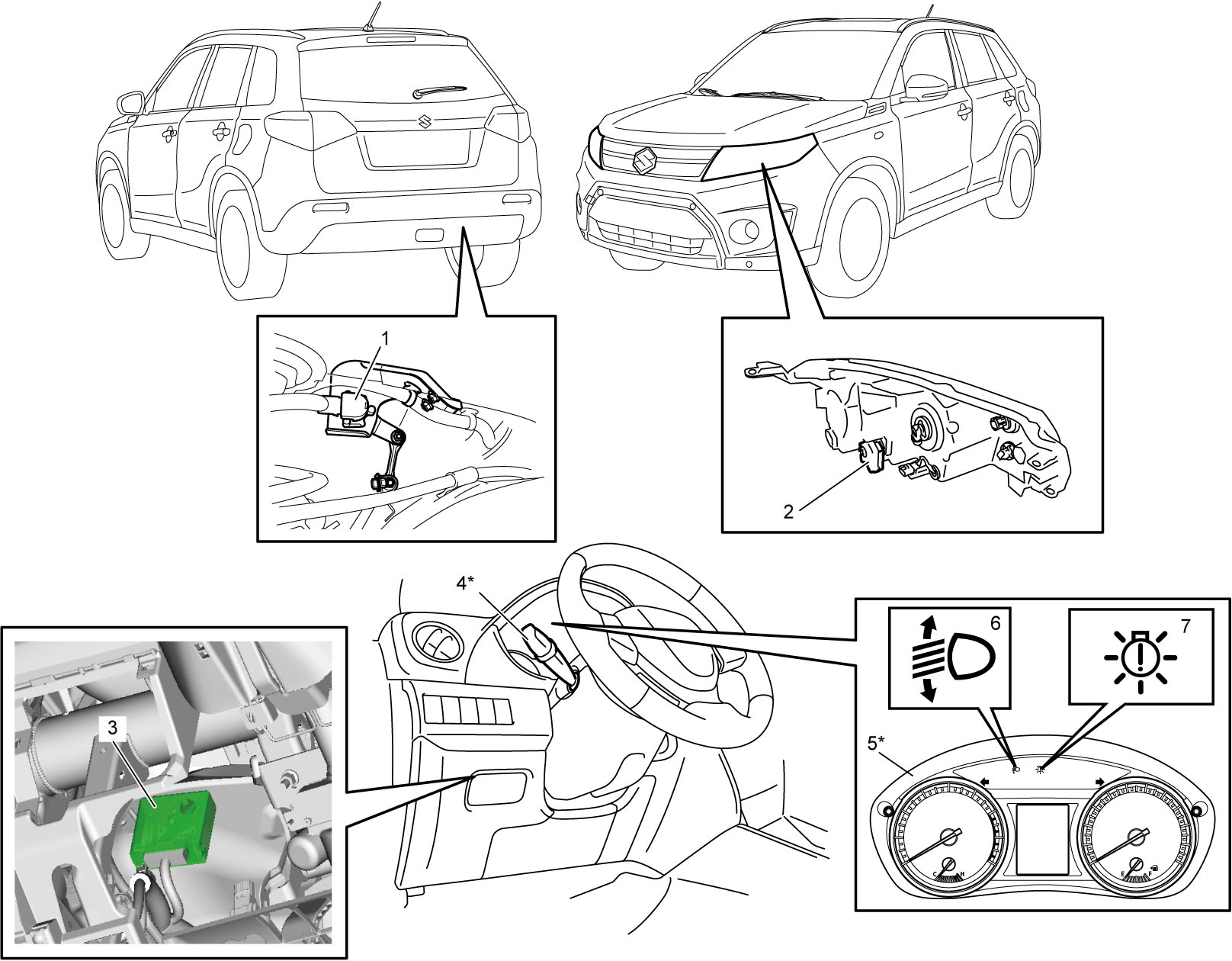

Headlight Auto Leveling System Component Location (LED Headlight Model)
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with asterisk (*) are installed at the opposite side.
| 1. | Rear vehicle height sensor | 4. | Lighting and turn signal switch | 7. | LED headlight warning light |
| 2. | Headlight leveling actuator | 5. | Combination meter | ||
| 3. | Headlight auto leveling control module | 6. | Headlight auto leveling warning light |
