Rear Combination Light Removal and Installation
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
Removal

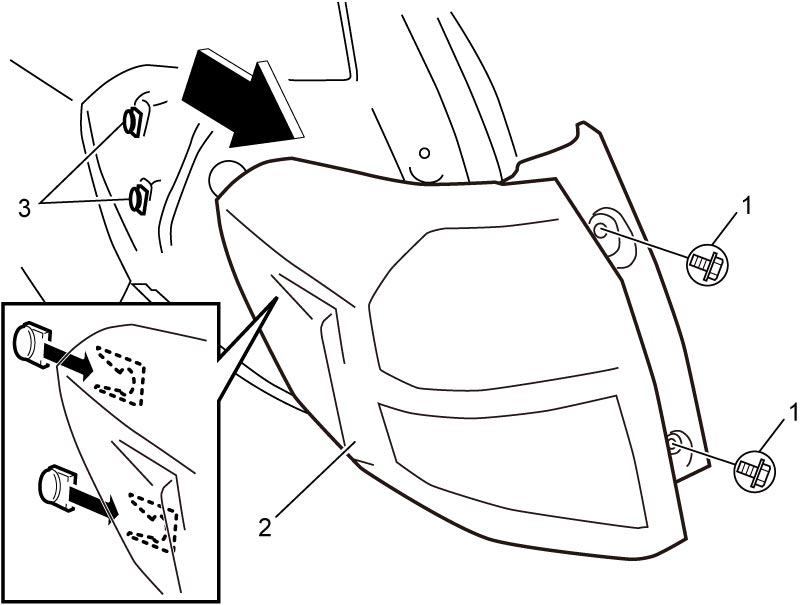

1)Remove rear combination light screws (1).
2)Pull rear combination light (2) in arrow direction shown in figure and remove rear combination light.
3)Disconnect rear combination light connector.
4)Remove bulbs, if necessary.
5)Remove grommets (3), if necessary.
Installation
Reverse removal procedure noting the following point.
•Check grommet for deterioration. Replace it if necessary.
