Back Up Light Removal and Installation
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Remove rear end door trim.

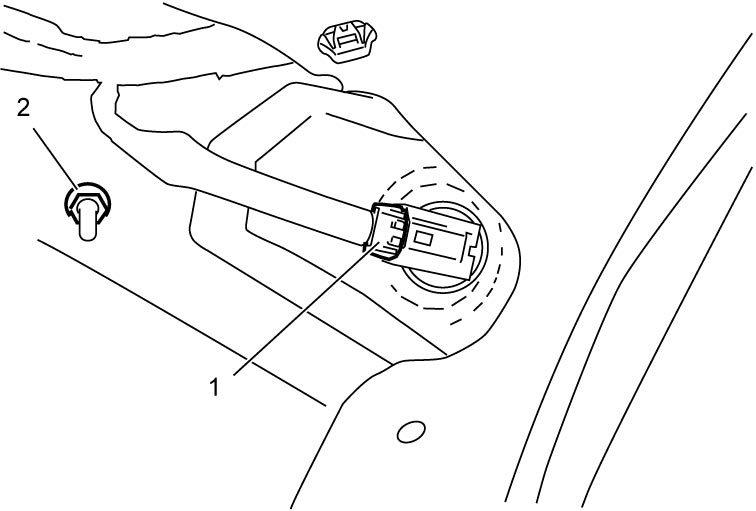

2)Disconnect back up light connector (1).
3)Turn socket counterclockwise to remove bulb, if necessary.
4)Remove back up light nut (2).

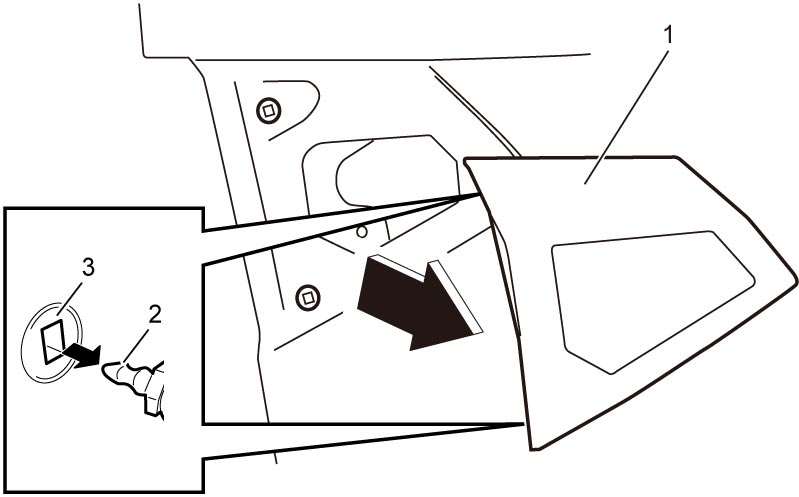

5)Pull back up light (1) in arrow direction shown in figure to disengage stud pins (2) and remove back up light.
| 3. | Grommet |
