Spot Light Removal and Installation
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
Removal

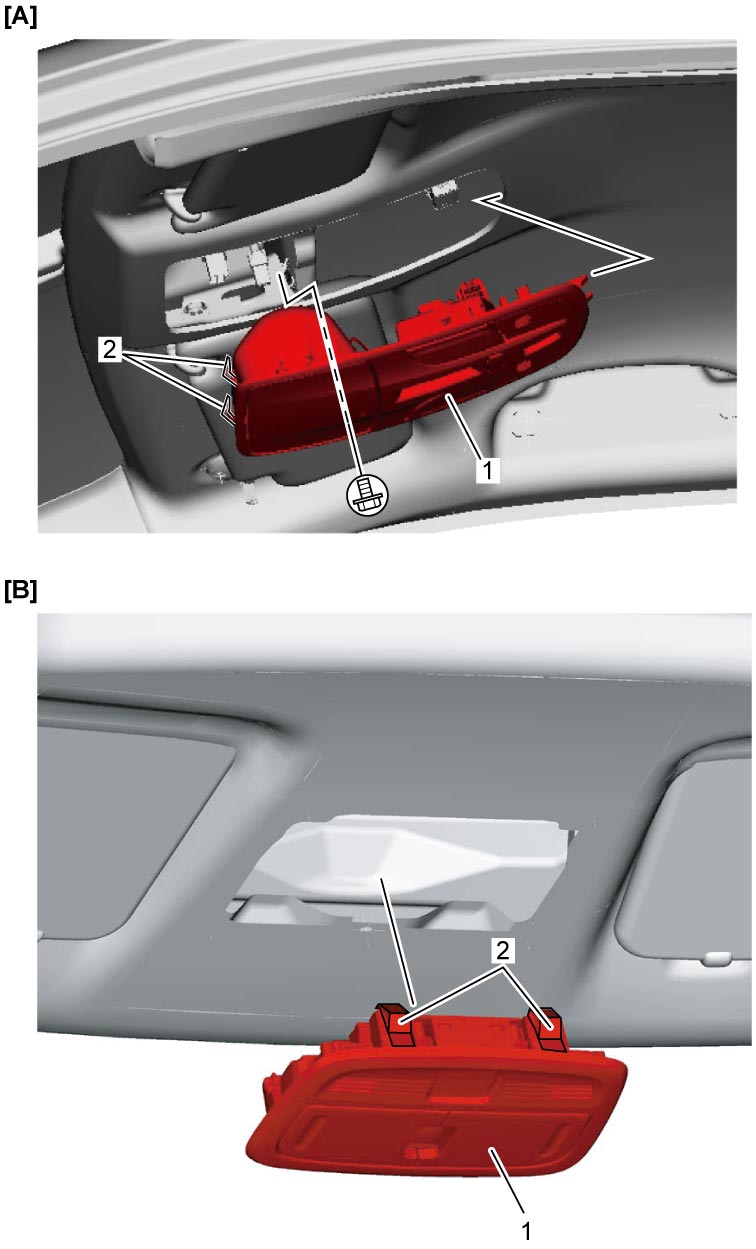

1)Remove bolt (if equipped) and remove spot light (1) while releasing locks (2).
2)Disconnect connector from spot light.
| [A]: | With overhead console | [B]: | Without overhead console |

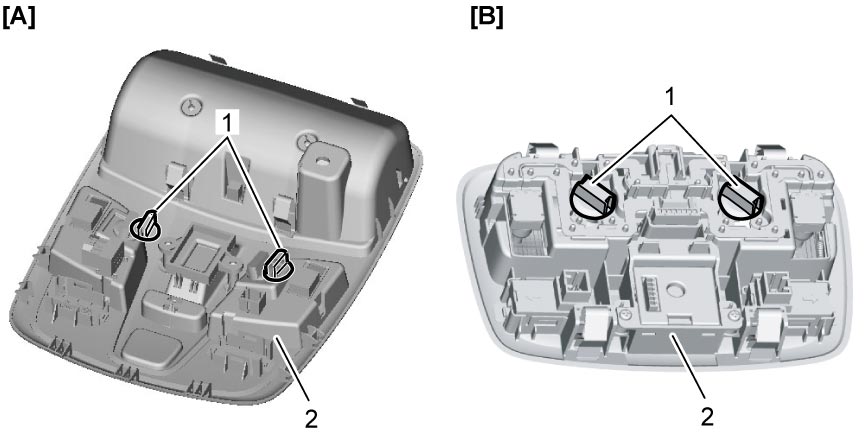

3)Remove bulb socket (1) from spot light (2), and remove bulbs.
| [A]: | With overhead console | [B]: | Without overhead console |
Installation
Reverse removal procedure.
