High Mount Stop Light Removal and Installation
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
High mount stop light bulb is LED.
Replace high mount stop light assembly if high mount stop light bulb is defective.

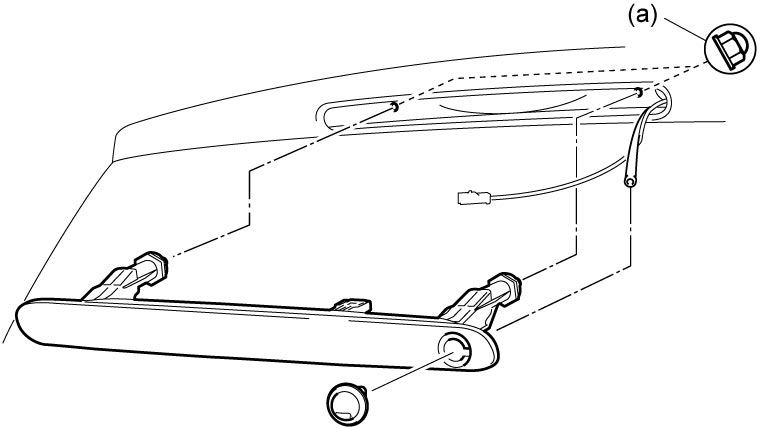

Removal

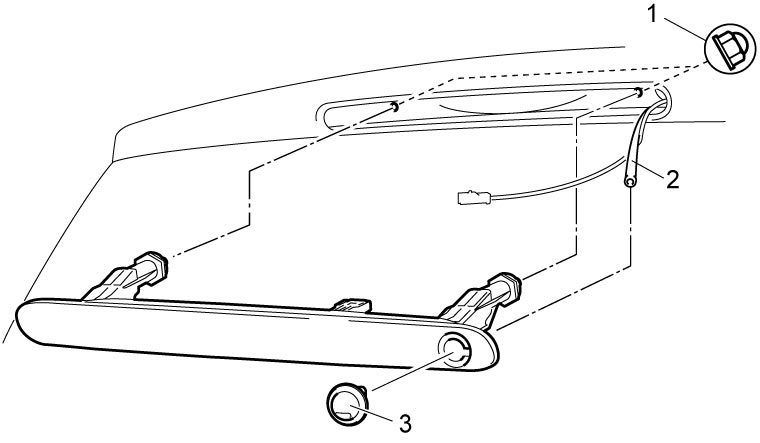

1)Remove high mount stop light nuts (1) and then remove high mount stop light.
2)Disconnect high mount stop light connector.
3)Disconnect rear washer hose (2).
| 3. | Rear washer nozzle |
