Lighting and Turn Signal Switch Removal and Installation

Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)

Removal
1)Remove steering column cover. icon

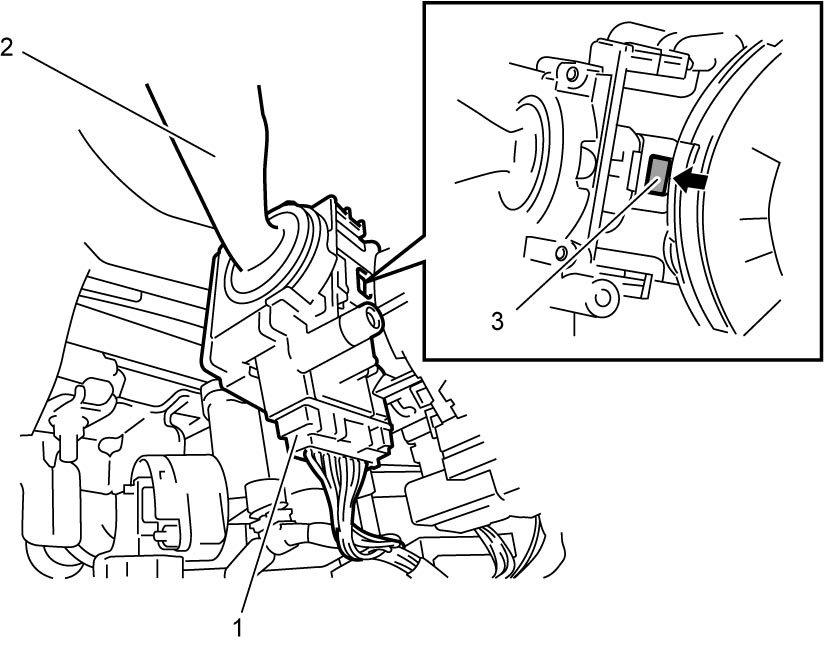

2)Disconnect lighting and turn signal switch connector (1).
3)Remove lighting and turn signal switch (2) from steering column while pushing claw (3) in arrow direction.
Installation
Reverse removal procedure.
