Hazard Warning Switch Inspection
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
Check continuity between terminals at each switch position. If check result is not as specified, replace hazard warning switch.
NOTE:
Set tester to diode range when checking continuity between terminals at each switch position.

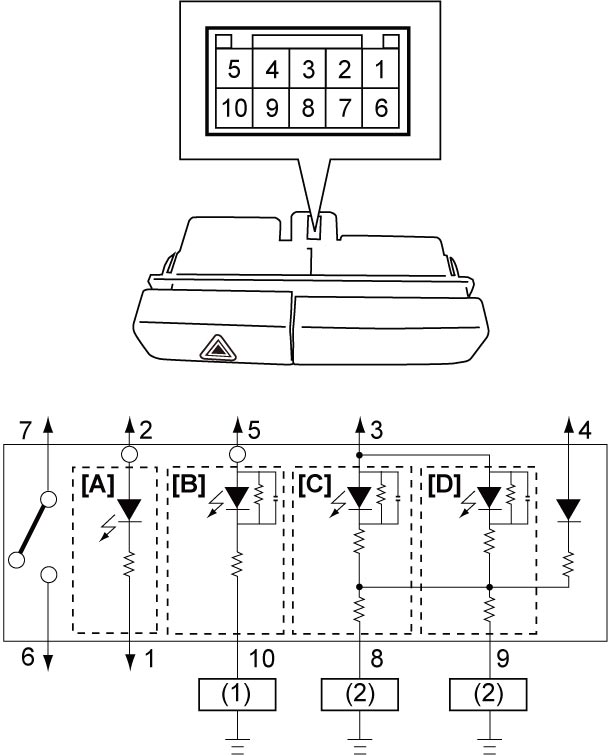

| [A]: | Illumination light | [D]: | Passenger air bag ON light (if equipped) |
| [B]: | Theft deterrent light | (1). | BCM |
| [C]: | Passenger air bag OFF light (if equipped) | (2). | SDM |

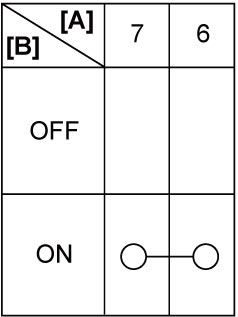

Hazard warning switch continuity
| [A]: | Terminal | [B]: | Switch position |
